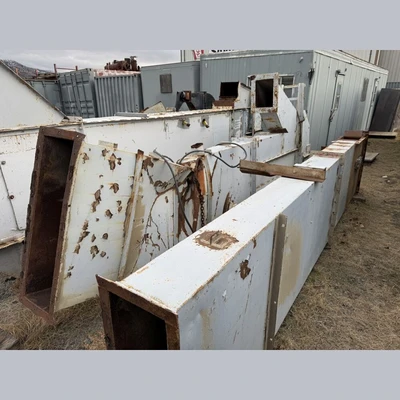

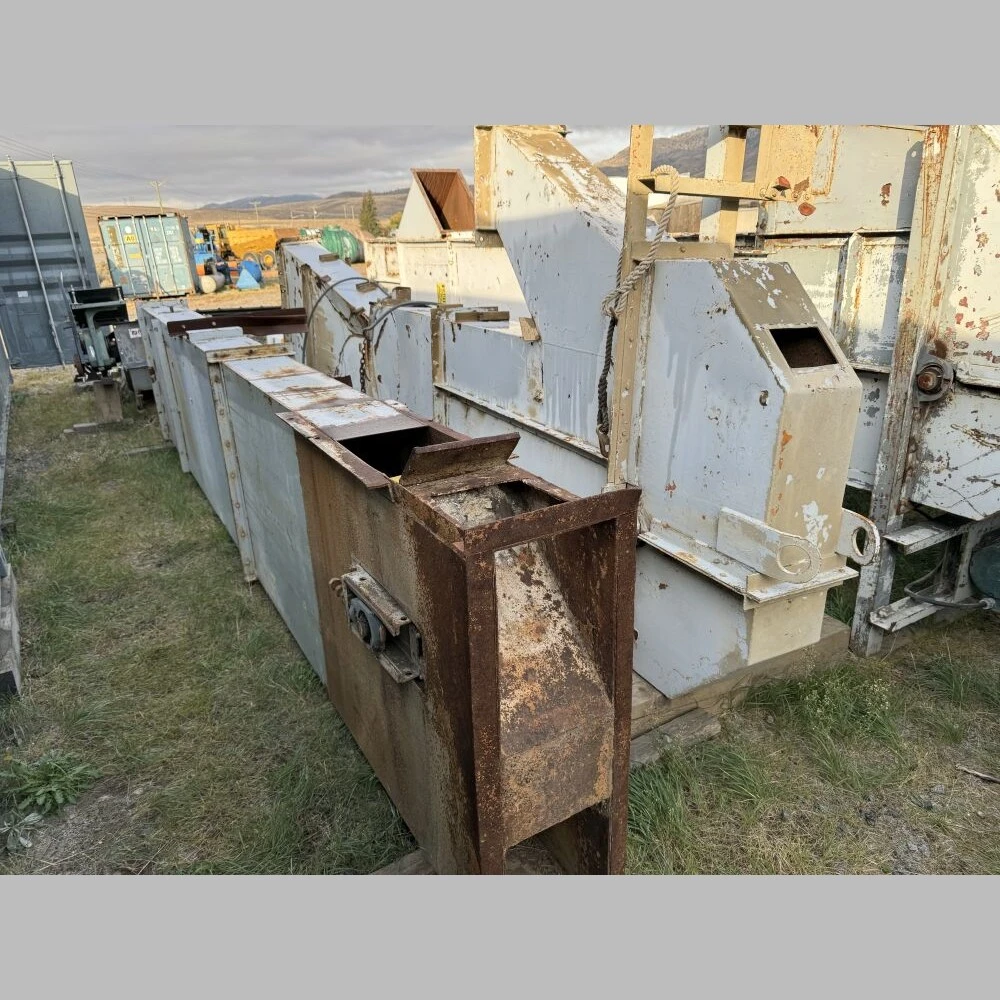

20ft Bucket Elevator
Mfg. N/A
Length - Distance Between Inlet & Discharge: 20ft
Enclosure Width: 11in
Type: Belt

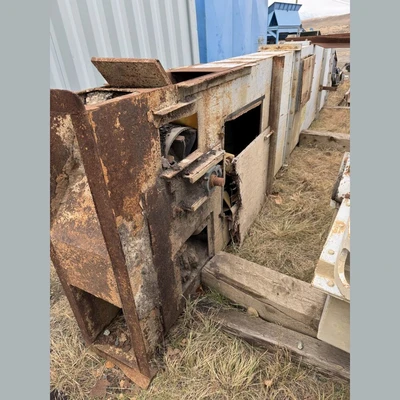

Inlet Dims: 11in x 16in
Discharge Dims: 11in x 15in
Flanged Drop Chute Attached to Discharge Approx. 18in Lower than Bottom of Main Discharge
Flanged Drop Chute Attached to Discharge Approx. 18in Lower than Bottom of Main Discharge
Base to Center of Inlet: 24in
Base to Center of Discharge: 22ft

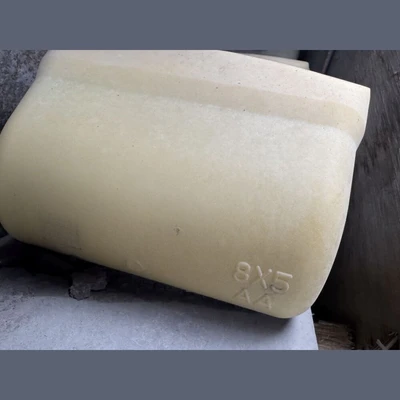

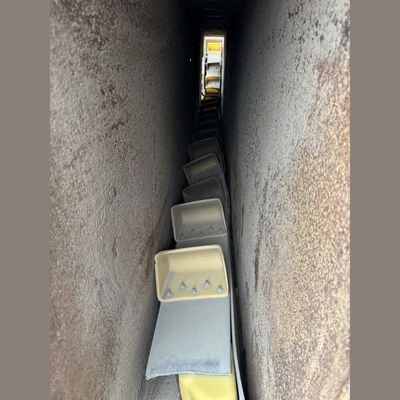

Bucket Size and Makeup: 8in x 5in Poly Buckets
Bucket Spacing: 12in
Drive: N/A

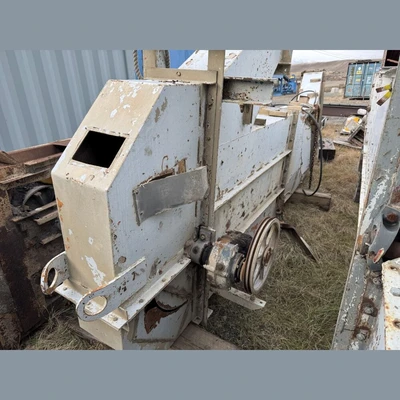

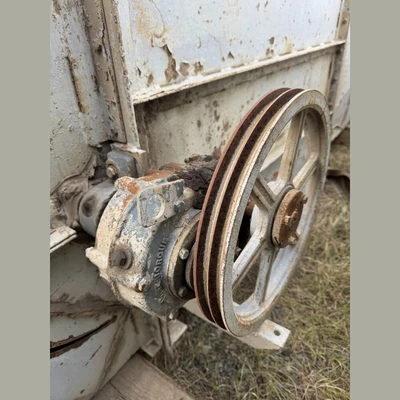

Shaft Mount Reducer
Size: PT3203S
Ratio: 15.24 - 1
Shaft Mount Reducer
Size: PT3203S
Ratio: 15.24 - 1
Size: PT3203S
Ratio: 15.24 - 1
Overall Dimensions:
Depth: 78in
Width: 33in
Height: 26.5ft
Depth: 78in
Width: 33in
Height: 26.5ft
Location: Savona, British Columbia, Canada
