USED TOSHIBA B0024FLF10MHD02

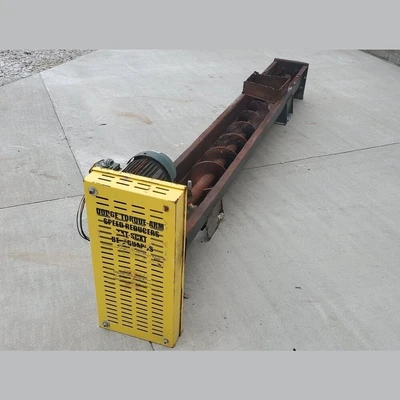

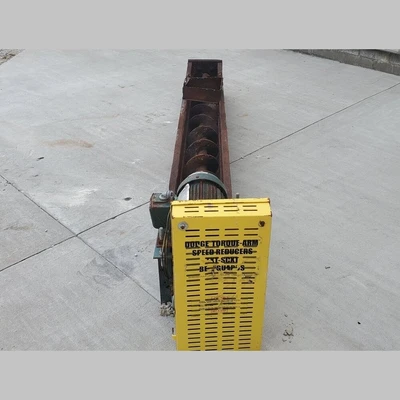

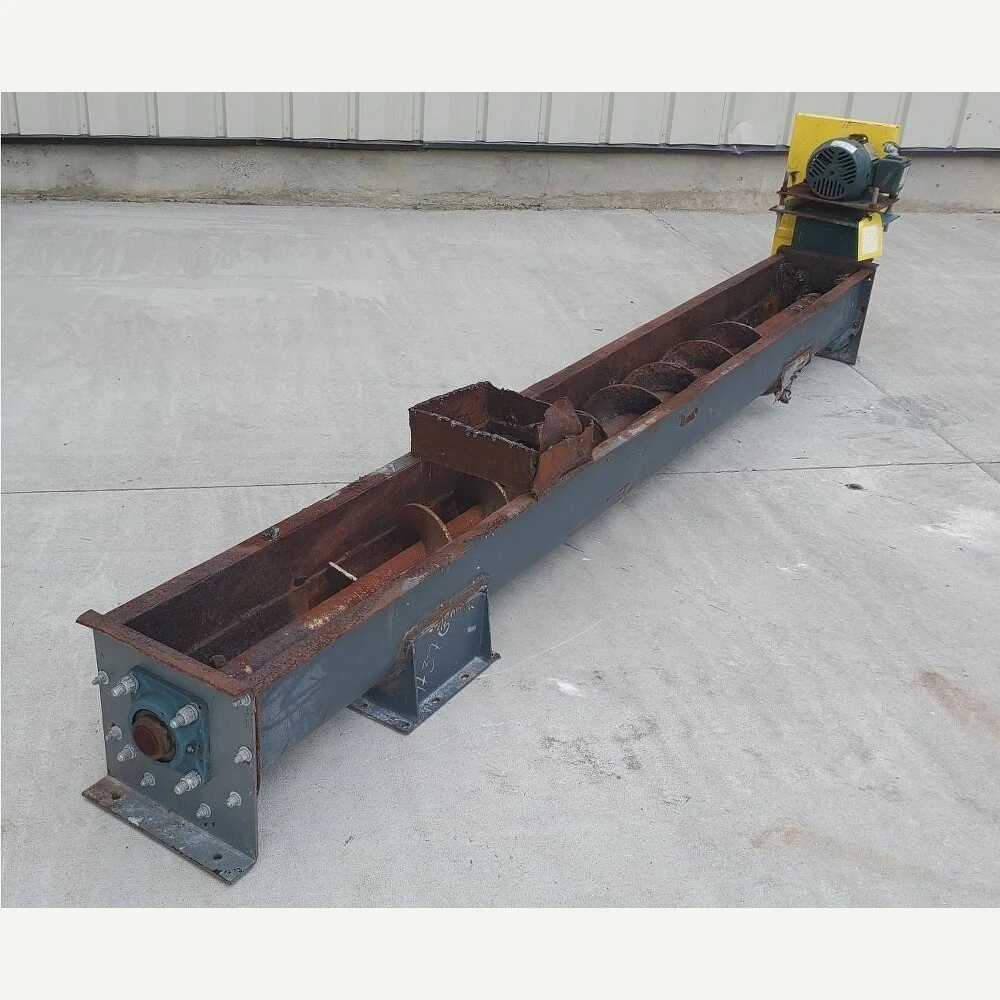

9in Dia. x 10ft Long Center-Feed Auger
Size: 9in Dia. x 10ft Long
Construction: Carbon Steel
Type: Screw Auger Conveyor
Pitch: Standard Pitch
Flighting: 3/8" Flighting

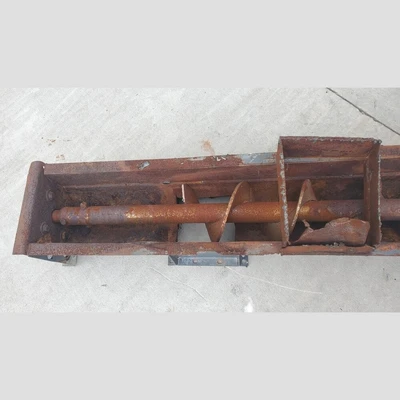

Outlets: (2) 10in x 10in Outlets, (1) on Driven End, (1) on Non-Driven End
Center of Inlet to Center of Outlet (Non-Driven End): 36in
Center of Inlet to Center of Outlet (Drive End): 44in
Center of Inlet to Center of Outlet (Non-Driven End): 36in
Center of Inlet to Center of Outlet (Drive End): 44in

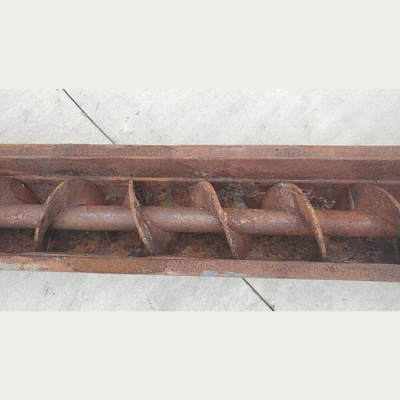

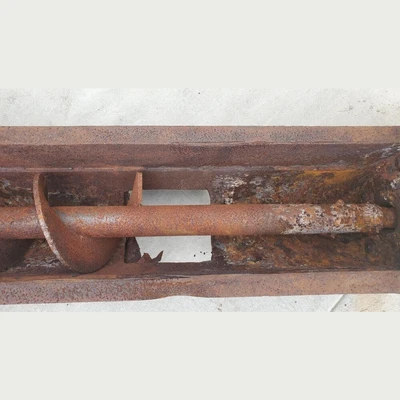

Auger Flighting is Only in the Middle 80in of Trough
Current Auger Speed: 183 RPM

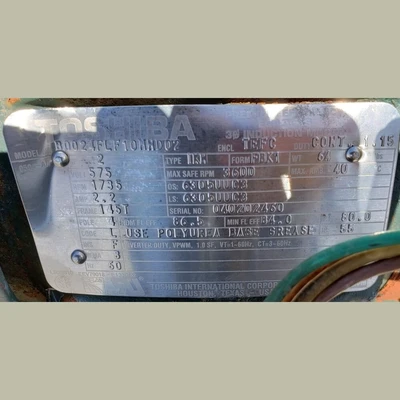

Drive: Electric Motor
Make: Toshiba
Model: B0024FLF10MHD02
Power Output: 2HP
Speed: 1735 RPM
Voltage: 575 Volt
Frequency: 60Hz
Phase: 3-Phase
Make: Toshiba
Model: B0024FLF10MHD02
Power Output: 2HP
Speed: 1735 RPM
Voltage: 575 Volt
Frequency: 60Hz
Phase: 3-Phase

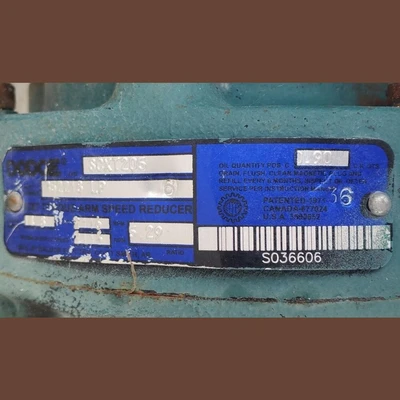

Reducer:
Make: Dodge Torque-Arm
Model: SCXT205
Make: Dodge Torque-Arm
Model: SCXT205
Location: Eastern USA
