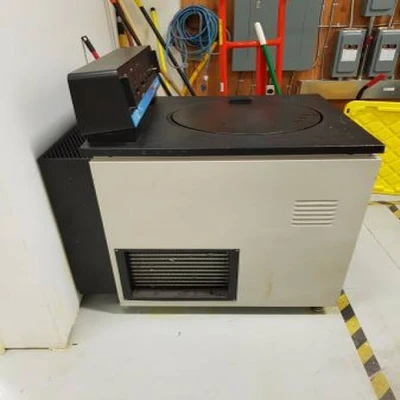

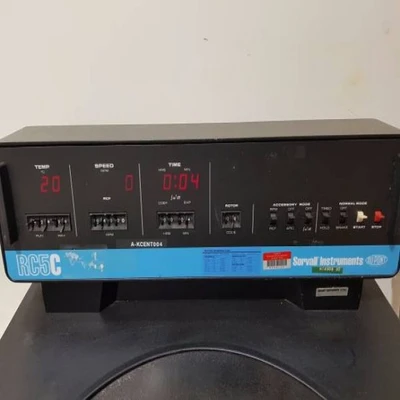

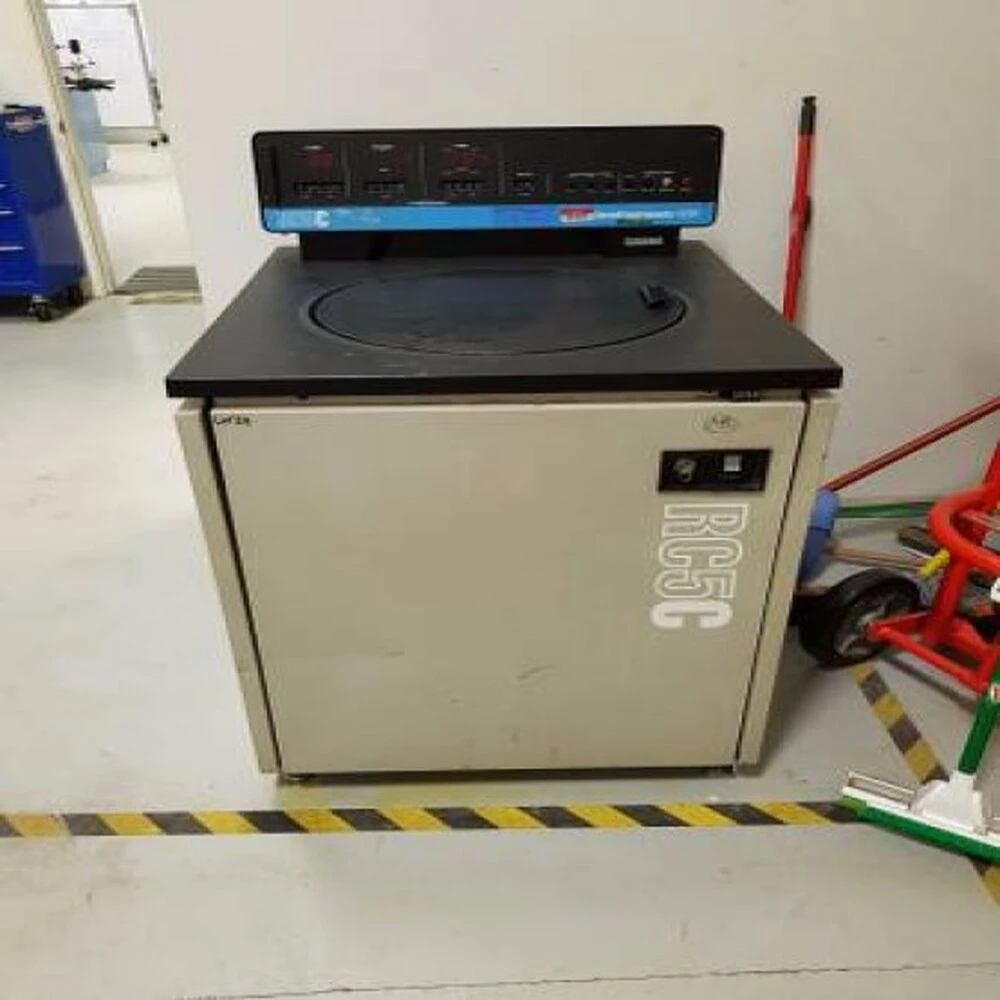

Sorvall RC-5C Superspeed Centrifuge
Overview
Specifications
Dimensions (H x W x D): 114 cm x 76 cm x 99 cm (45 in. x 30 in. x 39 in.).
Speed Selection Range: 50 to 21,000.
Speed Control Accuracy: ± 1% or 100 rpm, whichever is greater.
Maximum Relative Centrifugal Force: 51,070 g.
Temperature Selection Range: -20 to 40° C.
Temperature Control Range: +2 to =40°C.
Temperature Control Accuracy: ±1° C.
Run Time Selection Range: 0 to 99 hr, 59 min or Hold.
Ambient Temperature Range: 22
Mass (Weight): 308 kg (680 lbs).
Electrical Requirements.
Input Power (polyphase, 30 A): 220 V, 50 Hz.
Input Power (single phase, 30 A).
240 V, 50 Hz . 230 V, 60 Hz . 220 V, 50 Hz . 208 V, 60 Hz . 200 V, 60 Hz.
Heat Output: 4 kW (13,500 Btu/h).
Location: British Columbia, Canada.
Input Power (polyphase, 30 A): 220 V, 50 Hz.
Input Power (single phase, 30 A).
240 V, 50 Hz . 230 V, 60 Hz . 220 V, 50 Hz . 208 V, 60 Hz . 200 V, 60 Hz.
240 V, 50 Hz . 230 V, 60 Hz . 220 V, 50 Hz . 208 V, 60 Hz . 200 V, 60 Hz.
Heat Output: 4 kW (13,500 Btu/h).
Location: British Columbia, Canada.
