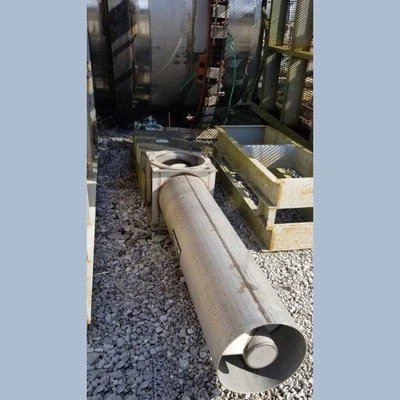

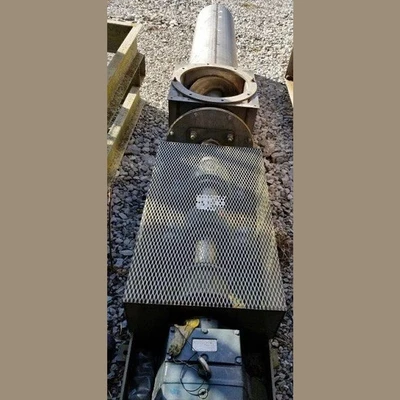

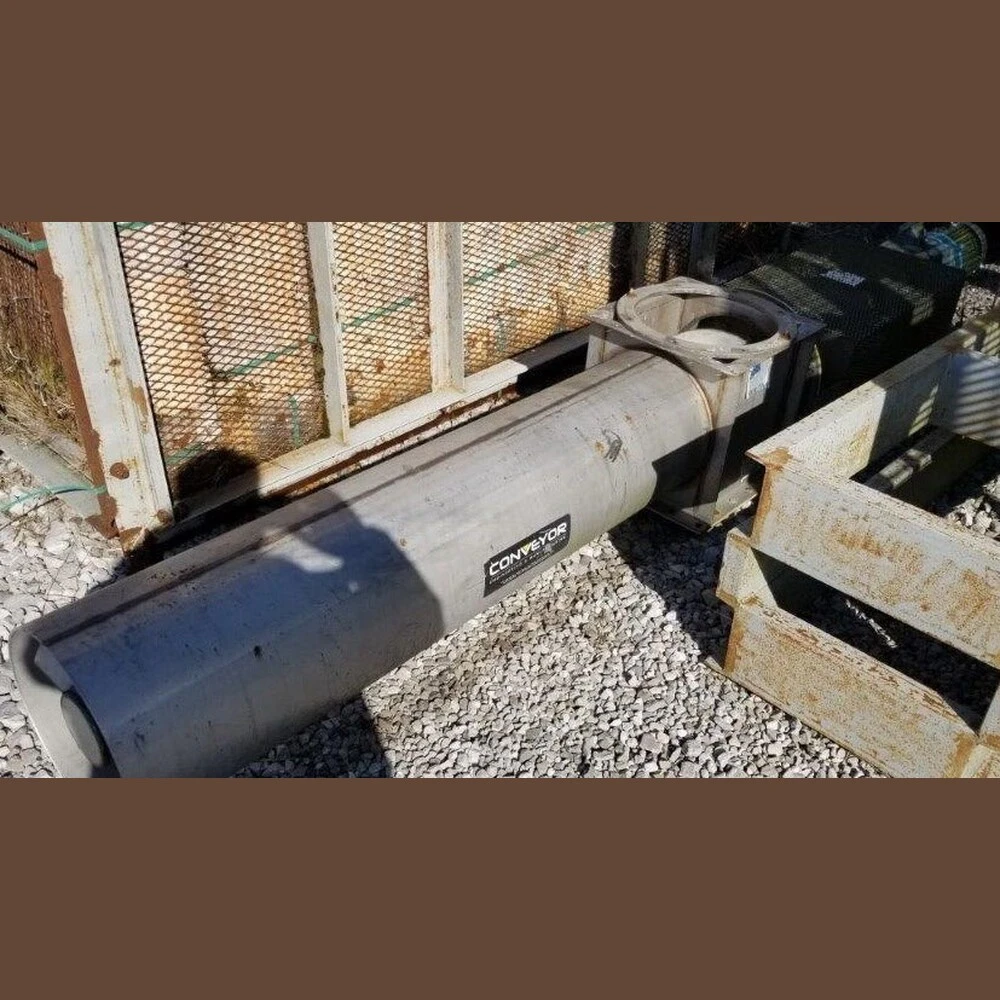

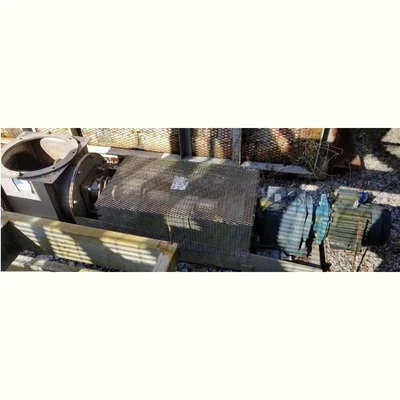

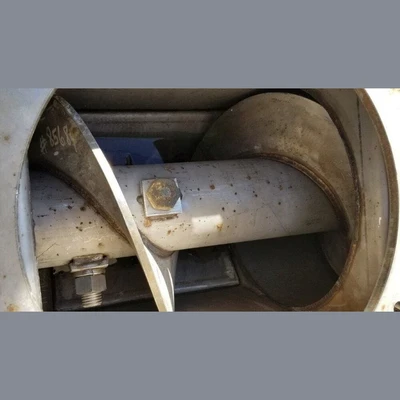

12in Dia. x 8ft Long Stainless Steel Screw Conveyor

12in Dia. x 8ft Long Stainless Steel Screw Conveyor
Make: Conveyor Systems, Cedar Rapids, IA
Year: 2015
Type: Screw Auger Conveyor
Condition: Unused Surplus
Internals Suitable for Sanitary Products
Internals Suitable for Sanitary Products
Enclosure: Tubular Shell
Configuration: Horizontal
Screws: 1 Screw
Diameter: 12in Dia.
Length: 8ft
Flites - Pitch: 12in
Trough: U-Trough
Trough has External CIP Spray Nozzles in Top Cover
Trough has External CIP Spray Nozzles in Top Cover
Conveyor Shaft: 3in Dia.

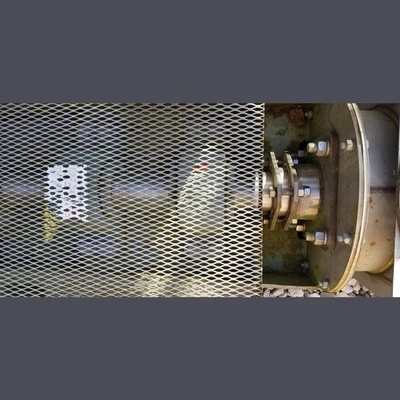

Supported by (2) Outboard Roller Bearings
Shaft Sealed at Trough Ends
Supported by (2) Outboard Roller Bearings
Shaft Sealed at Trough Ends
Conveyor Blades: 3/16in Thick Approx.
Conveyor Body has (2) Support Saddles, Extensions of the Trough Ends
Screw Construction: Stainless Steel
Trough Construction: Stainless Steel
Top Cover Construction: Stainless Steel Tubular Shell

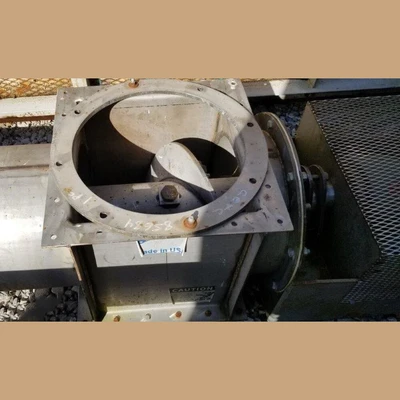

Inlet Connections: 2ft x 2ft Flanged - Drive End
Discharge Connections: Flanged

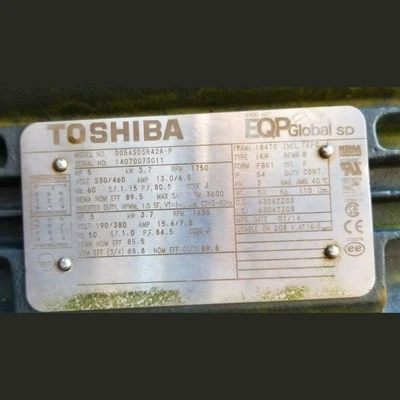

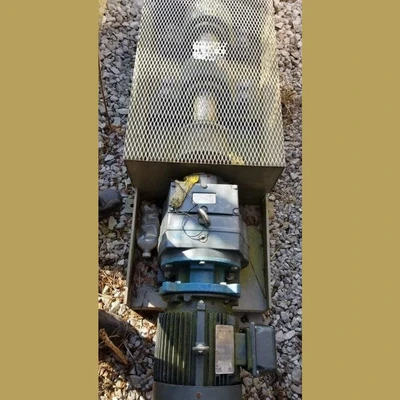

Drive: 5HP Electric Motor
Voltage: 230/460 Volt
Rotating Speed: 30 RPM (Approx. TBD)
Frequency: 60Hz
Phase: 3-Phase
Reducer: Dodge Shaft-Mount Reducer - Output 73 RPM, Inline Direct Coupled. Belt Drive to Rotor
Voltage: 230/460 Volt
Rotating Speed: 30 RPM (Approx. TBD)
Frequency: 60Hz
Phase: 3-Phase
Reducer: Dodge Shaft-Mount Reducer - Output 73 RPM, Inline Direct Coupled. Belt Drive to Rotor
Shipping Dimensions:
Length: 15ft
Width: 2ft
Height: 2ft
Weight: 1,500 Lbs.
Length: 15ft
Width: 2ft
Height: 2ft
Weight: 1,500 Lbs.
Location: Mid-West USA
