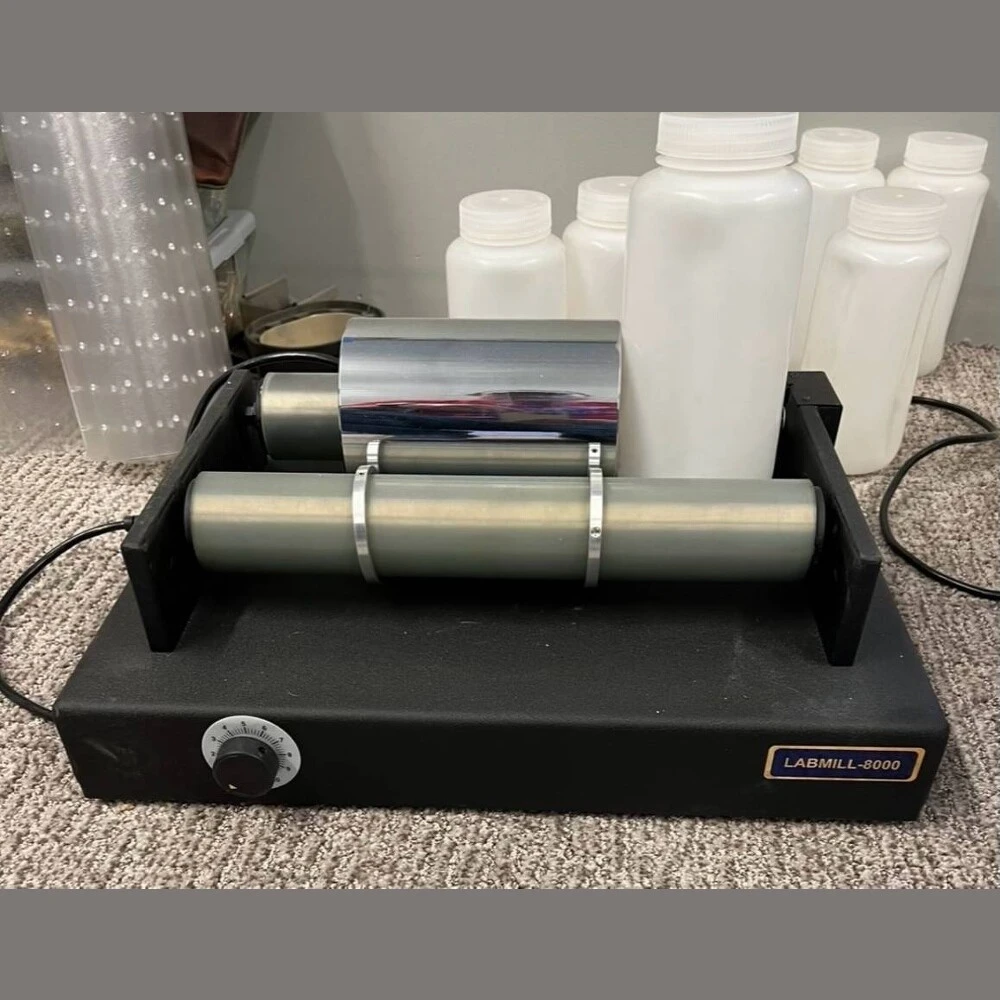

Lab Mill 8000 Jar Mill
Make: Lab Mill
Model: LC-88
Type: Lab Jar Mill
Style: Benchtop
Condition: Used Condition

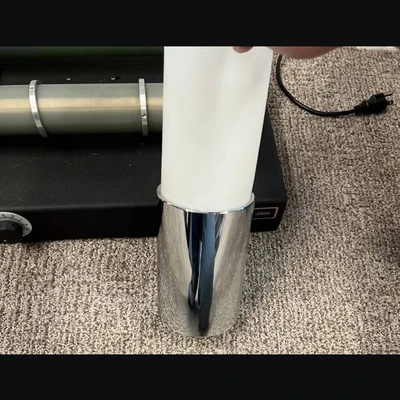

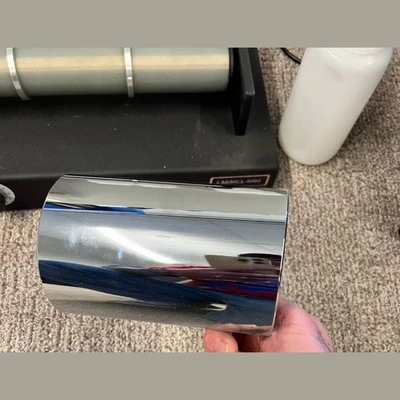

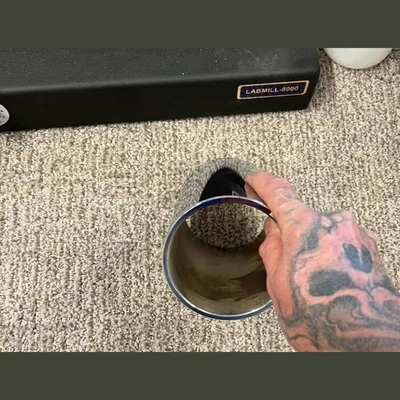

Description: Lab Mill 8000 provides smooth and quiet operation, adjusting easily for four sizes of milling jars from 0.5–10L (17–338oz). The mill can handle sample volumes from 75mL to 4L and can be handled with unattended ease. Each milling jar is held in a supporting metal sleeve for rigidity. Sleeves for 0.5 and 1L jars are stainless steel. Sleeves for larger jars are anodized aluminum. The unit also holds other grinding jars from 3–7in (75–178mm) diameter and up to 11in (279mm) wide. Disposable Grinding Jars and Metal Sleeves are available separately. A speed control switch gives 10–260rpm roller speed from the direct-drive 60 Watt DC motor.
General Model Specifications:
Maximum Particle Size: 0.04in (1mm)
Final Size: 1-50µm
Max. Feed Capacity: 4,000mL/Batch
Grinding Elements: Jars/Media
Application: Ores
Electrical: 115V, 50-60Hz, 1.1 Amps
Product Dimensions: 18in x 14in x 2.5in (457mm x 356mm x 64mm)
Estimated Shipping Weight: 35 lbs. (15.88kg)
Maximum Particle Size: 0.04in (1mm)
Final Size: 1-50µm
Max. Feed Capacity: 4,000mL/Batch
Grinding Elements: Jars/Media
Application: Ores
Electrical: 115V, 50-60Hz, 1.1 Amps
Product Dimensions: 18in x 14in x 2.5in (457mm x 356mm x 64mm)
Estimated Shipping Weight: 35 lbs. (15.88kg)
Location: Western USA
