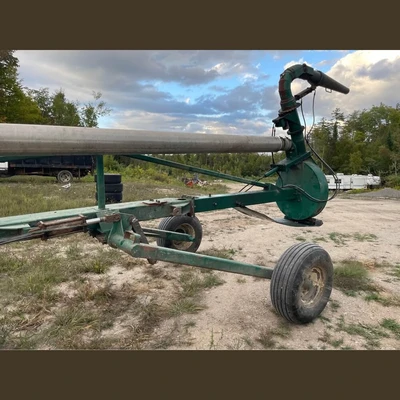

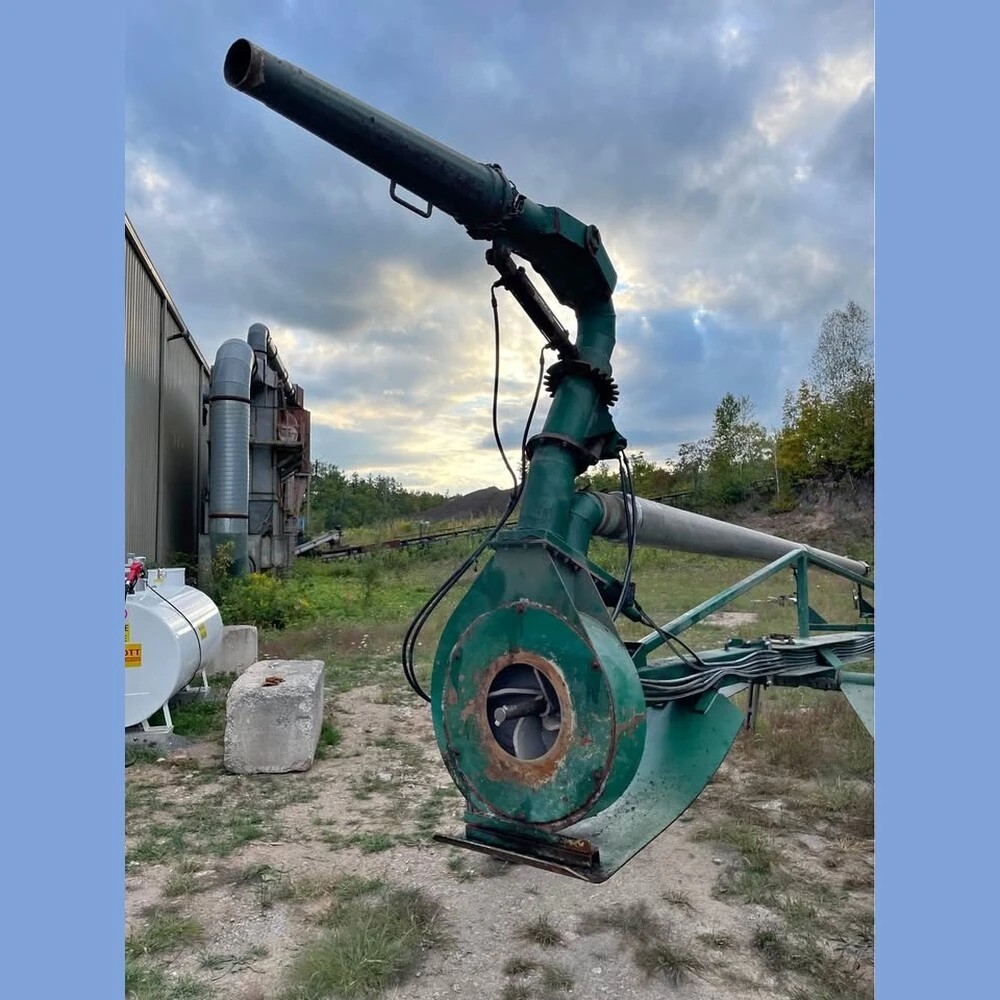

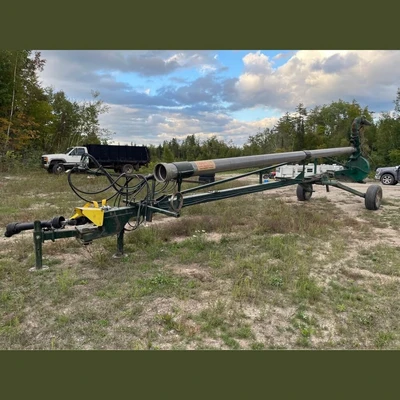

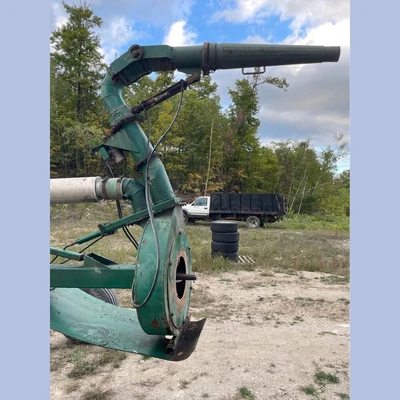

USED HUSKY FARM EQUIPMENT TIGER LAGOON PUMP

6in Husky Tiger Lagoon Pump

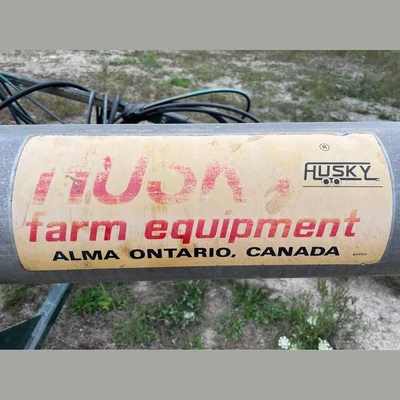

Make: Husky Farm Equipment
Model: Tiger Lagoon Pump
Type: Liquid Manure Pump
Style: Trailer Type
Condition: Used Condition
Diameter: 6in Dia.
Length: 32ft
Hitch: Clevis Type Draw Bar
RPM: 540 RPM
HP Required: 80HP
Approximate Pump Volume: 3600 GPM
PTO: Heavy-Duty Shear Protected
Max Pit Depth: Up To 10ft
Pipe Size: 6in (203mm)
Length of Discharge Pipe: 20ft (6m)
Agitator Swivel: 300° Degrees
Agitator Vertical Deflector: Yes
Agitating Spouts: 1
Agitator Spout from Floor: 40" to 72"
Top Cone Outlet Size: 4in (101mm)
Inlet Hole: 16in (400mm)
Housing Size: 30in x 38in
Impeller High Efficiency: 4 Blade
Impeller Size: 24in
Trailer Tilting: Hyd. Cylinder
Trailer Width: 94in
Tongue: Manual Adjustable
Tongue Jack: 7000 Lbs.
Stabilizer Legs: No
Valve Controls: Hydraulic
Discharge Pipe Support Leg: 12ft
Discharge Pipe Cart: Optional
Bottom Bearings: Marine Type
Shaft Size: 1.75in
Shaft Size at Pump End: 2.75in
Main Frame: 6in x 6in x 1/4in Tube
Trussing on Frame: Yes
Tire Size: 1200x15
Spindle Size: 2.25in
Single Axle: Standard
Location: Central Canada
