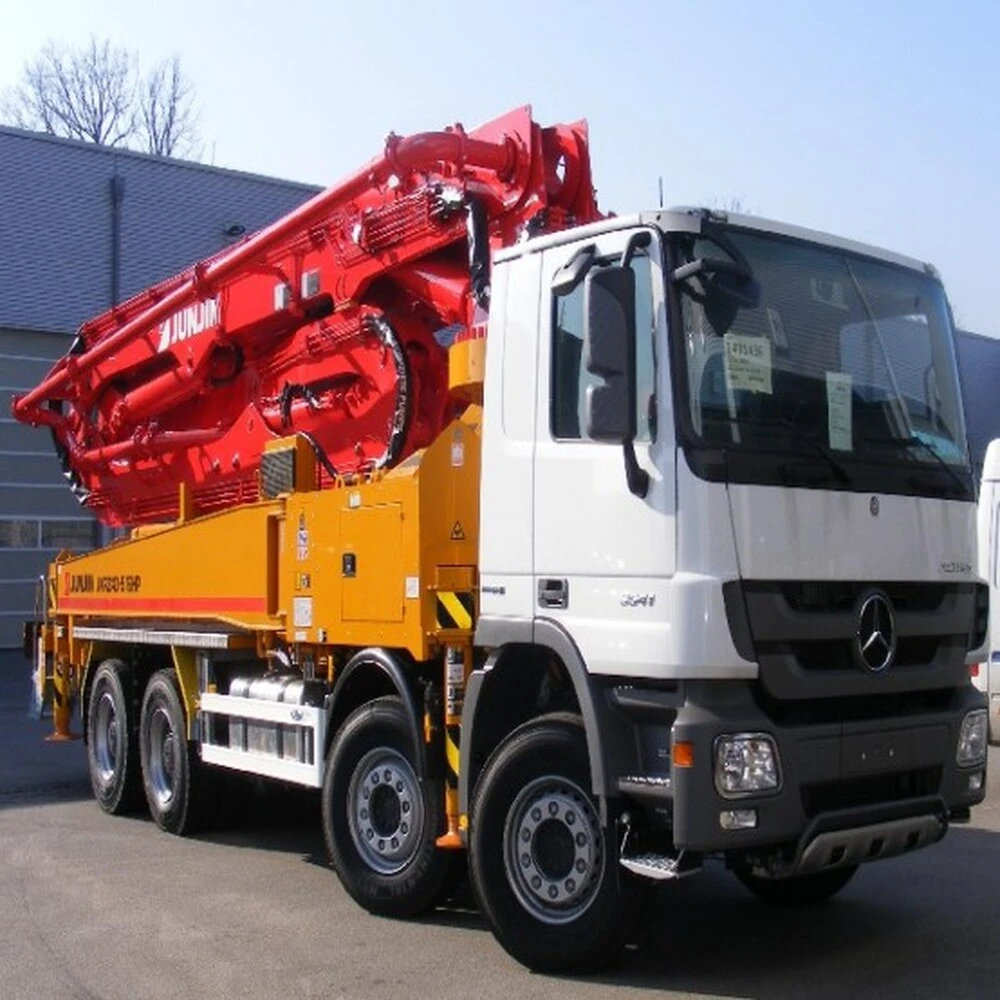

Junjin JXRZ43-5.16HP Concrete Pump Truck

Model: JXRZ43-5.16HP
43m Truck Mounted Boom Pump with
158 Output
RZ Type Boom Design
158 Output
RZ Type Boom Design
Specification:
Delivery Line: DN125/5in.
Radio Remote: Proportional Control
Wear Plate/Ring: Tungsten Carbide
Water Pump: 20 Bar
Water Tank: 500 L
Auto Lubrication Hydarulic Grease, Hopper
Delivery Line: DN125/5in.
Radio Remote: Proportional Control
Wear Plate/Ring: Tungsten Carbide
Water Pump: 20 Bar
Water Tank: 500 L
Auto Lubrication Hydarulic Grease, Hopper
Pump Specification:
Rod: 158 H
Piston: 98 H
Pressure:
Rod: 72 Bar
Piston: 115 Bar
Stroke Length: 2100mm
S-Valve: 8in. x 7in.
Main Oil Pump: Rexroth Hydromatic
System Pressure: 350 Bar
Switching Type: Hydraulic
Hopper Capacity: 600 L
Rod: 158 H
Piston: 98 H
Pressure:
Rod: 72 Bar
Piston: 115 Bar
Stroke Length: 2100mm
S-Valve: 8in. x 7in.
Main Oil Pump: Rexroth Hydromatic
System Pressure: 350 Bar
Switching Type: Hydraulic
Hopper Capacity: 600 L
Rod: 72 Bar
Piston: 115 Bar
Stroke Length: 2100mm
S-Valve: 8in. x 7in.
Main Oil Pump: Rexroth Hydromatic
System Pressure: 350 Bar
Switching Type: Hydraulic
Hopper Capacity: 600 L
Boom
Number of Booms: 5 Section
Folting Type: R&Z
Vertical Height: 42.5m
Horizontal Height: 38.5m
Unfolding Height: 8.8m
End-Hose Length: 4.0m
1st Section: 8.4m
2nd Section: 7.0m
3rd Section: 6.9m
4th Section: 7.9m
5th Section: 8.3m
Number of Booms: 5 Section
Folting Type: R&Z
Vertical Height: 42.5m
Horizontal Height: 38.5m
Unfolding Height: 8.8m
End-Hose Length: 4.0m
1st Section: 8.4m
2nd Section: 7.0m
3rd Section: 6.9m
4th Section: 7.9m
5th Section: 8.3m
Location: Asia
