USED PM NOT SPECIFIED

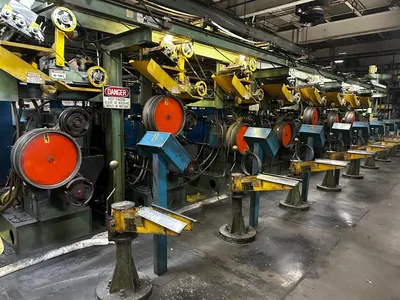

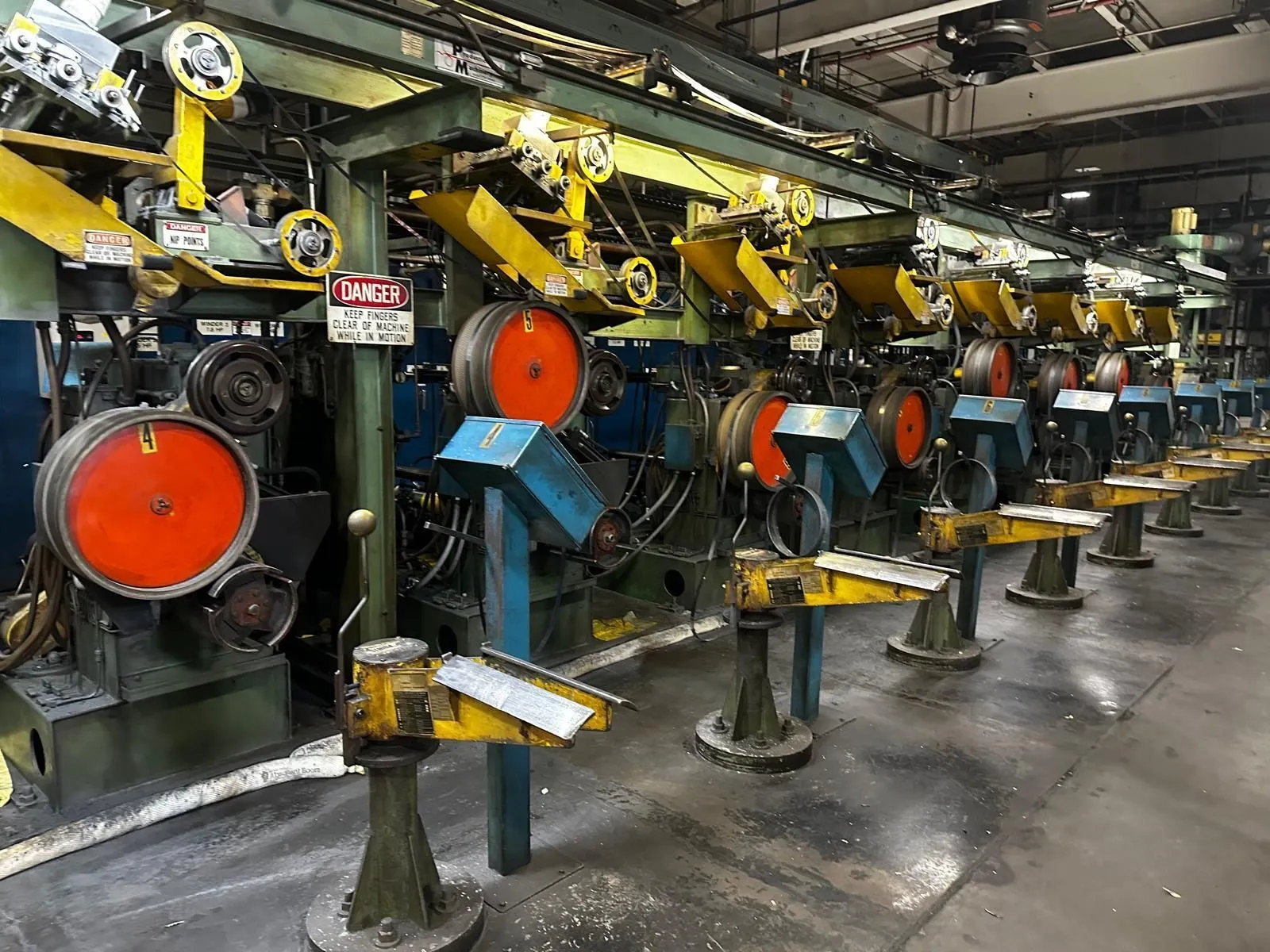

18" x .025" PM / Andritz Oscillating Slitting Line with 12 Recoilers

Material: 1095 High Carbon Steel
Tensile Strength: 120,000 PSI
Shear Strength: 96,000 PSI
Thickness Range: .0045" - .025"
Line Direction: Left to Right

Cut Width & Thickness
.0045" = 1/4" , 3/8" , 1/2" , 3/4" , 1"
.0051" = 3/8" , 1/2" , 5/8" , 7/8"
.0062" = 3/8"

Line Speed: 1500 FPM

Entry Strip Width: 18"
Traverse Wider Coil Width: 8"

Entry Coil ID: 15" - 22"
Traverse Winder Coil ID: 11"
Exit Coil ID: 16"

Entry Coil OD: 54"
Ribbon Wound Coil OD: 39"
Exit Coil OD: 54"

Entry & Exit Coil Weight: 10,000#
Traverse Winder Coil Weight: 2250#

Complete Line With:
- Mandrel Uncoiler
- Peeler Table / Deflector Roll
-Newcor Welder
- Andritz Slitter Head: 5" Diameter Arbors
(Rebuilt Head in December 2025)
- Approximately 18 Sets of Quick Change Tooling Arbors
- Scrap Baller
- Recoiler
- 1 Arm Exit Turnstile
- Vertical Strand Separator
- 12 Oscillating Recoilers
- 1 Arm Exit Turnstiles
- Powerflex Digital Drives 755
- Allen Bradley PLC
- Central Hydraulic Units
- Operator Push Button Stations
- Slitter Tooling
- Hydraulics & Electrics
-Spare Parts
-Steel Cores
