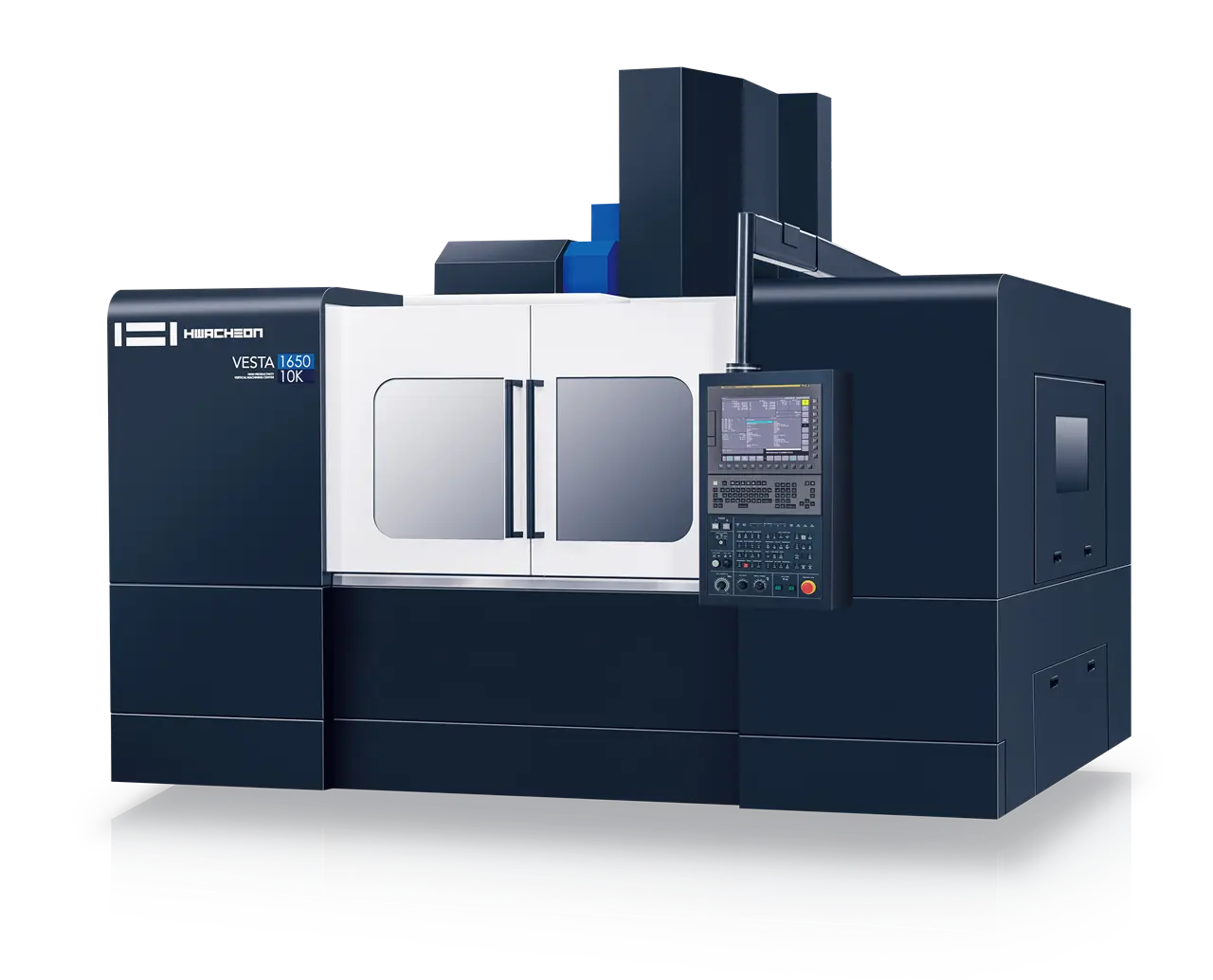

NEW HWACHEON VESTA 1650

Specifications (subject to buyer verification):
Travel:
X-axis Stroke: 1,650 mm
Y-axis Stroke: 750 mm
Z-axis Stroke: 675 mm
Distance from Table Surface to Spindle Gauge Plan: 150 ~ 825 mm

Table:
Working Surface: 1,700 x 750 mm
Table Loading Capacity: 1,500 kgf
Table Surface Configuration (T slots W x P – No. of slots): 18 x 100 mm / 7ea

Spindle:
Max Spindle Speed: 12,000 RPM
Spindle Motor: 18.5 / 11 kW
Type of Spindle Taper Hole: ISO#40, ​7/24 Taper (BT-40)
Spindle Bearing Inner Diameter: Ø70 mm
Type of Spindle: Direct-Coupled
Method of Spindle Lubrication: Air-Oil
Method of Spindle Cooling: Jacket Cooling (Oil Cooler)

Feedrate:
Rapid Traverse (X / Y / Z): 30 / 30 / 24 m/min

Motor:
Servo Motor (X / Y / Z): 3 / 3 / 3 kW
Coolant Motor (Spindle): 0.4 kW
Spindle Cooler (50/60Hz): 2.8 / 3.2 kW

ATC:
Type of Tool Shank: BT-40 (Opt.: CAT-40 / SK-40)
Type of Pull Stud: MAS P40T-1 (45˚)
Tool Storage Capacity: 30 (Opt.: 40 / 60)
Max. Tool Diameter (with / without Adjacent Tools): Ø78 / Ø150 mm
Max. Tool Length: 300 mm
Max. Tool Weight: 8 kgf
Method of Tool Selection: Memory Random

Power Sources:
Electric Power Supply: 45 kVA
Compressed Air Supply (Pressure x Consumption): 0.5~0.7MPa x 690Nℓ/min

Tank Capacity:
Spindle Cooling / Lubrication: 20 / 6 ℓ
Coolant: 500 ℓ

Machine Size:
Height: 3,180 mm
Floor Space (L x W): 4,200 x 4,264 mm
Weight: 12,000 kgf

Equipped With (subject to buyer verification):
Fanuc 0i-MF Plus Controller
