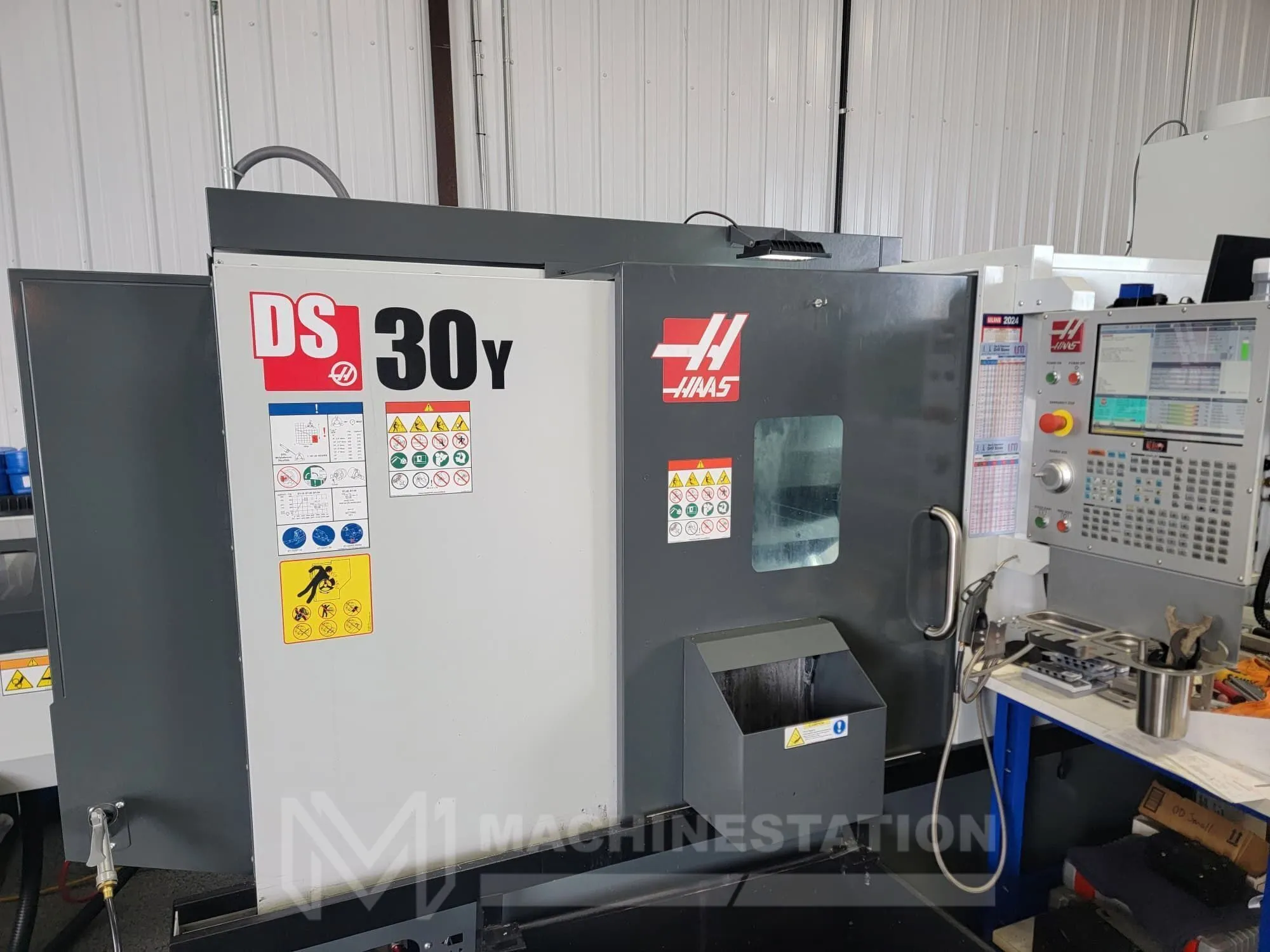

USED 2023 HAAS DS-30Y

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:
Haas CNC Control
232 Hours Cutting Time
Rigid Tapping
Spindle Orientation
Visual Part Programming System & User-Definable Macro
Media Display
1 GB Max Memory
Compensation Tables
Wireless Networking

Capacity:
Max Turning Diameter : 13.75″
Max Swing Over Bed : 21.0″
Max Turning Length: 32.5″
Max Bar Capacity : 3.0″

Travels:
X Axis Travel : 9.4″
Y Axis Travel : ± 2.0″
Z Axis Travel : 32.5″
C Axis : 0.01 °

Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 945 IPM

Main Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 4500 RPM
Spindle Motor: 30 HP

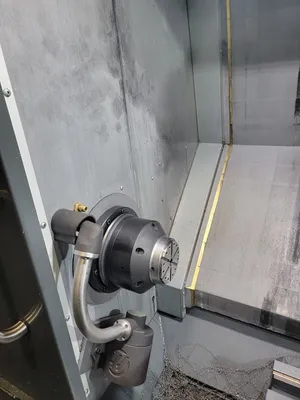

Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.31″
Spindle Speed: 4000 RPM
Spindle Motor: 15 HP

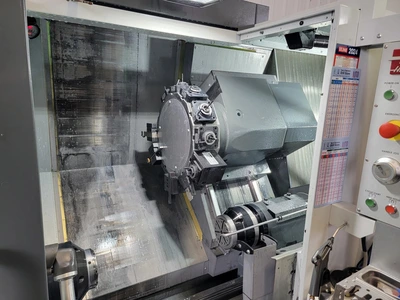

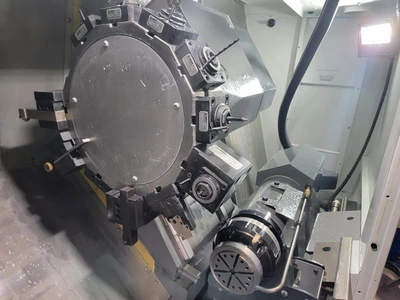

Turret:
Turret Capacity: 12 Stations – 24 Positions
Live Tool Speed: 4,000 RPM
Turret Type: BMT-65

General:
Air Required: 100 psi 4 scfm
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 170″ x 90″ x 98″ High Approx.
Machine Weight: 12,200 lbs Approx.

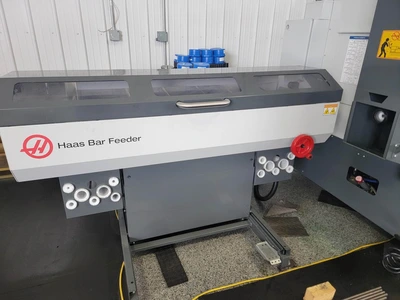

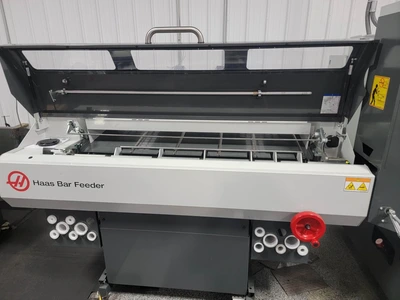

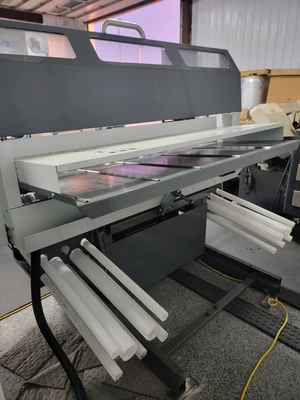

Haas Bar Feeder (Upgraded $22,095 value Included)
Sub Spindle
Chuck Air Blast (Upgraded $1,495 value Included)
12 Station Live Tool Turret – 24 Positions
C & Y Axis Capability
4,000 RPM Live Tool Spindle Speed
Tool Presetter (Upgraded $6,195 value Included)
Parts Catcher (Upgraded $3,795 value Included)
Sub Spindle Air Blast (Upgraded $1,495 value Included)
Enclosure Exhaust System (Upgraded $2,395 value Included)
High Pressure Coolant – 300 psi (Upgraded $9,195 value Included)
Coolant Tank
Oil Skimmer (Upgraded $995 value Included)
Belt Type Chip Conveyor (Upgraded $6,195 value Included)
