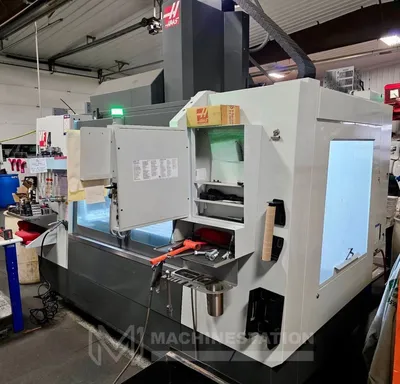

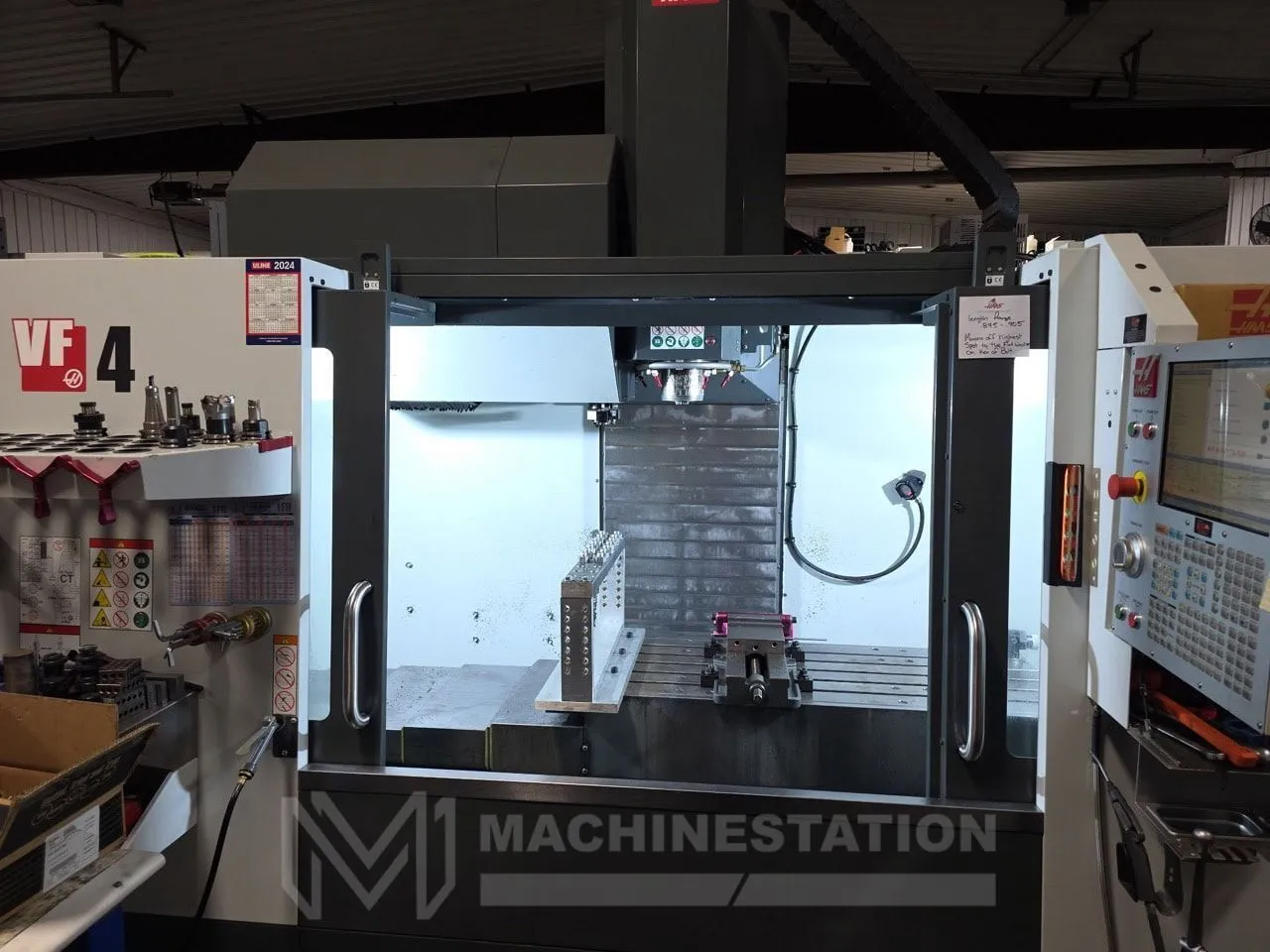

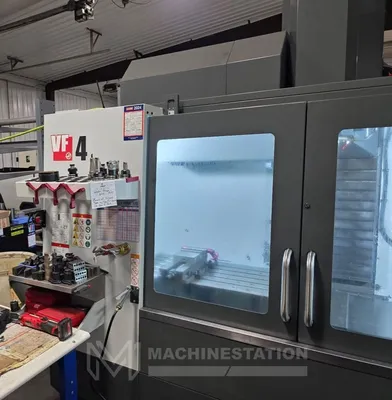

USED 2023 HAAS VF-4

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

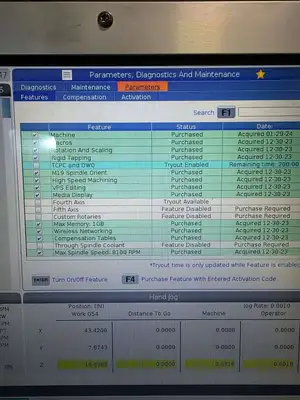

Features:
Haas CNC Control

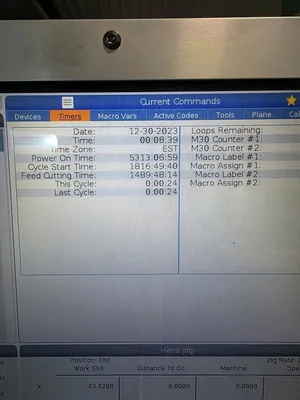

1489 Hours Cutting Time
Rotation & Scaling
User-Definable Macros
Visual Part Programming System
Media Display
Compensation Tables
1GB Memory
Rigid Tapping
Spindle Orientation
Coolant Tank

Travels:
X-Axis: 50.0″
Y-Axis: 20.0″
Z-Axis: 25.0″
Rapid Traverse Rates: 1000 IPM
Cutting Feed Rates: 650 IPM
Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″

Table:
Length: 52.0″
Width: 19.5″
Max Weight on Table (evenly distributed): 3500 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 8100 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 2=30 Station
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Tool Changing Time : 4.20 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 152″ x 99 x 106” High
Weight: 11,720 lbs

Wireless Probe
30 Station Automatic Tool changer
High Speed Machining
Through Spindle Coolant Ready (Pump Needed)
Chip Auger
Misc. Tooling
