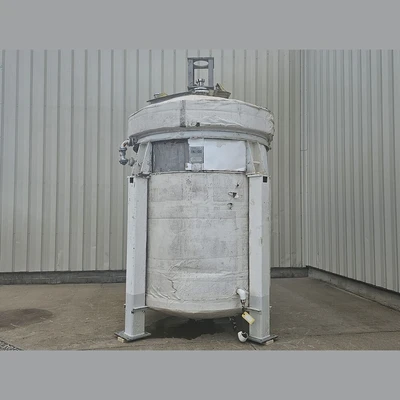

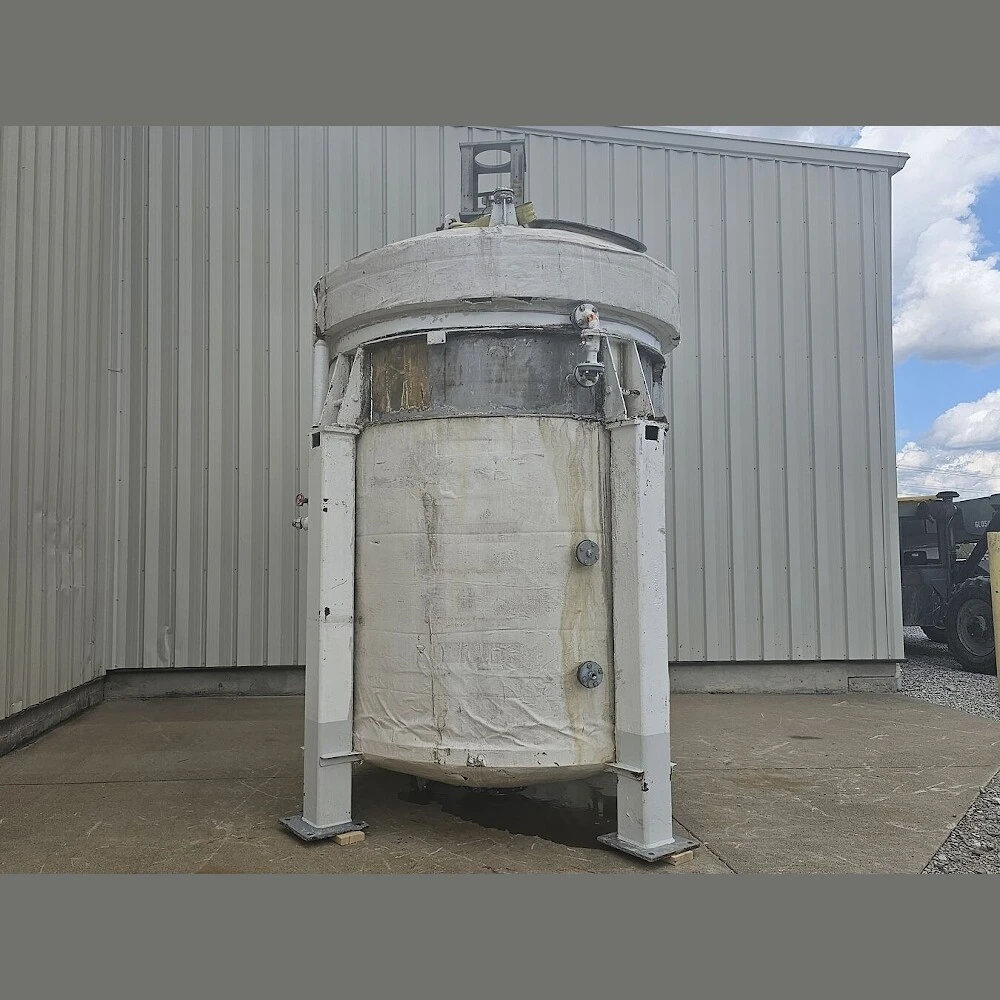

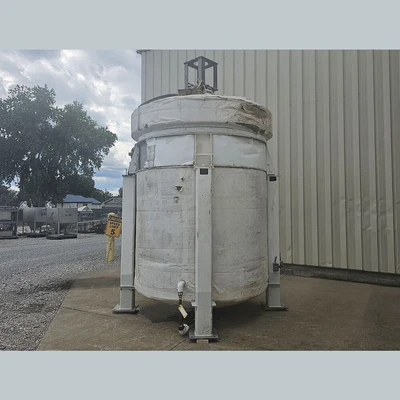

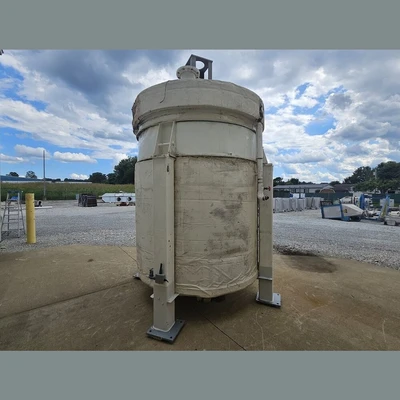

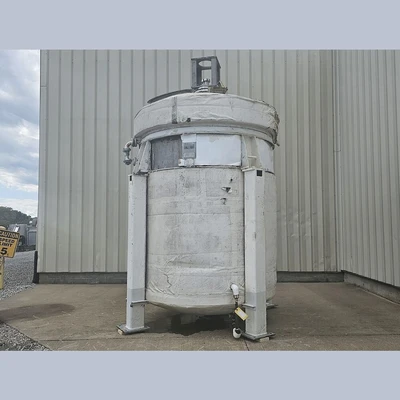

2,200 Gallon SS Jacketed Pressure Mix Tank with 7.5HP Agitator

2,200 Gallon SS Jacketed Pressure Mix Tank with 7.5HP Agitator
Make: Superior Welding Fab.
Capacity: 2,200 Gallons
Size: 78in Diameter x 102in Straight Side, Top and Bottom Dished Heads
Construction:
Wetted Surfaces: 316 Stainless Steel
Jacket: 304 Stainless Steel
Wetted Surfaces: 316 Stainless Steel
Jacket: 304 Stainless Steel

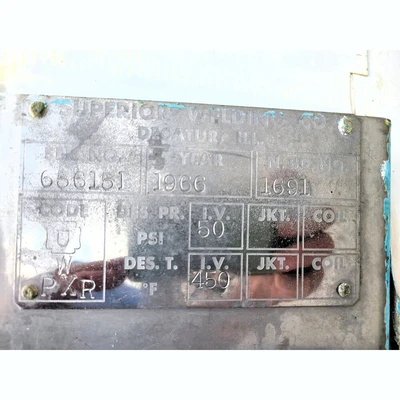

Tank Rating: 50psi @ 450°F
Inlet: 8in Diameter
Discharge: 10in Diameter Drain

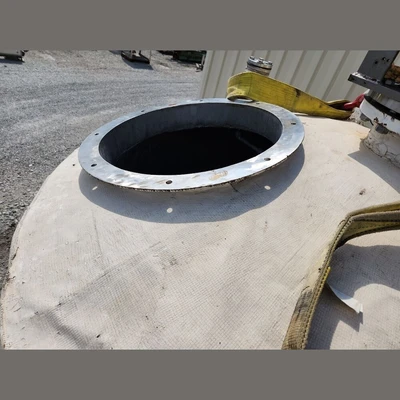

Top Access: 23in Diameter

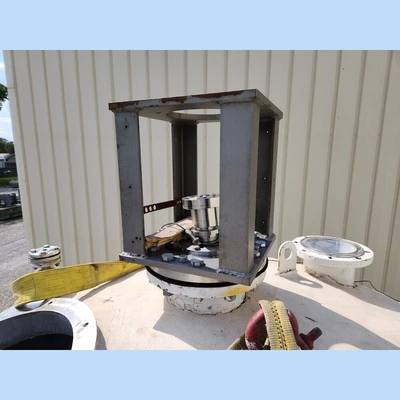

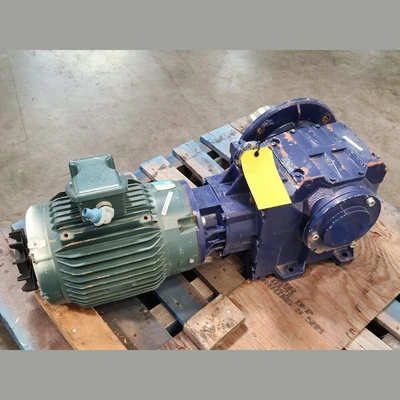

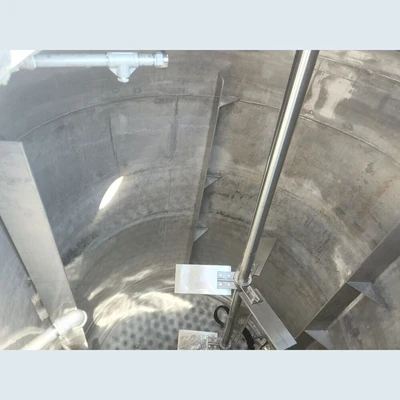

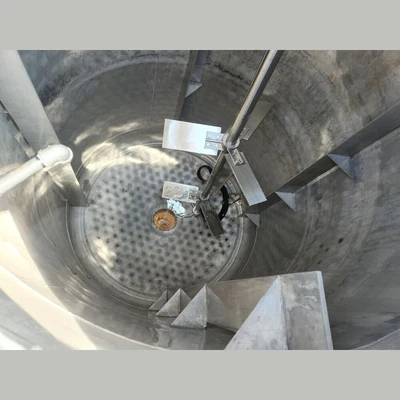

Agitator: Vertical, Twin 3-Blade Impellers

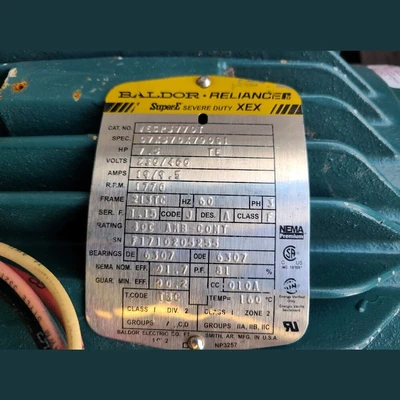

Power Output: 7.5HP
Impeller Speed: 98RPM
Voltage: 230/460 Volts
Frequency: 60Hz
Phase: 3-Phase
Power Output: 7.5HP
Impeller Speed: 98RPM
Voltage: 230/460 Volts
Frequency: 60Hz
Phase: 3-Phase
Overall Weight: 9,034lbs
Location: Eastern USA
