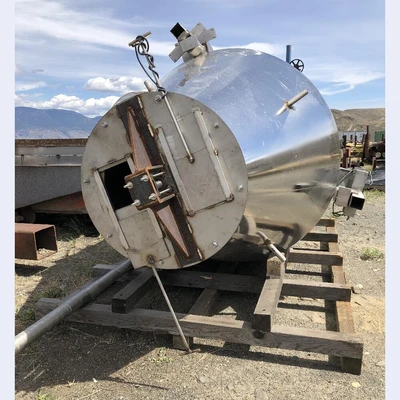

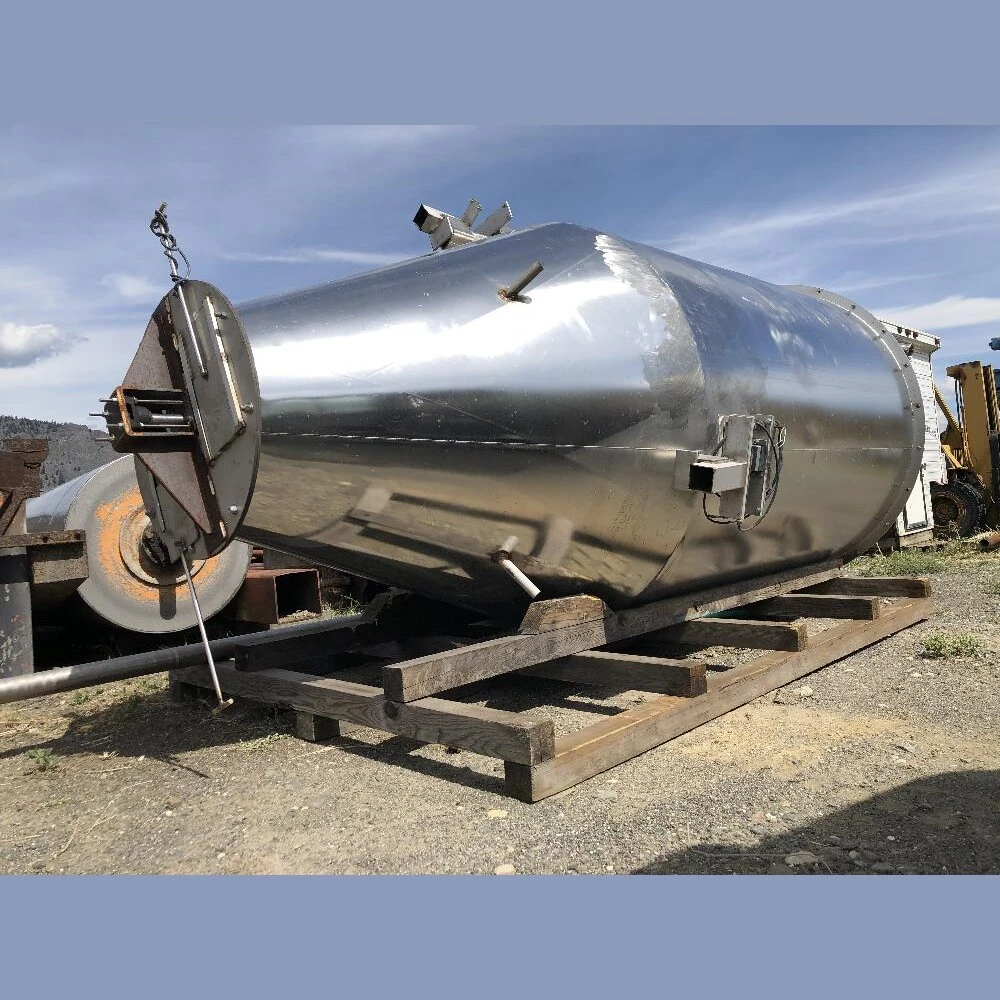

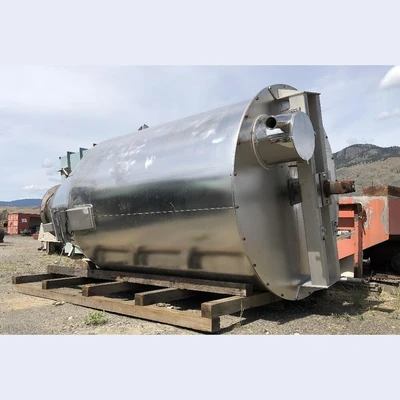

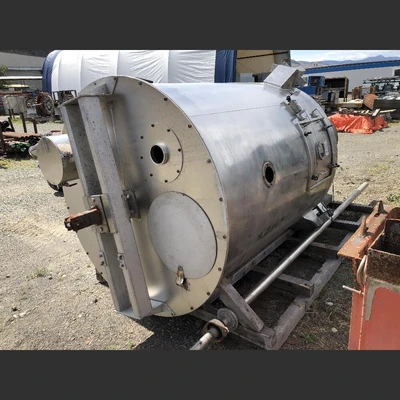

Stainless Steel Weigh Silo & Mixing Auger

Stainless Steel Weigh Silo & Mixing Auger
Size:
Main Section: 66in Diameter x 88in Long
Cone Section: 56in Long
Main Section: 66in Diameter x 88in Long
Cone Section: 56in Long
Discharge: 22in Flanged Outlet
With:

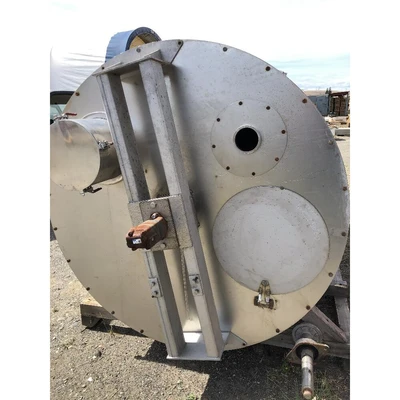

20in Opening on Top
13in Opening with Clamp Down Style Lid on Top
(2) 6in x 7.5in Manial Discharge Slide Gates
24in x 24in Side Access Panel
5in Dia. Inspection Window
20in Opening on Top
13in Opening with Clamp Down Style Lid on Top
(2) 6in x 7.5in Manial Discharge Slide Gates
24in x 24in Side Access Panel
5in Dia. Inspection Window
5in Dia. Inspection Window
Comes With:

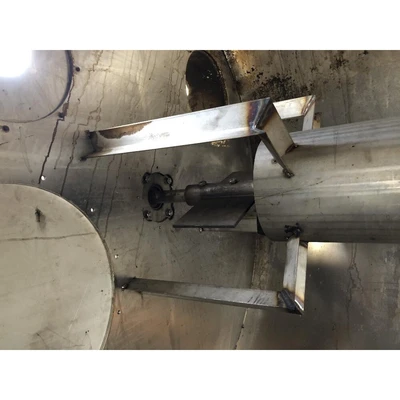

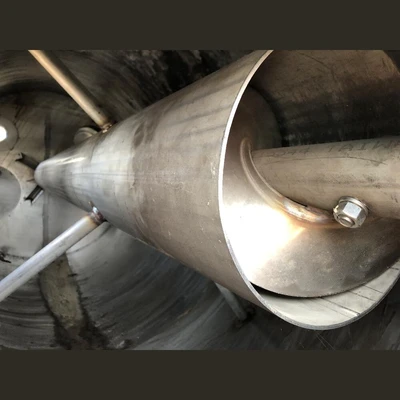

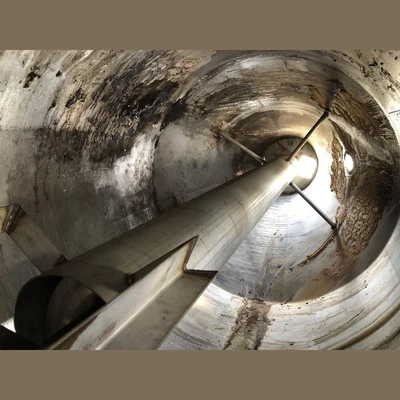

9in Diameter Vertical-Mounted Internal Mixing Auger (Draw Material Up From Bottom and Feeds Through an Enclosed Tube, Discharging at Top Where 2 Flat Paddles Distribute Material)

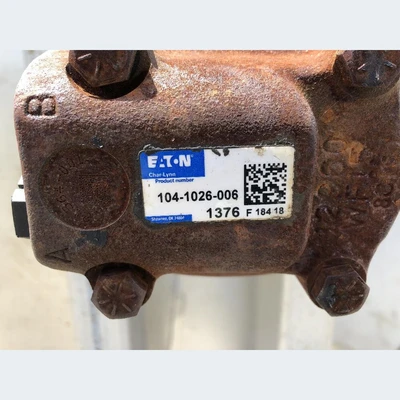

Eaton (Char-Lynn) Hydraulic Drive Motor
Product #: 104-1026-006
2000 Series, Low Speed, High Torque
Max Speed: 799 RPM @ 20 GPM

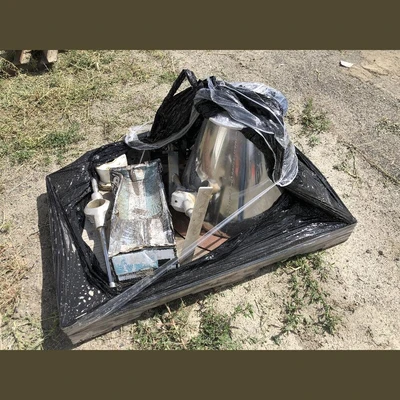

Tripod Stand (With Legs Cut-Off)

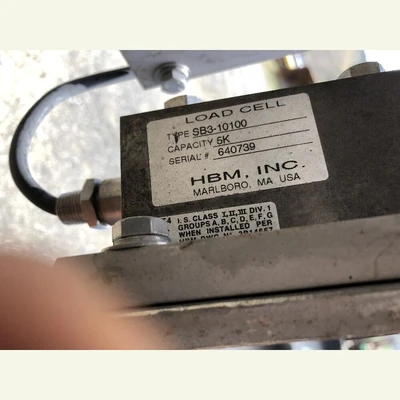

Each Leg has an HBM Inc. Load Cell
Type: SB3-10100
Capacity: 5,000 Lbs.
9in Diameter Vertical-Mounted Internal Mixing Auger (Draw Material Up From Bottom and Feeds Through an Enclosed Tube, Discharging at Top Where 2 Flat Paddles Distribute Material)
Eaton (Char-Lynn) Hydraulic Drive Motor
Product #: 104-1026-006
2000 Series, Low Speed, High Torque
Max Speed: 799 RPM @ 20 GPM
Eaton (Char-Lynn) Hydraulic Drive Motor
Product #: 104-1026-006
2000 Series, Low Speed, High Torque
Max Speed: 799 RPM @ 20 GPM
Product #: 104-1026-006
2000 Series, Low Speed, High Torque
Max Speed: 799 RPM @ 20 GPM
Tripod Stand (With Legs Cut-Off)
Each Leg has an HBM Inc. Load Cell
Type: SB3-10100
Capacity: 5,000 Lbs.
Each Leg has an HBM Inc. Load Cell
Type: SB3-10100
Capacity: 5,000 Lbs.
Location: Savona, British Columbia, Canada
