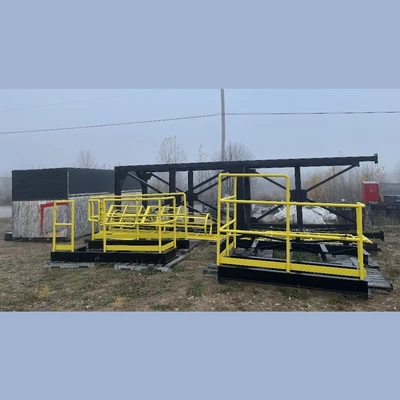

USED 2023 NTE PROCESS M244

NTE M244 Air Blender System
Make: NTE Process
Model: M244
Type: Pneumatic Mixer/Blender System
Year: 2023
Condition: Unused, Surplus Condition
Batch Size: 3,000kg
Product Requirements:
Bulk Density: 0.34 - 0.58kg/dm3
Particle Size: 5 - 50μm
Moisture: <0.1%
Temperature: 5°C - 35°C
Bulk Density: 0.34 - 0.58kg/dm3
Particle Size: 5 - 50μm
Moisture: <0.1%
Temperature: 5°C - 35°C
Equipment List:

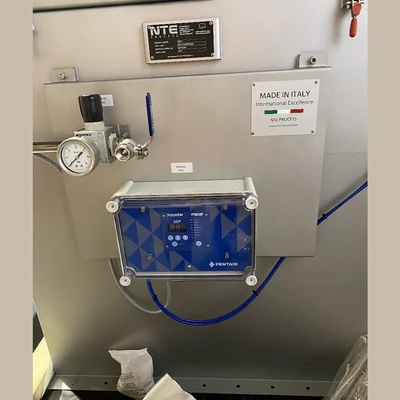

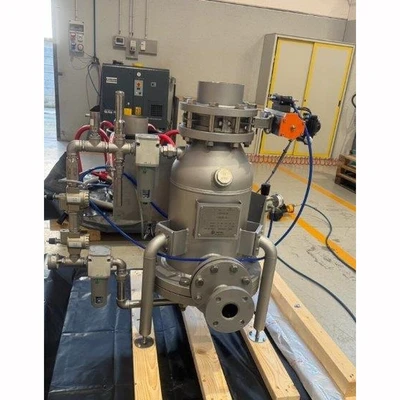

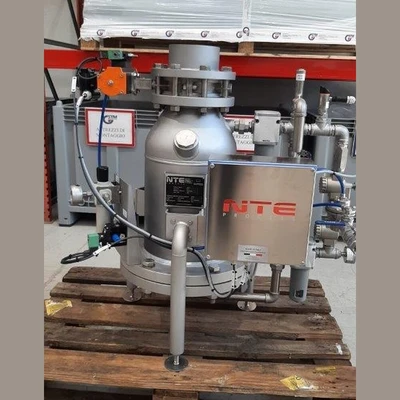

Smart Jet M530 Conveyor:
Vessel Capacity: 60 Liters
System Capacity: 500kg/h
Conveyor Line Size: 2in Dia.
Conveying Distance: 15m
Construction: Stainless Steel AISI 304
Inlet Butterfly Valve

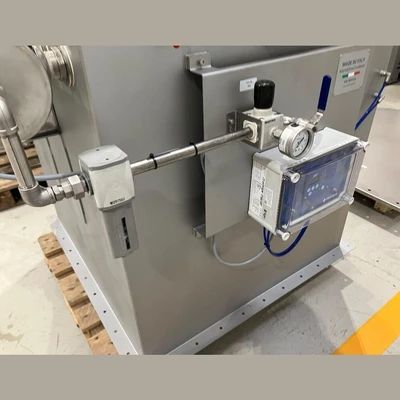

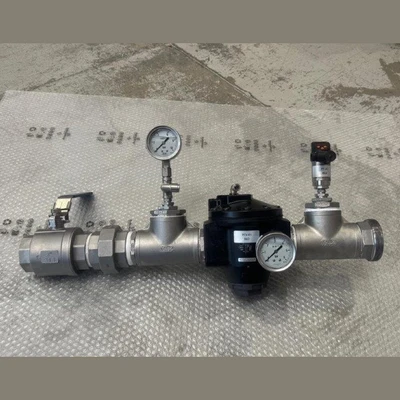

Pressure Regulator with Pressure Gauge
Volume Control Valve
Air Control Solenoid Valve

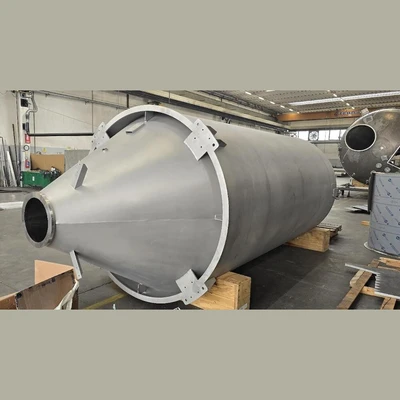

Blending Silo:
Volume: 16m³
Cylinder Diameter: 2,200mm
Cylinder Height: 4,000mm
Total Height: 5,400mm
Discharge Flange: 300mm
Cone Slope: 60°

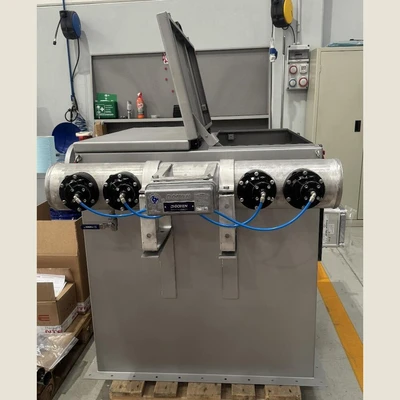

M215 Dust Collector:
Type: Cartridge Style
Filter Surface: 54m²
Reverse-Jet Pneumatic Cleaning System
Connected to Silo

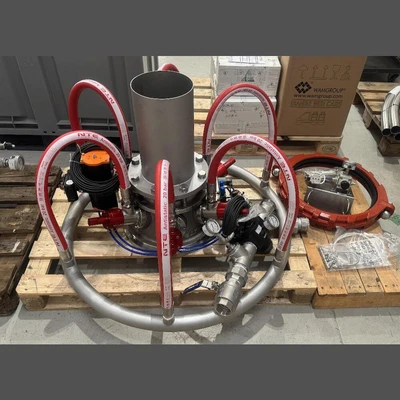

M244 Air Blender:
Aerators: (6) Individual 276-NTE Aerators
Construction: Steel AISI 316L
Single Coil Solenoid Valve
Butterfly Valve
Air Manifold
Air Control with Pressure Transducer
Smart Jet M530 Conveyor:
Vessel Capacity: 60 Liters
System Capacity: 500kg/h
Conveyor Line Size: 2in Dia.
Conveying Distance: 15m
Construction: Stainless Steel AISI 304
Inlet Butterfly Valve
Pressure Regulator with Pressure Gauge
Volume Control Valve
Air Control Solenoid Valve
Vessel Capacity: 60 Liters
System Capacity: 500kg/h
Conveyor Line Size: 2in Dia.
Conveying Distance: 15m
Construction: Stainless Steel AISI 304
Inlet Butterfly Valve
Pressure Regulator with Pressure Gauge
Volume Control Valve
Air Control Solenoid Valve
Blending Silo:
Volume: 16m³
Cylinder Diameter: 2,200mm
Cylinder Height: 4,000mm
Total Height: 5,400mm
Discharge Flange: 300mm
Cone Slope: 60°
Volume: 16m³
Cylinder Diameter: 2,200mm
Cylinder Height: 4,000mm
Total Height: 5,400mm
Discharge Flange: 300mm
Cone Slope: 60°
M215 Dust Collector:
Type: Cartridge Style
Filter Surface: 54m²
Reverse-Jet Pneumatic Cleaning System
Connected to Silo
Type: Cartridge Style
Filter Surface: 54m²
Reverse-Jet Pneumatic Cleaning System
Connected to Silo
M244 Air Blender:
Aerators: (6) Individual 276-NTE Aerators
Construction: Steel AISI 316L
Single Coil Solenoid Valve
Butterfly Valve
Air Manifold
Air Control with Pressure Transducer
Aerators: (6) Individual 276-NTE Aerators
Construction: Steel AISI 316L
Single Coil Solenoid Valve
Butterfly Valve
Air Manifold
Air Control with Pressure Transducer

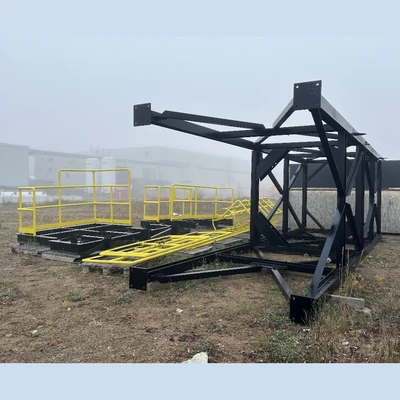

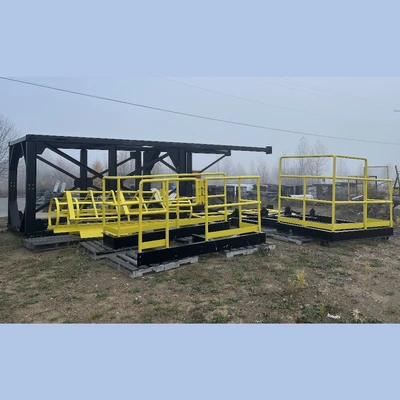

Mounted to Steel Support Structure
Location: Eastern Canada
