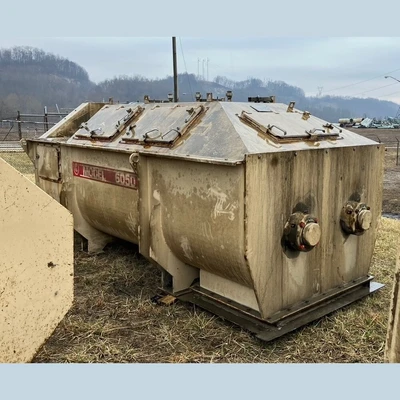

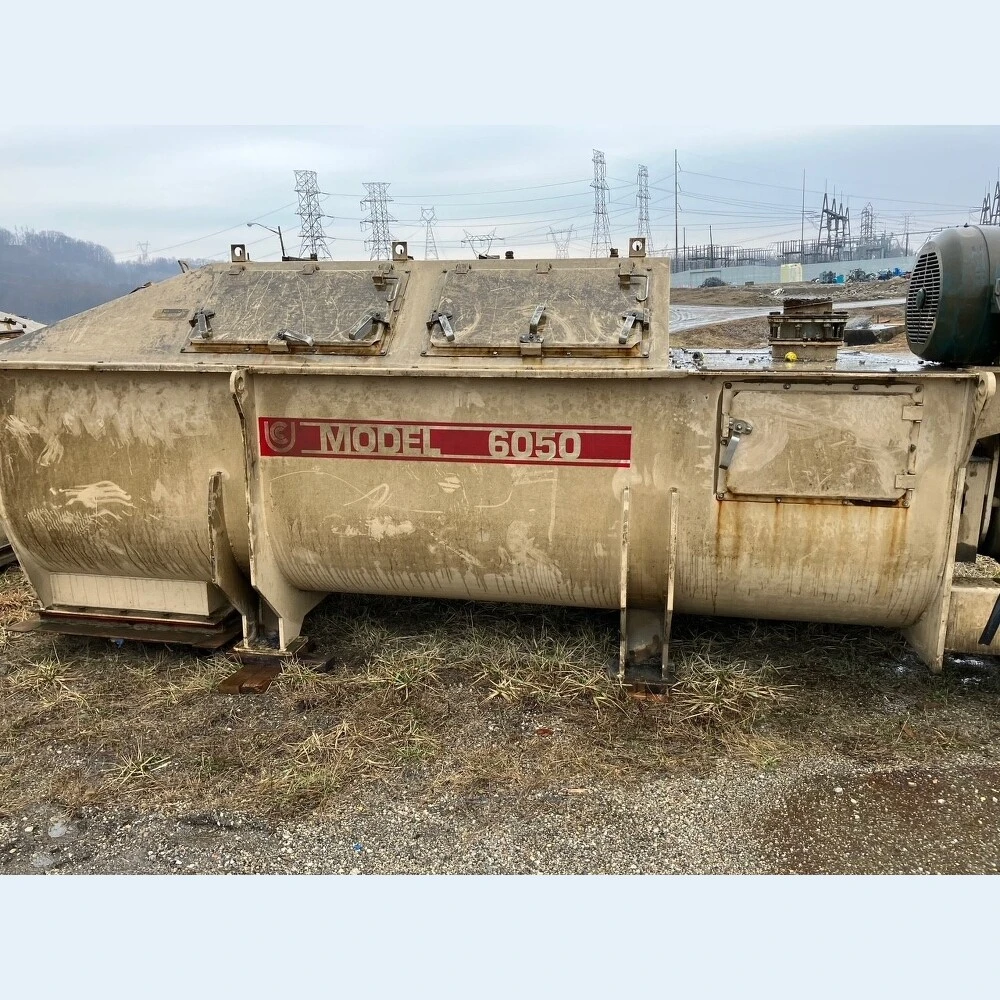

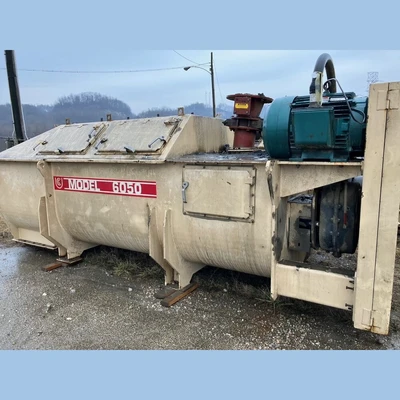

USED UNITED CONVEYOR CORPORATION MODEL 6050

United Conveyor 6050 Pin-Paddle Mixer
Quantity: (3) Units Available
Description: Specifically Designed to Condition High Calcium Ash. The Pin-Paddle Design Reduces Buildup and Maintenance Frequency, Time and Expense
Make: United Conveyor Corporation
Model: Model 6050
Type: Pin-Paddle Mixer / Unloader
Condition: Used Condition - Previously Used in Power Plant

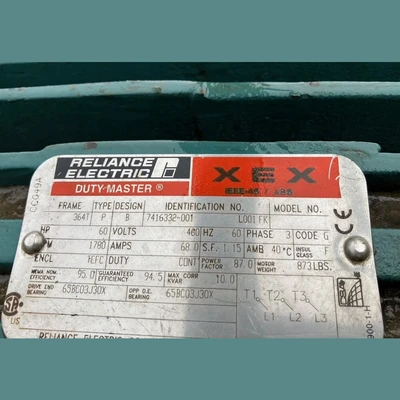

Drive: Reliance Electric Motor
Power Output: 60HP
Voltage: 460 Volt
Power Output: 60HP
Voltage: 460 Volt
Operation: The UCC Pin-Paddle Mixer/Unloader Solves the Calcium Compound Challenges with it's Unique Design and Operation:

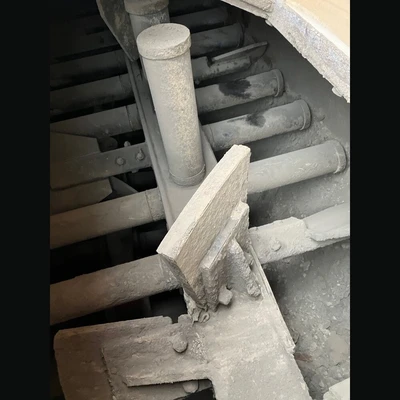

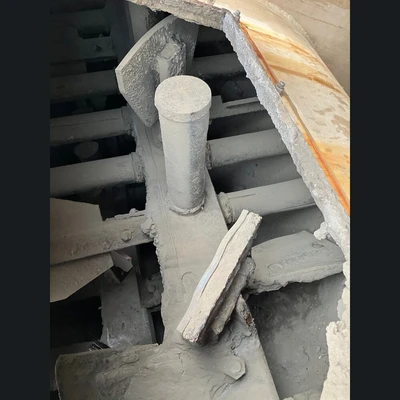

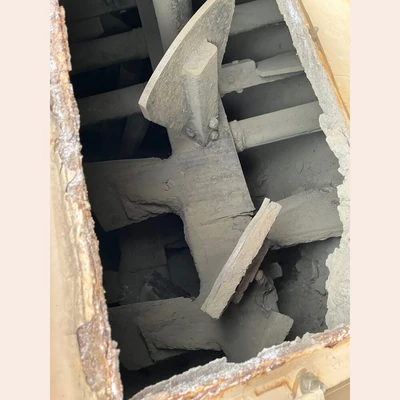

Paddles Push Material Forward through the Mixer/Unloader
Fast, Counter-Rotating shafts and Pins Create Turbulent Mixing While Lifting the Material to Expose the Ash for Optimal Wetting and Mixing
Nozzles are Designed for Improved Water Penetration into the Bed of Material
Nozzles Can Be Independently Controlled to Allow Precise Water Discharge during Start-Up, Mixing and Shutdown
Cleaning Chains Generate Contact against Material and Pin-Paddles to Reduce Buildup during Each Cycle Stop
Paddles Push Material Forward through the Mixer/Unloader
Fast, Counter-Rotating shafts and Pins Create Turbulent Mixing While Lifting the Material to Expose the Ash for Optimal Wetting and Mixing
Nozzles are Designed for Improved Water Penetration into the Bed of Material
Nozzles Can Be Independently Controlled to Allow Precise Water Discharge during Start-Up, Mixing and Shutdown
Cleaning Chains Generate Contact against Material and Pin-Paddles to Reduce Buildup during Each Cycle Stop
General Model Specifications:
Discharge Capacity: Up To 300 TPH (272 MTPH)
Volumetric Capacity: 12,000 ft³/hr. (340 m³/hr.)
Pin-Paddle Rotation Speed: 50 RPM
Motor: 60HP (45kW)
Paddle Diameter (Feeding): 29"
Weight: 12,500 Lbs.
Distance from Center of Ash Inlet Flange to Center of Ash Outlet Flange: 106-13/16" to 126-5/16"
Mixer Body: 3/8" Carbon Steel
Feeding Paddles: Tivar Clad AR500
Mixing Paddles: 304 Stainless Steel
Mixing Pins: UHMW-PE Pin Cover - DURITE® H Wear Caр
Discharge Capacity: Up To 300 TPH (272 MTPH)
Volumetric Capacity: 12,000 ft³/hr. (340 m³/hr.)
Pin-Paddle Rotation Speed: 50 RPM
Motor: 60HP (45kW)
Paddle Diameter (Feeding): 29"
Weight: 12,500 Lbs.
Distance from Center of Ash Inlet Flange to Center of Ash Outlet Flange: 106-13/16" to 126-5/16"
Mixer Body: 3/8" Carbon Steel
Feeding Paddles: Tivar Clad AR500
Mixing Paddles: 304 Stainless Steel
Mixing Pins: UHMW-PE Pin Cover - DURITE® H Wear Caр
Location: Eastern USA
