USED J.H. DAY COMPANY D-8
Overview
Specifications

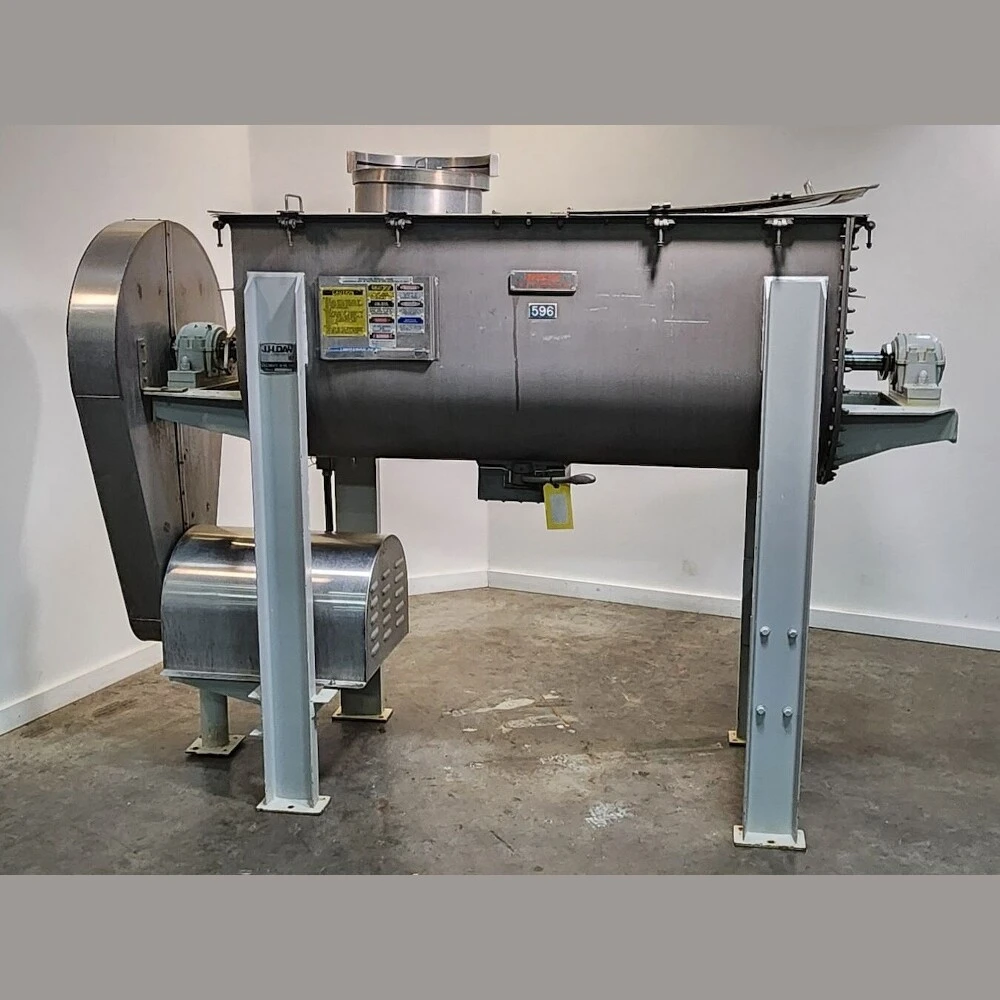

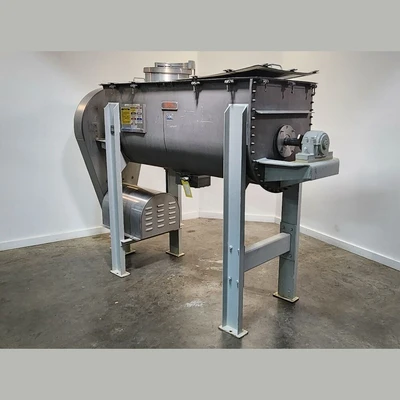

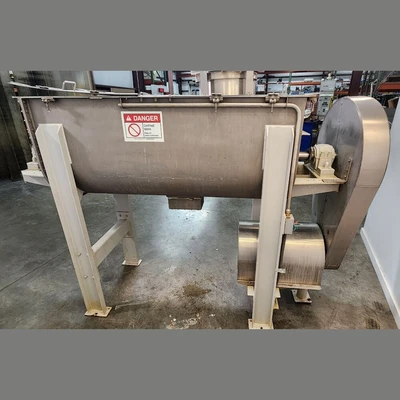

JH Day D-8 Double Ribbon Mixer

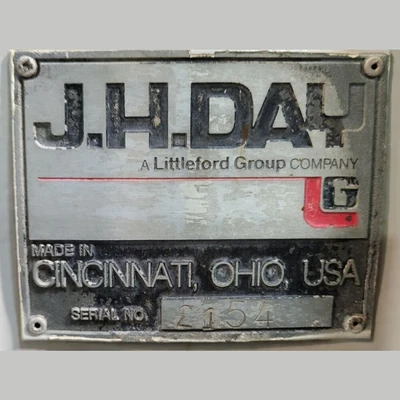

Make: J.H. Day Company
Model: D-8
Type: Ribbon Blender
Condition: Used Condition
Chamber Volume: 28ft³
Chamber Dimensions: 26in Wide x 66in Long x 28.5in Deep

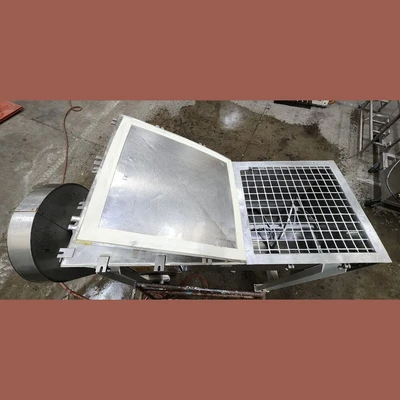

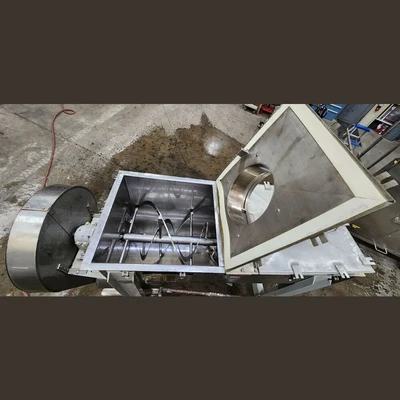

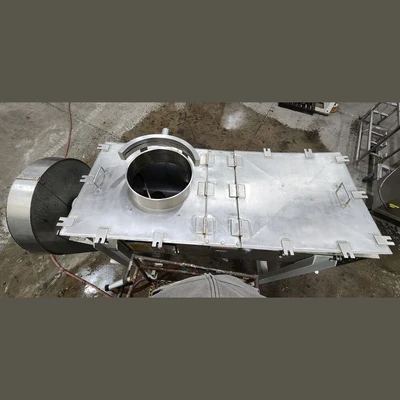

Top Cover: Hinged Flat Cover with Gasket and Swivel-Screw Clamps
Inlet: 13in Dia. Lip-Ring Sleeve with Cover

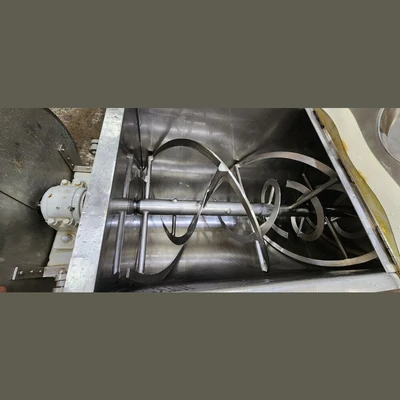

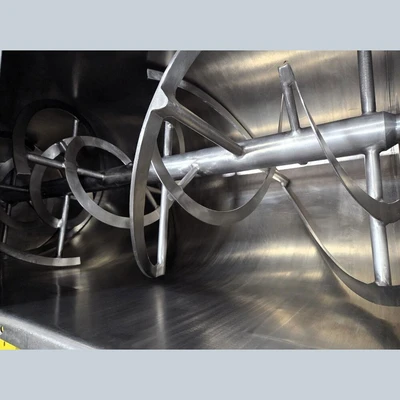

Agitator Type: Double Ribbon
Blender Shaft Supported on Pillow Block Bearings with Packing Gland Rotary Seals
Blender Shaft Supported on Pillow Block Bearings with Packing Gland Rotary Seals
Discharge: 4in Dia. Paddle Valve
Discharge Height: 36.5in High
Discharge Height: 36.5in High
Contact Surface Material: 304 Stainless Steel

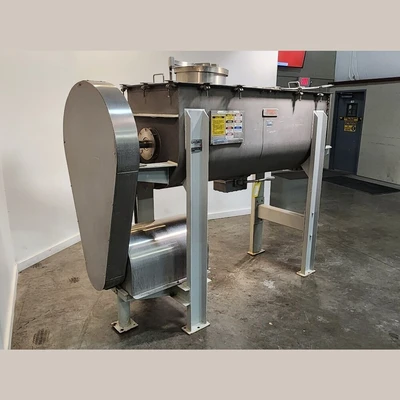

Drive: Gearmotor with Chain Drive, Explosion Proof
Power Output: 10HP
Voltage: 200 Volts
Frequency: 60Hz
Phase: 3-Phase
Power Output: 10HP
Voltage: 200 Volts
Frequency: 60Hz
Phase: 3-Phase
Electric Equipment: NEMA 4X Air-Purged Enclosure with Timer/Counter, Magnetic Starter and Transformer
Base Area: 33in Wide x 63in Long
Overall Height: 69.75in
Overall Weight: 2,002lbs
Location: Eastern USA
