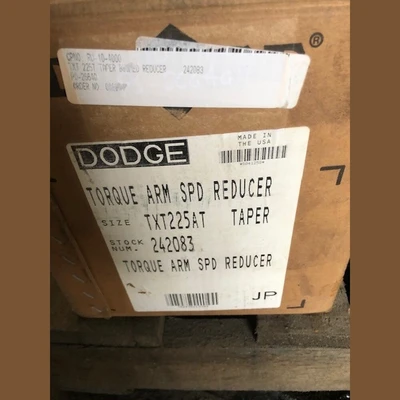

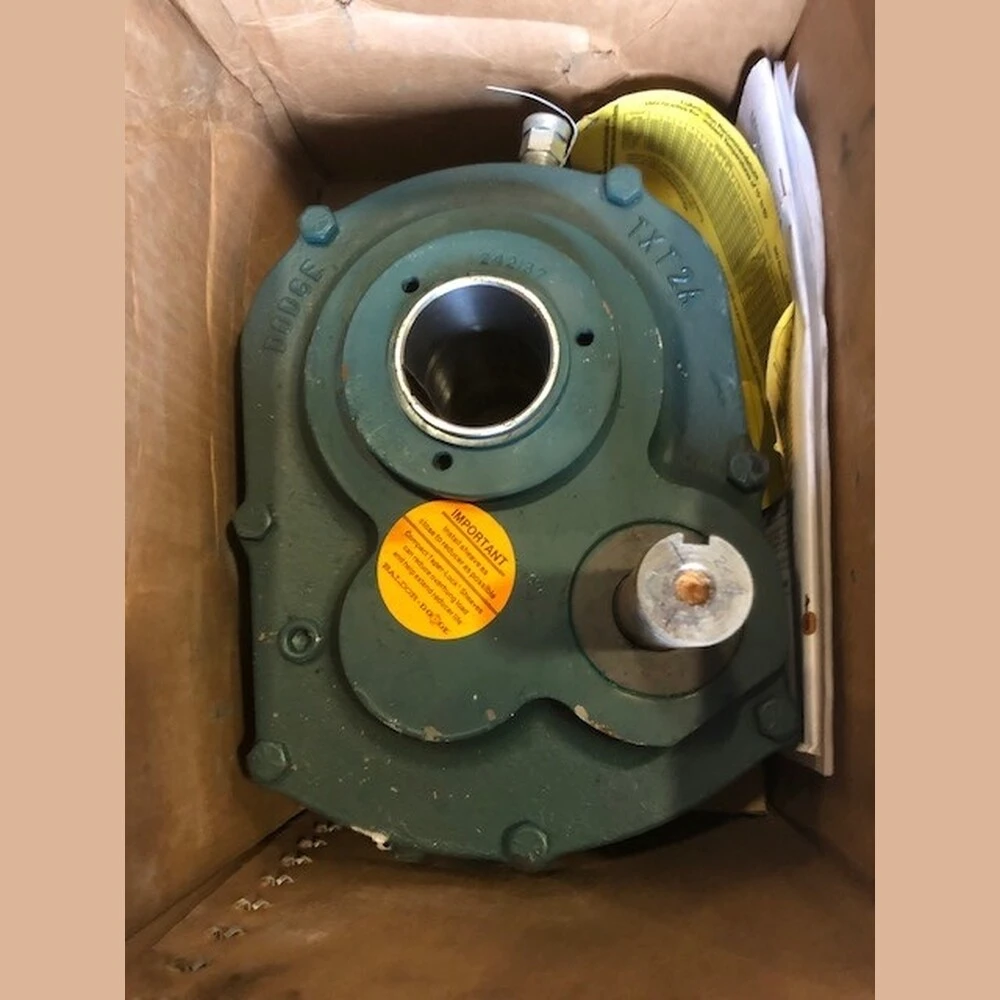

USED DODGE TXT225AT

Dodge TXT225AT Shaft Mount Reducer
Make: Dodge
Model: TXT225AT
Type: Torque Arm II Shaft Mounted Speed Reducer
Stock Number: 242083
Specifications:
Nominal Ratio: 25
Housing Material: Cast Iron
Bore Length: Output - 7.33 inch
Maximum Speed: Input - 1994 RPM
Output: Tapered Bushed
Sealing Type: Single-Lip Contact
Shaft Diameter: Input - 1.125 inch
Reduction Type: Double Stage
Shaft Length: Input - 3.59 inch
Net Depth: 9.55 inch
Input Style: Belt-Driven
Agma Size: 115
Actual Ratio: 23.46:1
Sheave Diameter: Minimum 3in
Case Size: 2
Weight: 60 Lbs.
Nominal Ratio: 25
Housing Material: Cast Iron
Bore Length: Output - 7.33 inch
Maximum Speed: Input - 1994 RPM
Output: Tapered Bushed
Sealing Type: Single-Lip Contact
Shaft Diameter: Input - 1.125 inch
Reduction Type: Double Stage
Shaft Length: Input - 3.59 inch
Net Depth: 9.55 inch
Input Style: Belt-Driven
Agma Size: 115
Actual Ratio: 23.46:1
Sheave Diameter: Minimum 3in
Case Size: 2
Weight: 60 Lbs.
Location: Western Canada
