USED DODGE SCXT225
Overview
Specs

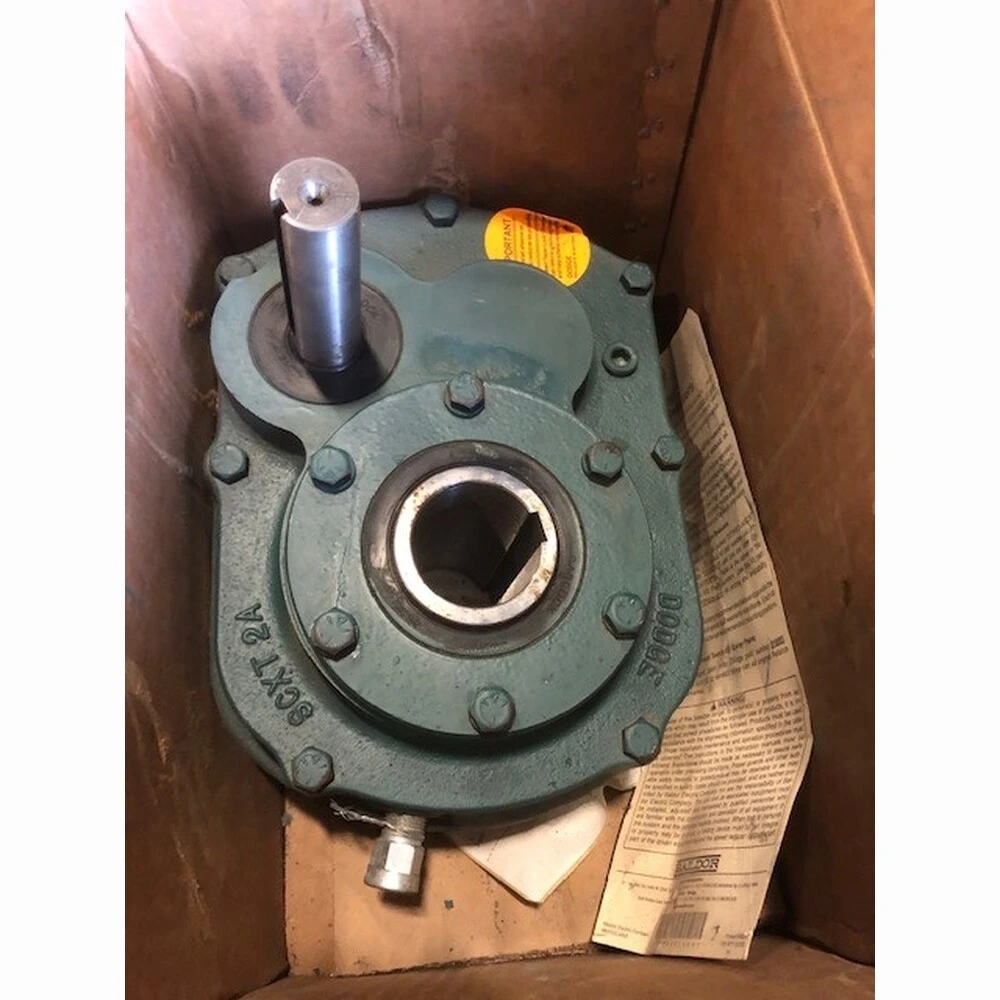

Dodge SCXT225 Shaft Mount Screw Conveyor Reducer
Make: Dodge
Model: SCXT225
Type: Torque Arm II Shaft Mount Screw Conveyor Reducer
Stock Number: 352066
Specifications:
Housing Material: Cast Iron
Bore Length: Output - 5.81 inch
Maximum Speed: Input - 1994RPM
Nominal Ratio: 25
Output: Screw Conveyor
Sealing Type: Single-Lip Contact
Shaft Diameter: Input - 1.125in
Shaft Length: Input - 3.59in
Screw Conveyor Compatible: Yes
Sheave Diameter: Min 3in
Reduction Type: Double Stage
Product Net Depth: 8.79in
Input Style: Belt-Driven
Agma Size: 115
Horsepower: 7.52HP
Actual Ratio: 23.46:1
Case Size: 2
Weight: 59.7 Lbs.
Housing Material: Cast Iron
Bore Length: Output - 5.81 inch
Maximum Speed: Input - 1994RPM
Nominal Ratio: 25
Output: Screw Conveyor
Sealing Type: Single-Lip Contact
Shaft Diameter: Input - 1.125in
Shaft Length: Input - 3.59in
Screw Conveyor Compatible: Yes
Sheave Diameter: Min 3in
Reduction Type: Double Stage
Product Net Depth: 8.79in
Input Style: Belt-Driven
Agma Size: 115
Horsepower: 7.52HP
Actual Ratio: 23.46:1
Case Size: 2
Weight: 59.7 Lbs.
Location: Western Canada
