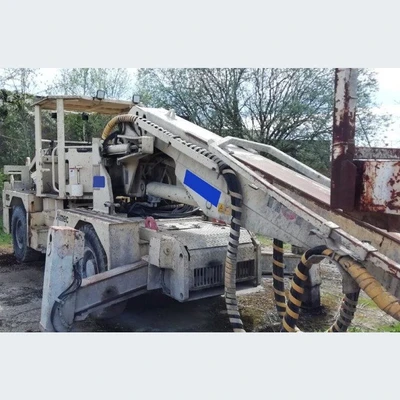

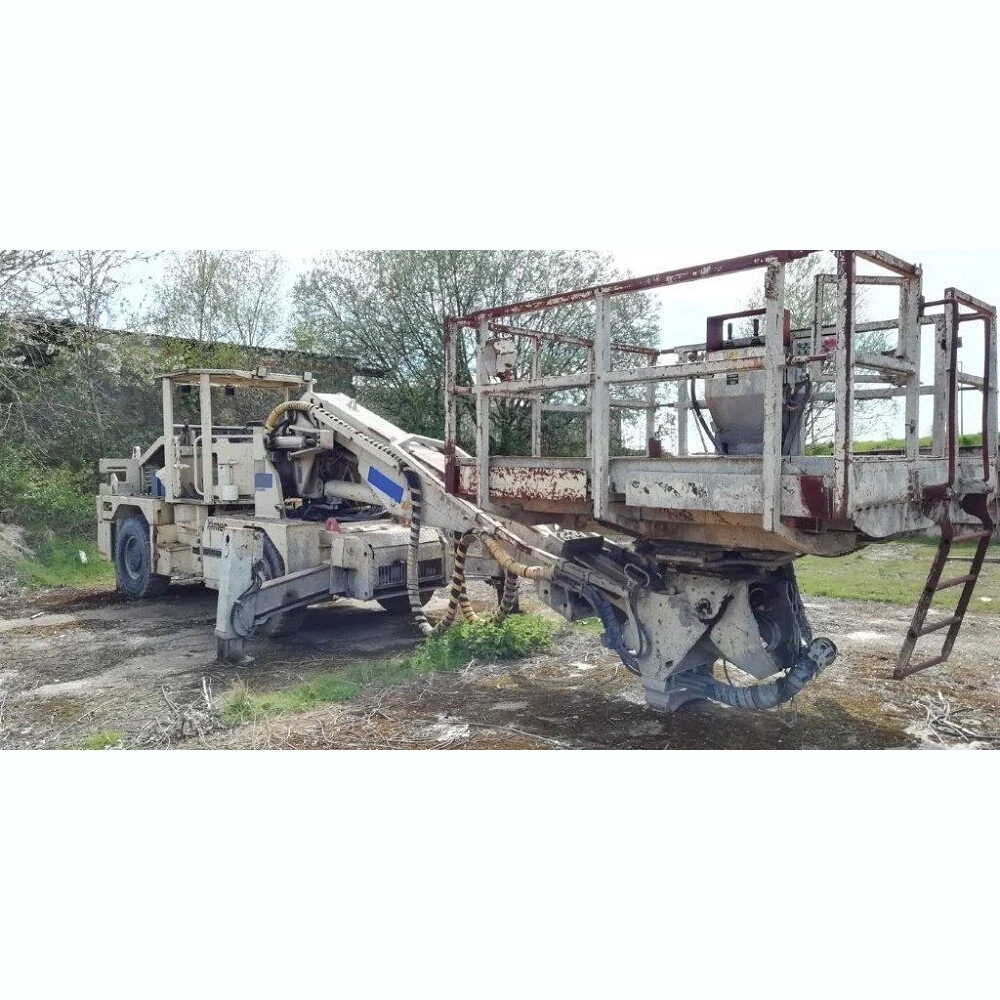

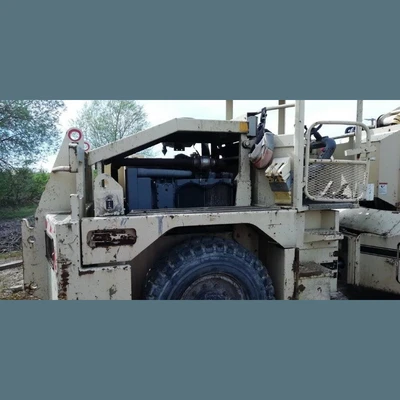

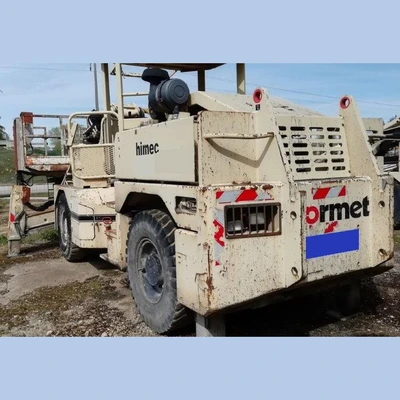

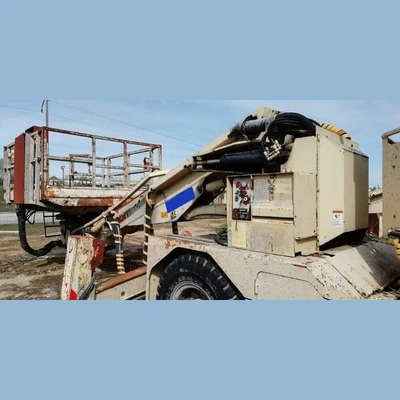

USED 2003 NORMET HIMEC 9910

Normet HIMEC 9910 Service Platform
Make: Normet
Model: HIMEC 9910
Type: Underground Service Platform
Style: Single Boom Extendable Platform Lifter
Year: 2003
Hours: 16,059 Hours on Meter
Condition: Used Condition (Refurbishment Option Available)
General Model Specifications:
Description: HIMEC 9910 B REX is a Self-Propelled Diesel Driven Lifting Unit Suitable for Charging of Explosives, Lifting and Installing Works in Tunneling.
Normet Superboom NSB 900:
Description: Heavy Duty Multipurpose Boom Suitable For Charging, Scaling, Spraying of Concrete, Bolting and Installing Works. Boom is Controlled From The Platform And From The Carrier.
Boom Lift: -20° to +53°
Boom Slew: +/- 30°
Vertical Working Reach, Max: 11m
Vertical Working Reach, (FACE): 10m
Basket Slew: 340°
Basket Size: 2.40m x 2.45m
Extended: 2.40m x 4.70m (Hydraulically Operated Side Extensions)
Lifting Capacity: 800 kg
Carrier NC 98:
Description: Specially Designed for Underground Use. Diesel Engine with Hydrodynamic Transmission and 4-Wheel Drive. Fully Enclosed Multidisc 2-Circuit Brakes and Parking and Emergency Brake Make Operating Reliable and Safe
Diesel Engine: 65kW
Max. Tractive Effort: 120kN
Performance: Max. 15 km/h
Support Legs: One Pair in Front and One Pair at Rear, Hydraulically Operated, Front Pair with Lateral Extensions
Working Lights:
(2) 70 W on Work Platform
(4) 70 W on Carrier
Safety Canopy: Driver's Seat Fulfills the European Safety Regulations
Dimensions:
Length: 10,090 mm (33.1ft)
Width: 2,450 mm (8.04ft)
Height: 2,790 mm (9.15ft)
Wheel Base: 3,350 mm (11ft)
Ground Clearance: 320 mm (12.6in)
Outer Turning Radius: 7,780 mm (25.5ft)
Inner Turning Radius: 3,530 mm (11.6ft)
Weight, Operating: 18,500 kg (40,785.5 Lbs.)
Description: HIMEC 9910 B REX is a Self-Propelled Diesel Driven Lifting Unit Suitable for Charging of Explosives, Lifting and Installing Works in Tunneling.
Normet Superboom NSB 900:
Description: Heavy Duty Multipurpose Boom Suitable For Charging, Scaling, Spraying of Concrete, Bolting and Installing Works. Boom is Controlled From The Platform And From The Carrier.
Boom Lift: -20° to +53°
Boom Slew: +/- 30°
Vertical Working Reach, Max: 11m
Vertical Working Reach, (FACE): 10m
Basket Slew: 340°
Basket Size: 2.40m x 2.45m
Extended: 2.40m x 4.70m (Hydraulically Operated Side Extensions)
Lifting Capacity: 800 kg
Description: Heavy Duty Multipurpose Boom Suitable For Charging, Scaling, Spraying of Concrete, Bolting and Installing Works. Boom is Controlled From The Platform And From The Carrier.
Boom Lift: -20° to +53°
Boom Slew: +/- 30°
Vertical Working Reach, Max: 11m
Vertical Working Reach, (FACE): 10m
Basket Slew: 340°
Basket Size: 2.40m x 2.45m
Extended: 2.40m x 4.70m (Hydraulically Operated Side Extensions)
Extended: 2.40m x 4.70m (Hydraulically Operated Side Extensions)
Lifting Capacity: 800 kg
Carrier NC 98:
Description: Specially Designed for Underground Use. Diesel Engine with Hydrodynamic Transmission and 4-Wheel Drive. Fully Enclosed Multidisc 2-Circuit Brakes and Parking and Emergency Brake Make Operating Reliable and Safe
Diesel Engine: 65kW
Max. Tractive Effort: 120kN
Performance: Max. 15 km/h
Description: Specially Designed for Underground Use. Diesel Engine with Hydrodynamic Transmission and 4-Wheel Drive. Fully Enclosed Multidisc 2-Circuit Brakes and Parking and Emergency Brake Make Operating Reliable and Safe
Diesel Engine: 65kW
Max. Tractive Effort: 120kN
Performance: Max. 15 km/h
Support Legs: One Pair in Front and One Pair at Rear, Hydraulically Operated, Front Pair with Lateral Extensions
Working Lights:
(2) 70 W on Work Platform
(4) 70 W on Carrier
(2) 70 W on Work Platform
(4) 70 W on Carrier
Safety Canopy: Driver's Seat Fulfills the European Safety Regulations
Dimensions:
Length: 10,090 mm (33.1ft)
Width: 2,450 mm (8.04ft)
Height: 2,790 mm (9.15ft)
Wheel Base: 3,350 mm (11ft)
Ground Clearance: 320 mm (12.6in)
Outer Turning Radius: 7,780 mm (25.5ft)
Inner Turning Radius: 3,530 mm (11.6ft)
Weight, Operating: 18,500 kg (40,785.5 Lbs.)
Length: 10,090 mm (33.1ft)
Width: 2,450 mm (8.04ft)
Height: 2,790 mm (9.15ft)
Wheel Base: 3,350 mm (11ft)
Ground Clearance: 320 mm (12.6in)
Outer Turning Radius: 7,780 mm (25.5ft)
Inner Turning Radius: 3,530 mm (11.6ft)
Weight, Operating: 18,500 kg (40,785.5 Lbs.)
Location: Europe
