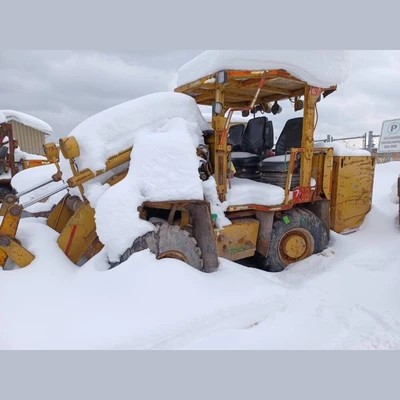

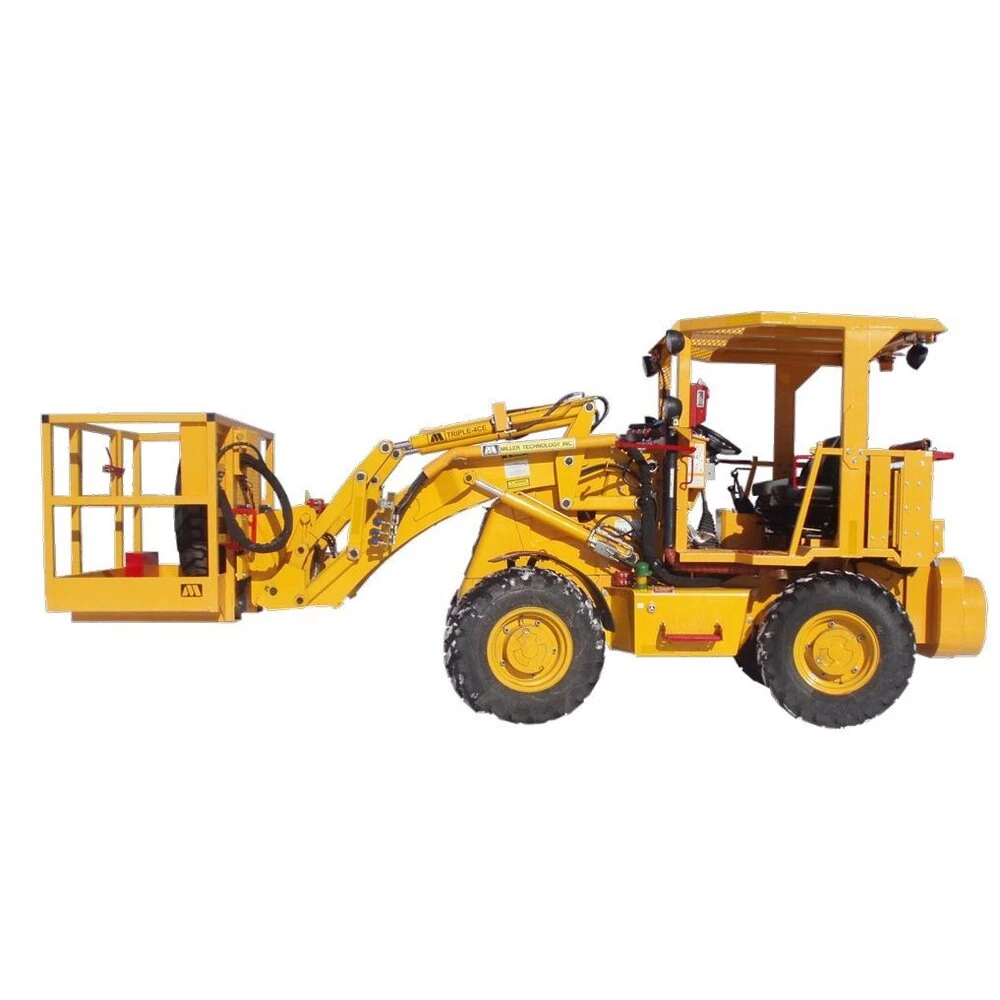

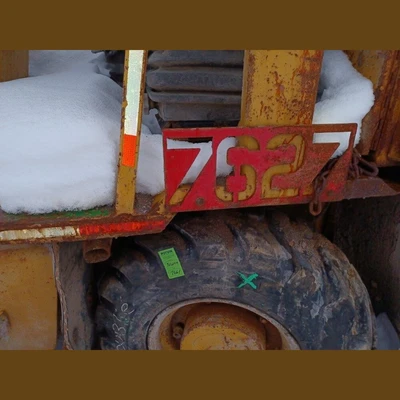

USED 2004 MILLER 4CE

Miller 4CE Compact Utility Carrier
Make: Miller
Model: 4CE
Year: 2004
Condition: Used
Canopy: ROPS/FOPS
Fire Suppression System
People Capacity: 3 to 12
Max. Lift Capacity: 5,000 lbs. (2,270 kg)
Dry Weight (Base): 9,900 lbs. (4,490 kg)
Turning Radius (Outside): 18 Ft (5.4m)
Max Speed Flat: 9.3 MPH (15 Km/hr)
Engine
JCB 444 Diesel Engine
74HP @ 2200 RPM
Turbo Charged
4 Cylinder
Water Cooled
JCB 444 Diesel Engine
74HP @ 2200 RPM
Turbo Charged
4 Cylinder
Water Cooled
Transmission
International Transmission
Shuttle Shift Forward & Reverse
4 Speed
20 Km/hr Gear Ratio
International Transmission
Shuttle Shift Forward & Reverse
4 Speed
20 Km/hr Gear Ratio
Axles
Front: Front Steer Axle
Max-Trac Torque Proportioning
Outboard Planetary Reduction Axle
Steering Cylinder
Rear: Rear Steer Axle
Max-Trac Torque Proportioning
Outboard Planetary Reduction Axle
Steering Cylinder
Internal Wet Multi Disc Brakes
Front: Front Steer Axle
Max-Trac Torque Proportioning
Outboard Planetary Reduction Axle
Steering Cylinder
Max-Trac Torque Proportioning
Outboard Planetary Reduction Axle
Steering Cylinder
Rear: Rear Steer Axle
Max-Trac Torque Proportioning
Outboard Planetary Reduction Axle
Steering Cylinder
Internal Wet Multi Disc Brakes
Max-Trac Torque Proportioning
Outboard Planetary Reduction Axle
Steering Cylinder
Internal Wet Multi Disc Brakes
Brakes
Service: Wet Multi Disc Service Brakes
Internal in Rear Axle
Master Cylinders (2) with Dual Bores
Park/Emergency:
Wet Multi Disc Park/Emergency Brake
Spring Applied & Hydraulic Released, Mounted on Transmission Output
Service: Wet Multi Disc Service Brakes
Internal in Rear Axle
Master Cylinders (2) with Dual Bores
Internal in Rear Axle
Master Cylinders (2) with Dual Bores
Park/Emergency:
Wet Multi Disc Park/Emergency Brake
Spring Applied & Hydraulic Released, Mounted on Transmission Output
Wet Multi Disc Park/Emergency Brake
Spring Applied & Hydraulic Released, Mounted on Transmission Output
Hydraulic System
Open Center Hydraulic System
Engine-Driven Gear Pump; 19 GPM @ 2200 RPM
85 Liter Hydraulic Tank Side Mounted on Carrier
Open Center Hydraulic System
Engine-Driven Gear Pump; 19 GPM @ 2200 RPM
85 Liter Hydraulic Tank Side Mounted on Carrier
Front Loader Arms:
Heavy Duty "Parallel Lift" System Loader Arms
Heavy Duty Quick Hitch System with Hydraulic Lock Valve Control from Operator Seat
Mechanical Self Leveling System
Attachment Lift Height Up To 9.8ft (3.0m)
Bucket Breakout Force: 7,275 lbs. (3300 kg)
Max. Lift Capacity: 5,000 lbs. (2,270 kg)
SAE J1197 Rating, Flat: 2,500 lbs. (1,130 kg)
SAE J1197 Rating, On Ramp: 1,800 lbs. (820 kg)
Heavy Duty "Parallel Lift" System Loader Arms
Heavy Duty Quick Hitch System with Hydraulic Lock Valve Control from Operator Seat
Mechanical Self Leveling System
Attachment Lift Height Up To 9.8ft (3.0m)
Bucket Breakout Force: 7,275 lbs. (3300 kg)
Max. Lift Capacity: 5,000 lbs. (2,270 kg)
SAE J1197 Rating, Flat: 2,500 lbs. (1,130 kg)
SAE J1197 Rating, On Ramp: 1,800 lbs. (820 kg)
Overall Dimensions:
Length: 264"
Width: 72"
Height: 98"
Weight: 9,900 Lbs.
Length: 264"
Width: 72"
Height: 98"
Weight: 9,900 Lbs.
Location: Canada
