NEW X-MINE XT07

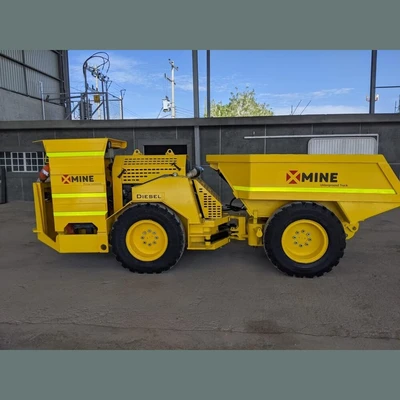

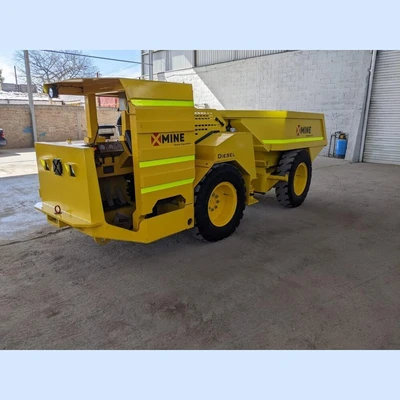

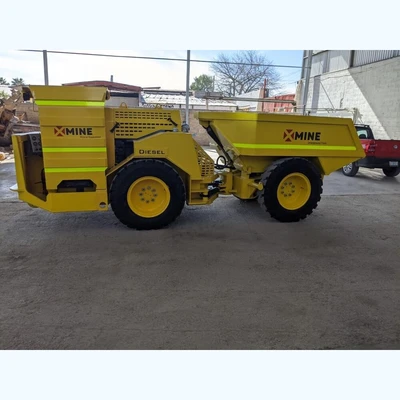

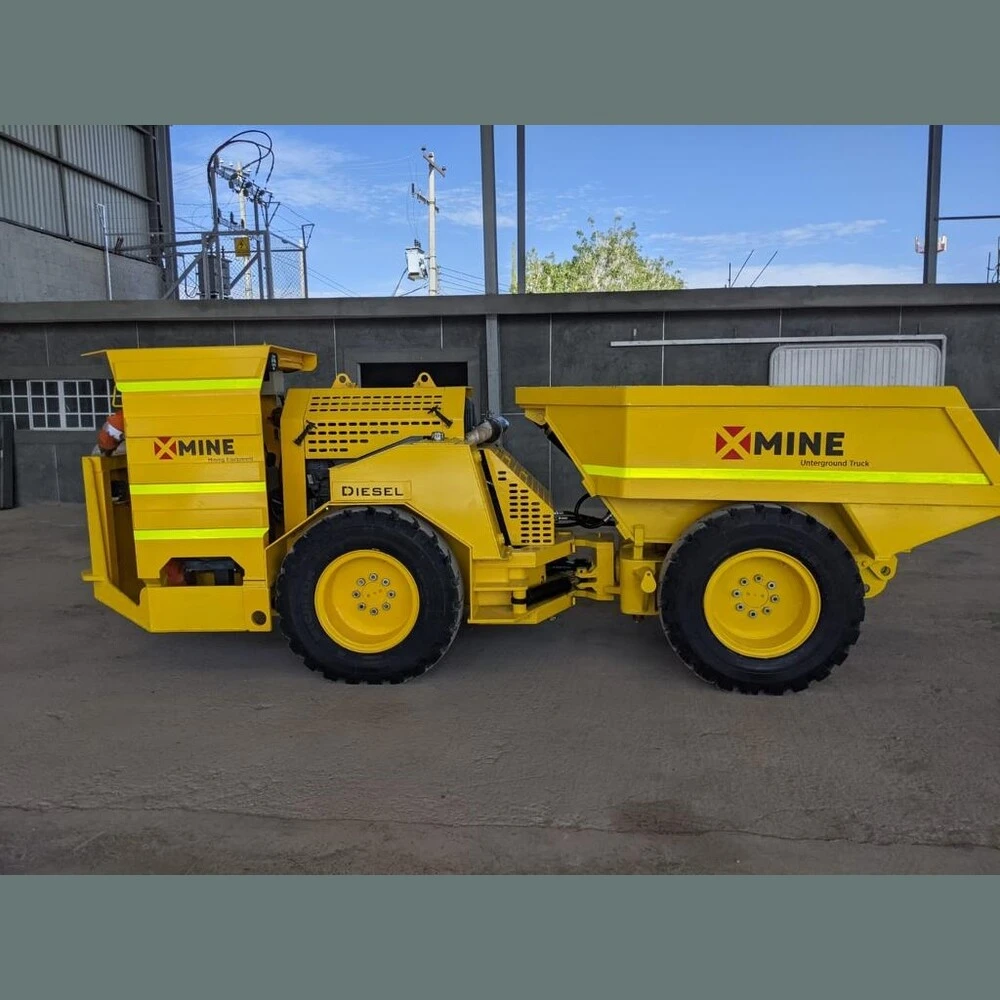

X-Mine XT07 Underground Haul Truck
Make: X-Mine
Model: XT07
Type: Narrow Profile End Dump Truck
Hours: 0
Condition: New, Unused
General Model Specifications:
Weights:
Payload: 6,600 kg (14,500 lbs.)
Machine Weight (Empty): 6,500 kg (14,300 lbs.)
Machine Weight (Loaded): 13,100 kg (28,800 lbs.)
Volume:
Struck: 2.7m³ (3.5yd³)
Heaped: 3.4m³ (4.4yd³)
Dimensions:
Length: 5,300mm (17ft 4in)
Width: 1,651mm (5ft 5in)
Height @ Canopy: 1,910mm (6ft 3in)
Height @ Box: 1,655mm (5ft 5in)
Turning Radius:
Inside: 2,060mm (6ft 9in)
Outside: 4,065mm (13ft 4in)
Angle: 40°

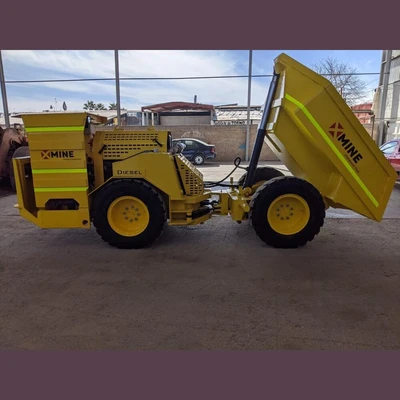

Discharging:
Discharge Time: 13 Seconds
Maximum Dump Angle: 46°
Height @ Max Dump Angle: 2,780mm (9ft 1in)
Engine:
Make/Model: Deutz BF4L914
Cylinders: 4
Power: 71.7kW (96HP) @ 2500 RPM
Turbocharged: Yes
Starter: 24V
Cooling: Integrated Oil Cooled
Transmission
Make: Dana/Spicer 18000 Series w/Torque Converter
Tires:
Make/Model: 9.00 R20 Xmine D2
Brakes:
Service: 4-Wheel Spring Applied Hydraulically Released Fully Enclosed Wet Disc Brakes
Parking: 4-Wheel Spring Applied hydraulically Released Fully Enclosed Wet Disc Brakes
Automatic Brake: Applies Brake in case of Engine Failure or Pressure Drop
Tank Capacities:
Diesel Tank: 81L (21 US Gal)
Hydraulic Oil Tank: 65L (17 US Gal)
Driving Speeds:
First Gear: 6.1 km/h (3.6 mph)
Second Gear: 11.6 km/h (7.2 mph)
Third Gear: 20.5 km/h (12.7 mph)
Hydraulic System:
Hydraulic Pressure: 13.8 MPa (2,000 PSI)
Pressure Accumulator with Charge Valve
Dump Cylinder: 1 Double Acting Cylinder
102mm (4in) Bore x 64mm (2.5in) Rod Diameter
Steering Cylinders: 2 Double Acting Cylinder
83mm (3.25in) Bore x 44mm (1.75in) Rod Diameter
Electrical System:
24V Negative Ground
80A Alternator for Deutz Engines
Main Electric Cut-Off Switch
Heavy Duty Reverse Camera with 7in Display
2 Heavy Duty Batteries
Signal Horn
Back Up Alarm
IP 67 Approved Front and Rear LED Lights
Heat Resistant, Waterproof, Sealed Electric Wire Harness
Weights:
Payload: 6,600 kg (14,500 lbs.)
Machine Weight (Empty): 6,500 kg (14,300 lbs.)
Machine Weight (Loaded): 13,100 kg (28,800 lbs.)
Payload: 6,600 kg (14,500 lbs.)
Machine Weight (Empty): 6,500 kg (14,300 lbs.)
Machine Weight (Loaded): 13,100 kg (28,800 lbs.)
Volume:
Struck: 2.7m³ (3.5yd³)
Heaped: 3.4m³ (4.4yd³)
Struck: 2.7m³ (3.5yd³)
Heaped: 3.4m³ (4.4yd³)
Dimensions:
Length: 5,300mm (17ft 4in)
Width: 1,651mm (5ft 5in)
Height @ Canopy: 1,910mm (6ft 3in)
Height @ Box: 1,655mm (5ft 5in)
Length: 5,300mm (17ft 4in)
Width: 1,651mm (5ft 5in)
Height @ Canopy: 1,910mm (6ft 3in)
Height @ Box: 1,655mm (5ft 5in)
Turning Radius:
Inside: 2,060mm (6ft 9in)
Outside: 4,065mm (13ft 4in)
Angle: 40°
Inside: 2,060mm (6ft 9in)
Outside: 4,065mm (13ft 4in)
Angle: 40°
Discharging:
Discharge Time: 13 Seconds
Maximum Dump Angle: 46°
Height @ Max Dump Angle: 2,780mm (9ft 1in)
Discharge Time: 13 Seconds
Maximum Dump Angle: 46°
Height @ Max Dump Angle: 2,780mm (9ft 1in)
Engine:
Make/Model: Deutz BF4L914
Cylinders: 4
Power: 71.7kW (96HP) @ 2500 RPM
Turbocharged: Yes
Starter: 24V
Cooling: Integrated Oil Cooled
Make/Model: Deutz BF4L914
Cylinders: 4
Power: 71.7kW (96HP) @ 2500 RPM
Turbocharged: Yes
Starter: 24V
Cooling: Integrated Oil Cooled
Transmission
Make: Dana/Spicer 18000 Series w/Torque Converter
Make: Dana/Spicer 18000 Series w/Torque Converter
Tires:
Make/Model: 9.00 R20 Xmine D2
Make/Model: 9.00 R20 Xmine D2
Brakes:
Service: 4-Wheel Spring Applied Hydraulically Released Fully Enclosed Wet Disc Brakes
Parking: 4-Wheel Spring Applied hydraulically Released Fully Enclosed Wet Disc Brakes
Automatic Brake: Applies Brake in case of Engine Failure or Pressure Drop
Service: 4-Wheel Spring Applied Hydraulically Released Fully Enclosed Wet Disc Brakes
Parking: 4-Wheel Spring Applied hydraulically Released Fully Enclosed Wet Disc Brakes
Automatic Brake: Applies Brake in case of Engine Failure or Pressure Drop
Tank Capacities:
Diesel Tank: 81L (21 US Gal)
Hydraulic Oil Tank: 65L (17 US Gal)
Diesel Tank: 81L (21 US Gal)
Hydraulic Oil Tank: 65L (17 US Gal)
Driving Speeds:
First Gear: 6.1 km/h (3.6 mph)
Second Gear: 11.6 km/h (7.2 mph)
Third Gear: 20.5 km/h (12.7 mph)
First Gear: 6.1 km/h (3.6 mph)
Second Gear: 11.6 km/h (7.2 mph)
Third Gear: 20.5 km/h (12.7 mph)
Hydraulic System:
Hydraulic Pressure: 13.8 MPa (2,000 PSI)
Pressure Accumulator with Charge Valve
Dump Cylinder: 1 Double Acting Cylinder
102mm (4in) Bore x 64mm (2.5in) Rod Diameter
Steering Cylinders: 2 Double Acting Cylinder
83mm (3.25in) Bore x 44mm (1.75in) Rod Diameter
Hydraulic Pressure: 13.8 MPa (2,000 PSI)
Pressure Accumulator with Charge Valve
Pressure Accumulator with Charge Valve
Dump Cylinder: 1 Double Acting Cylinder
102mm (4in) Bore x 64mm (2.5in) Rod Diameter
102mm (4in) Bore x 64mm (2.5in) Rod Diameter
Steering Cylinders: 2 Double Acting Cylinder
83mm (3.25in) Bore x 44mm (1.75in) Rod Diameter
83mm (3.25in) Bore x 44mm (1.75in) Rod Diameter
Electrical System:
24V Negative Ground
80A Alternator for Deutz Engines
Main Electric Cut-Off Switch
Heavy Duty Reverse Camera with 7in Display
2 Heavy Duty Batteries
Signal Horn
Back Up Alarm
IP 67 Approved Front and Rear LED Lights
Heat Resistant, Waterproof, Sealed Electric Wire Harness
24V Negative Ground
80A Alternator for Deutz Engines
Main Electric Cut-Off Switch
Heavy Duty Reverse Camera with 7in Display
2 Heavy Duty Batteries
Signal Horn
Back Up Alarm
IP 67 Approved Front and Rear LED Lights
Heat Resistant, Waterproof, Sealed Electric Wire Harness
View Spec Sheet Below
Location: Mexico
