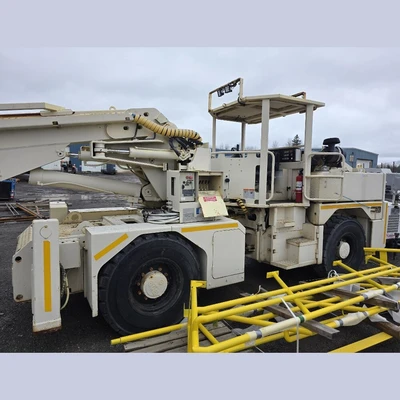

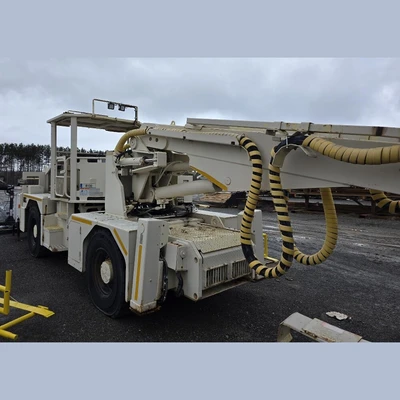

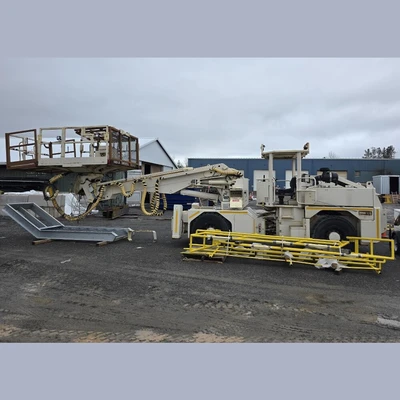

USED 2001 NORMET CORPORATION HIMEC 9915 BA

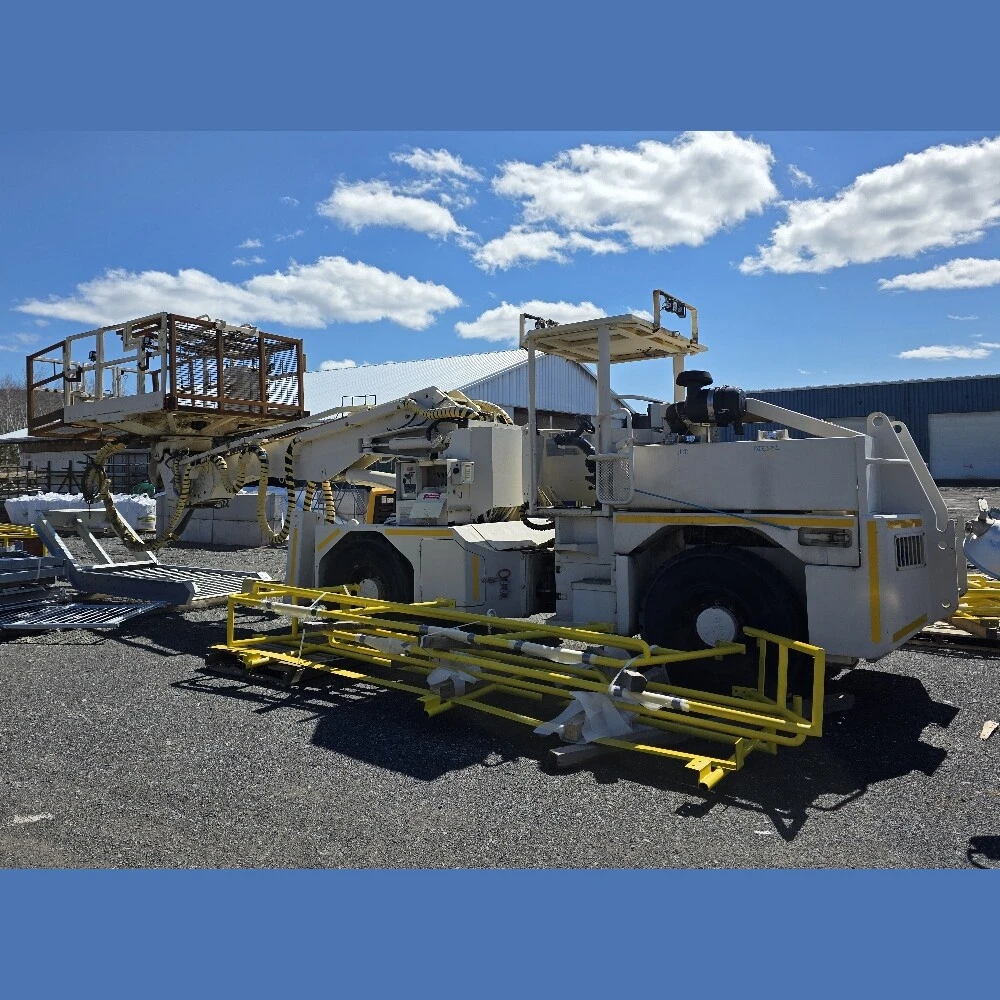

Normet Himec 9915BA Service Platform

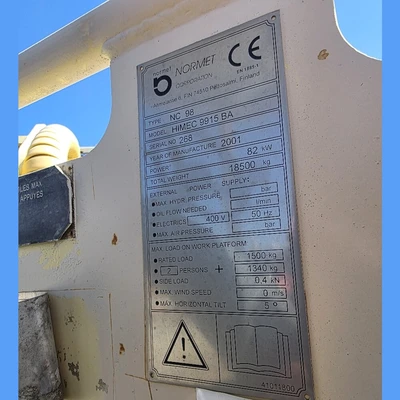

Make: Normet Corporation
Model: Himec 9915 BA
Type: Service Platform Vehicle - Single Boom Roof Support Lifter
Year: 2001
Hours: 1,924 Hours
Condition: Used Condition - Freshly Serviced
Carrier: NC 98
Power: 82kW
Total Weight: 18,500 kg
Work Platform Rated Load: 1500 kg
(2) Persons + 1340 kg
Side Load: 0.4kN
Max Horizontal Tilt: 5°
(2) Persons + 1340 kg
Side Load: 0.4kN
Max Horizontal Tilt: 5°
Pipe/Screen Manipulator Arm Included
Included Spare Parts:
(2) Shuttle Valve - PN: 56043110
(1) V-Belt - PN: 57402299
(1) V-Belt - PN: 57402141
(2) Pressure Accumulator - PN: 100131769
(1) Pressure Accumulator - PN: 100131950
(1) Filter - PN: 100233678
(2) Fuel Filter - PN: 56052426
(1) Oil Filter Cartridge - PN: 56041494
(1) Oil Filter Cartridge - PN: 57959017
(1) Safety Cartridge - PN: 56052665
(2) Brake Valve - PN: 100135535
(2) Shuttle Valve - PN: 56043110
(1) V-Belt - PN: 57402299
(1) V-Belt - PN: 57402141
(2) Pressure Accumulator - PN: 100131769
(1) Pressure Accumulator - PN: 100131950
(1) Filter - PN: 100233678
(2) Fuel Filter - PN: 56052426
(1) Oil Filter Cartridge - PN: 56041494
(1) Oil Filter Cartridge - PN: 57959017
(1) Safety Cartridge - PN: 56052665
(2) Brake Valve - PN: 100135535
General Model Specifications:
Dimensions:
Length: 9,910 mm
Width: 2,300 mm
Height: 2,900 mm
Wheel Base: 3,350 mm
Ground Clearance: 380 mm
Outer Turning Radius: 8,050 mm
Inner Turning Radius: 3,590 mm
Weight, Operating: 19,100 kg

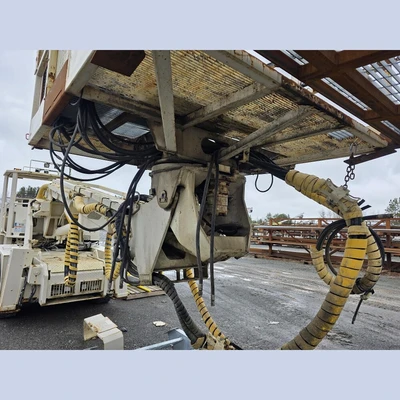

Normet Superboom NSB 900:
Boom Lift: -20° to +53°
Boom Slew: +/- 30°
Telescope: 2,400 mm

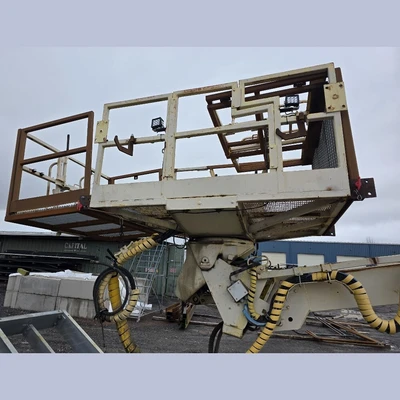

BA 15 Platform:
Working Area: 2.16 m x 2.30 m
Lifting Capacity: 1,500 kg
Max Platform Height: 8.9 m
Vertical Working Reach, Max: 11.0 m
Vertical Working Reach (FACE): 10.3 m
Archlift:
Max Load: 1200 kg
Max Lifting Reach: 11.1 m
Support Legs: Hydraulically-Operated, (1) Pair at Front; (1) Pair at Rear
Working Lights:
Work Platform: (2) 70 W
Carrier: (2) 70 W

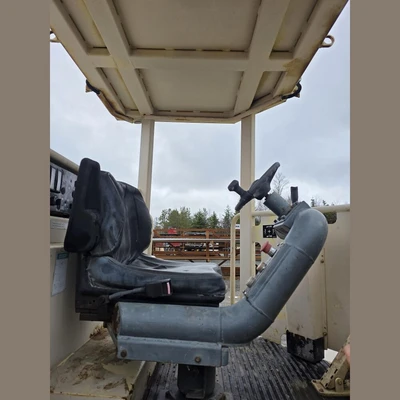

Safety Canopy: Over Drivers Seat - Fulfills the European Safety Regulations
NC98 Carrier:
Designed for Underground Use
Drive: 4-Wheel Drive

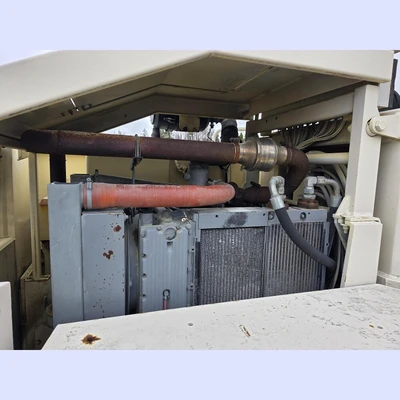

Diesel Engine: 81kW
Max Tractive Effort: 85kN
Performance: Max 25 km/h
Dimensions:
Length: 9,910 mm
Width: 2,300 mm
Height: 2,900 mm
Wheel Base: 3,350 mm
Ground Clearance: 380 mm
Outer Turning Radius: 8,050 mm
Inner Turning Radius: 3,590 mm
Weight, Operating: 19,100 kg
Length: 9,910 mm
Width: 2,300 mm
Height: 2,900 mm
Wheel Base: 3,350 mm
Ground Clearance: 380 mm
Outer Turning Radius: 8,050 mm
Inner Turning Radius: 3,590 mm
Weight, Operating: 19,100 kg
Normet Superboom NSB 900:
Boom Lift: -20° to +53°
Boom Slew: +/- 30°
Telescope: 2,400 mm
Boom Lift: -20° to +53°
Boom Slew: +/- 30°
Telescope: 2,400 mm
BA 15 Platform:
Working Area: 2.16 m x 2.30 m
Lifting Capacity: 1,500 kg
Max Platform Height: 8.9 m
Vertical Working Reach, Max: 11.0 m
Vertical Working Reach (FACE): 10.3 m
Working Area: 2.16 m x 2.30 m
Lifting Capacity: 1,500 kg
Max Platform Height: 8.9 m
Vertical Working Reach, Max: 11.0 m
Vertical Working Reach (FACE): 10.3 m
Archlift:
Max Load: 1200 kg
Max Lifting Reach: 11.1 m
Max Load: 1200 kg
Max Lifting Reach: 11.1 m
Support Legs: Hydraulically-Operated, (1) Pair at Front; (1) Pair at Rear
Working Lights:
Work Platform: (2) 70 W
Carrier: (2) 70 W
Work Platform: (2) 70 W
Carrier: (2) 70 W
Safety Canopy: Over Drivers Seat - Fulfills the European Safety Regulations
NC98 Carrier:
Designed for Underground Use
Drive: 4-Wheel Drive
Diesel Engine: 81kW
Max Tractive Effort: 85kN
Performance: Max 25 km/h
Designed for Underground Use
Drive: 4-Wheel Drive
Diesel Engine: 81kW
Max Tractive Effort: 85kN
Performance: Max 25 km/h
Location: Atlantic Canada
