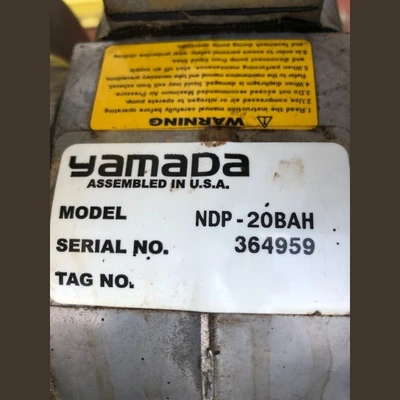

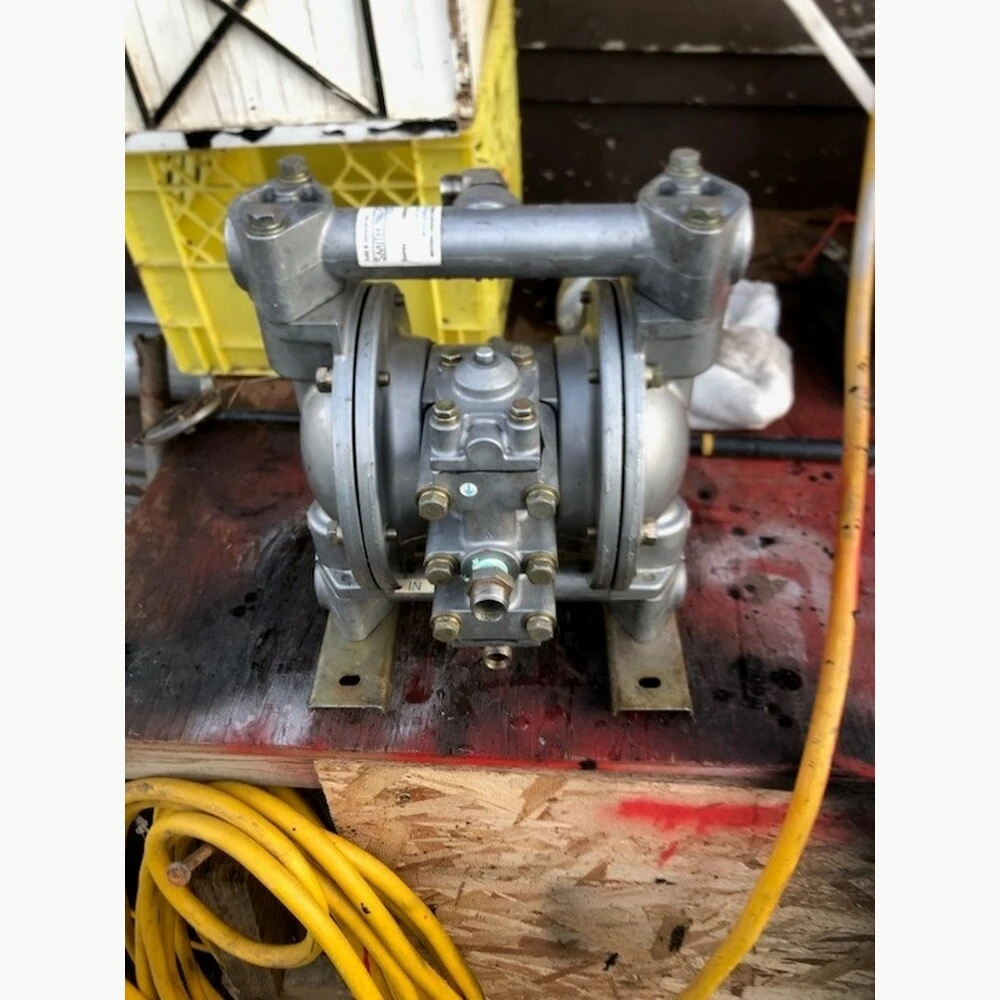

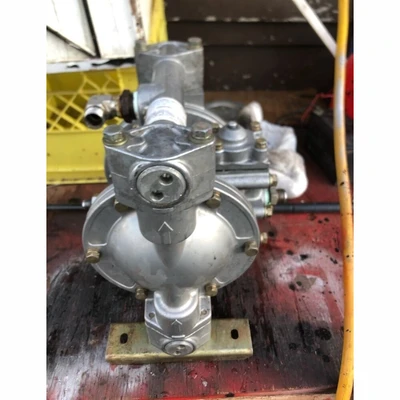

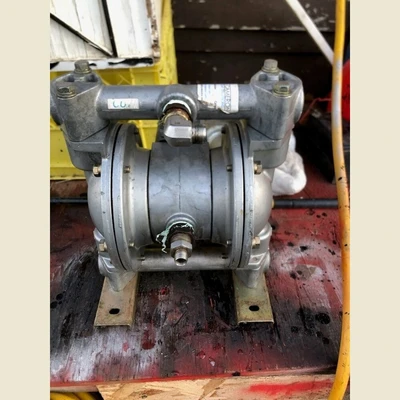

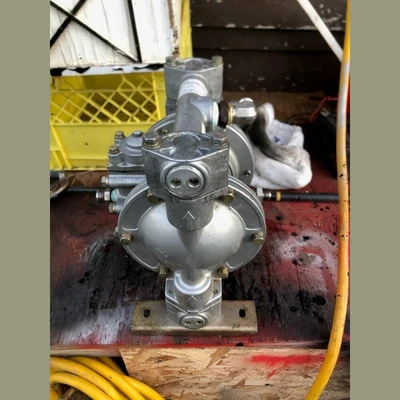

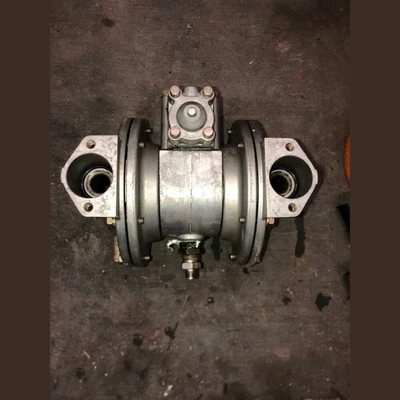

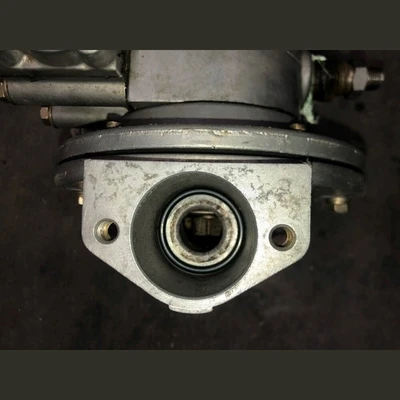

Yamada NDP-20BAH Diaphragm Pump
Make: Yamada
Model: NDP-20BAH
Type: Diaphragm Pump
Style: Air Powered Double Diaphragm (AODD) Pump
Condition: Used Condition - Used Once
General Model Specifications:
Inlet: 3/4" (0.75in)
Outlet: 3/4" (0.75in)
Max Suction Lift: 18ft
Max Flow: 31.7 GPM
Discharge Volume Per Cycle: 0.163 Gallons
Max Cycles Per Minute: 195
Max Temp: 248°F (120°C)
Max Solid Handling: 1/16" (2mm)
Body Material: Aluminum
Air Motor Material: Aluminum
Air Exhaust: 3/8" Female NPT (includes Silencer)
Air Inlet: 1/4" Female NPT (includes Ball Valve)
Air Supply Pressure: 20-100 PSI
Connection Type: FNPT
Diaphragm: Hytrel (TPE)
Inlet: 3/4" (0.75in)
Outlet: 3/4" (0.75in)
Max Suction Lift: 18ft
Max Flow: 31.7 GPM
Discharge Volume Per Cycle: 0.163 Gallons
Max Cycles Per Minute: 195
Max Temp: 248°F (120°C)
Max Solid Handling: 1/16" (2mm)
Body Material: Aluminum
Air Motor Material: Aluminum
Air Exhaust: 3/8" Female NPT (includes Silencer)
Air Inlet: 1/4" Female NPT (includes Ball Valve)
Air Supply Pressure: 20-100 PSI
Connection Type: FNPT
Diaphragm: Hytrel (TPE)
Dimensions:
Depth: 12.5in
Width: 9.8in
Height: 12.6in
Weight: 19.8 lbs. (9.0 kg)
Depth: 12.5in
Width: 9.8in
Height: 12.6in
Weight: 19.8 lbs. (9.0 kg)
Location: Western Canada
