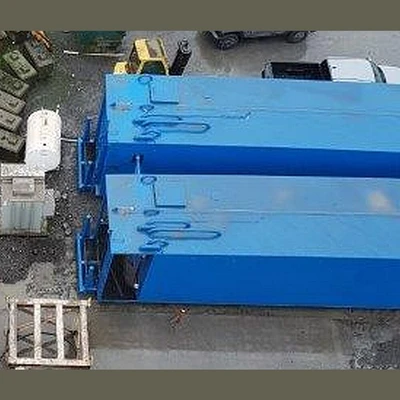

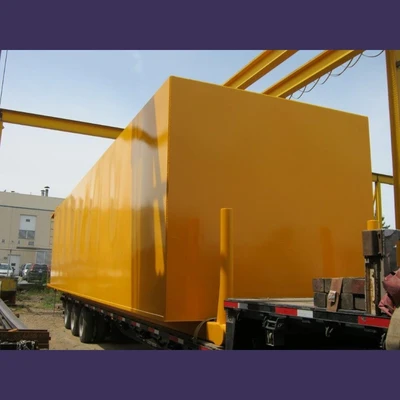

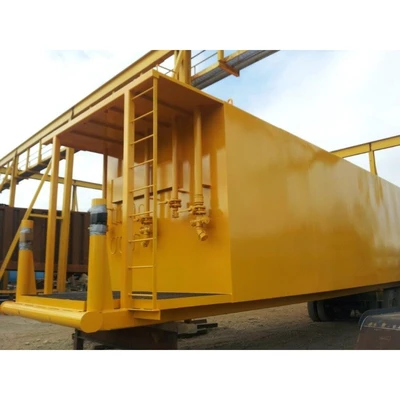

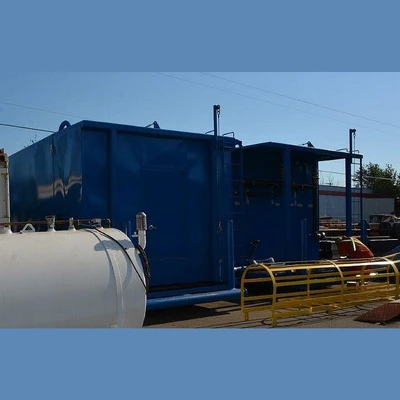

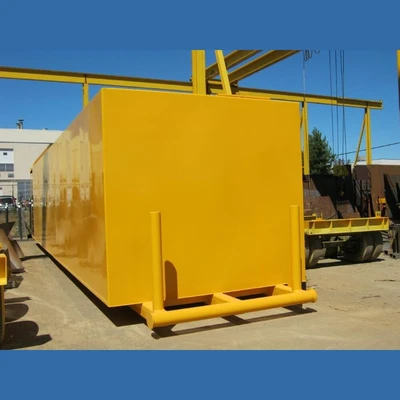

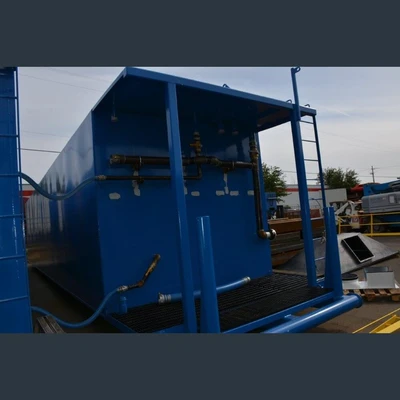

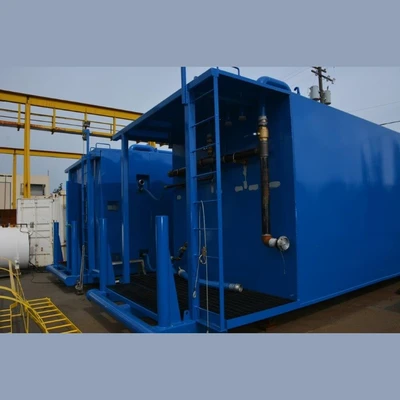

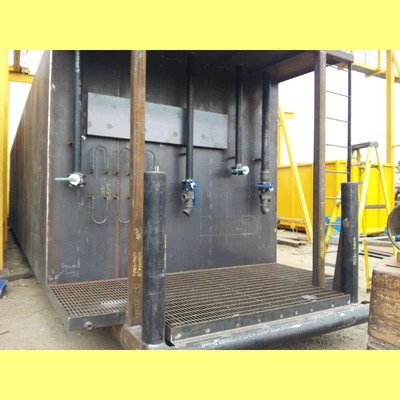

100m³ Steel Double Wall Tanks

100m³ Steel Double Wall Tanks
Perfect for Storage of Invert and Drilling Fluids Due to the Double-Wall Containment.

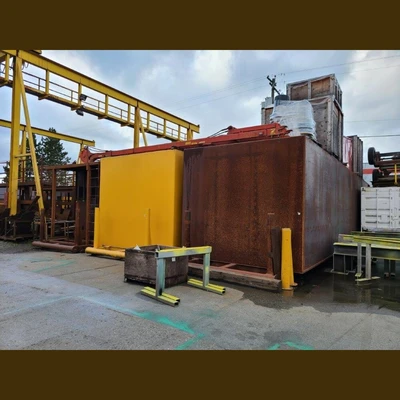

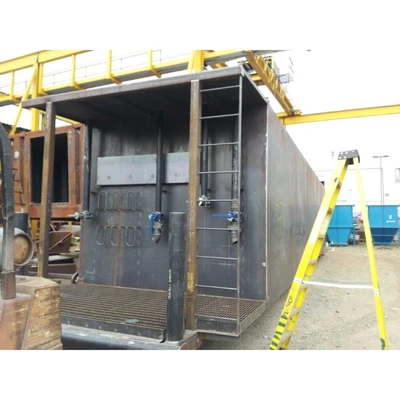

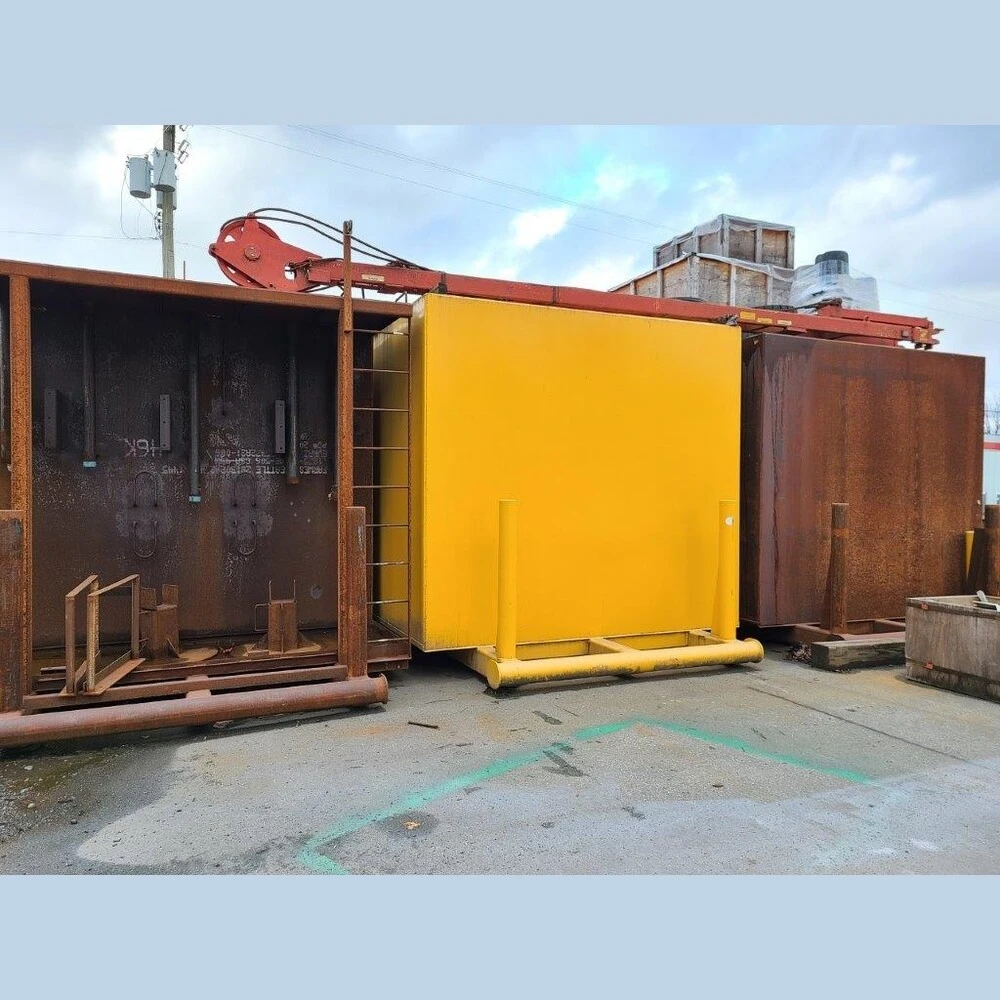

Quantity: 1 Tank Remaining - Unpainted
Model/Type: Dual Compartment Tank
Inner Tank Capacity: 100m³ (26,417.2 US Gallons) Divided into Two Compartments (40m³/60m³)
Total Containment Volume: 139m³ Per Tank
40m³ Overfill Containment Per Tank
Primary (Master) Tank Additional Details:
(2) 3in Fill Lines
(2) 4in Suction Lines
General Construction:
Sealed Double Wall Construction
No Through-The-Wall Penetration
All Fill and Suction Lines Pass Through the Roof
3in Fill and Recirculation Lines
4in Suction Lines Reduced to 3in Connection Point
Sight Glass for Containment Tank Inspection
Spill Containment with Bar Grate Under Roof
4in Suction for Containment Tank Drain in Case of Overflow

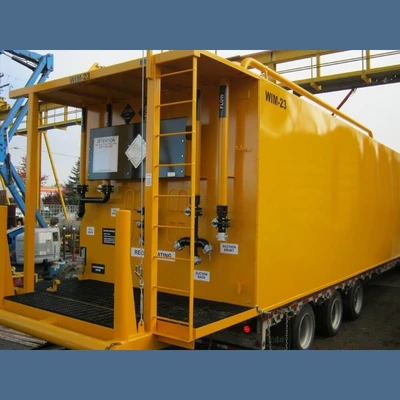

Roof Access Ladder with Fall Restraint
Full Length Fall Restraint Cable on the Roof
24in Hinged Manway on the Roof
Overall Dimensions:
Skid Length: 50ft (15.24m)
Width: 10ft 6in (3.2m)
Overall Height: 11ft 9in (3.58m)
Dry Weight: 44,000 Lbs. (19,958kg)
Location: Western Canada
