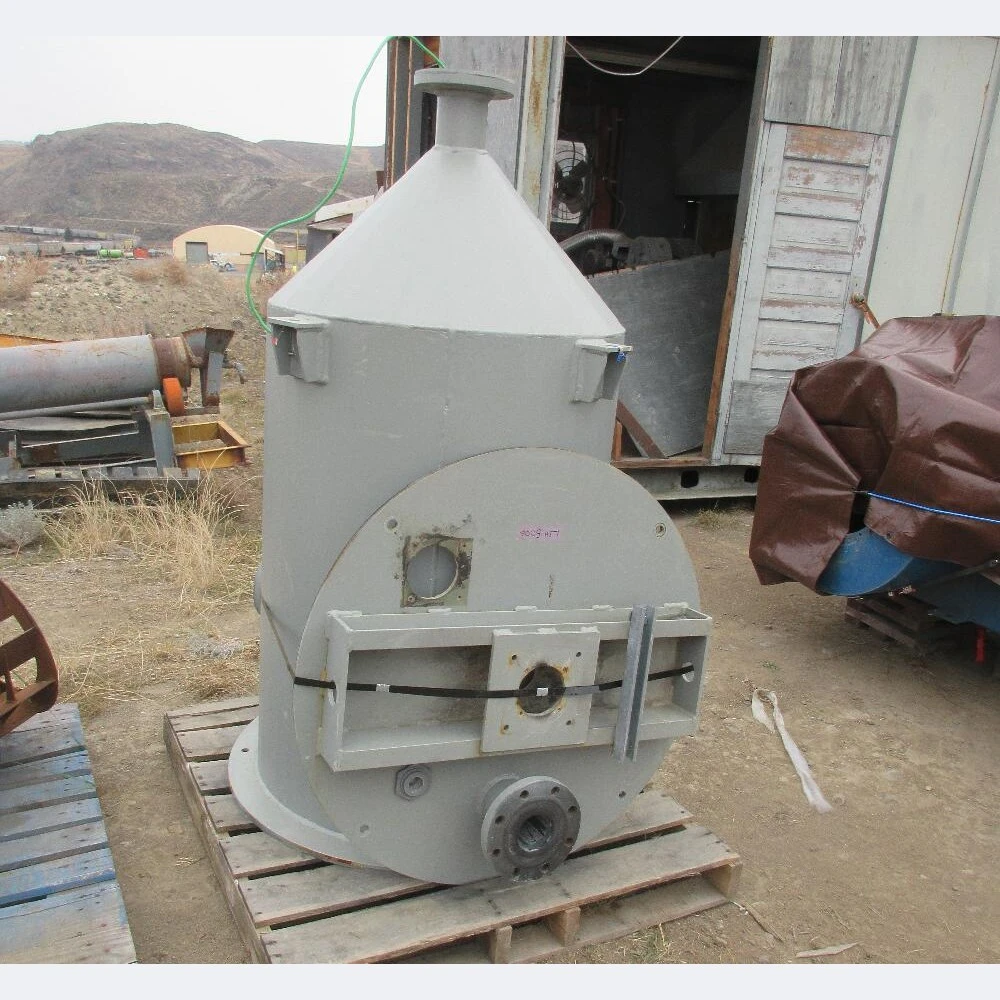

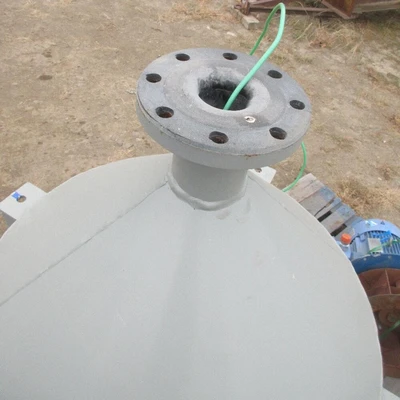

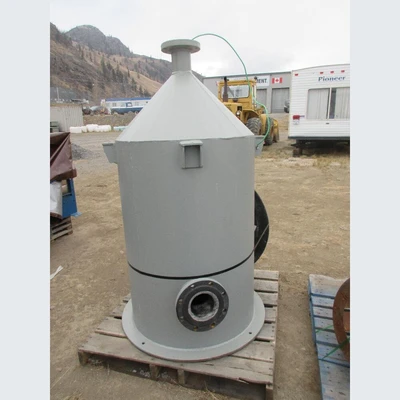

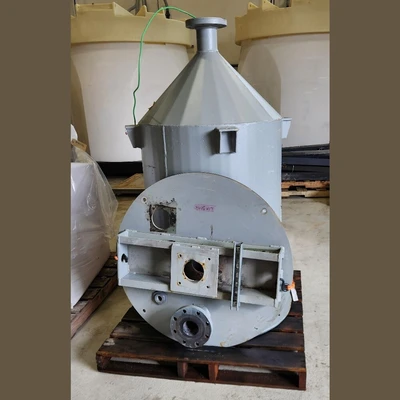

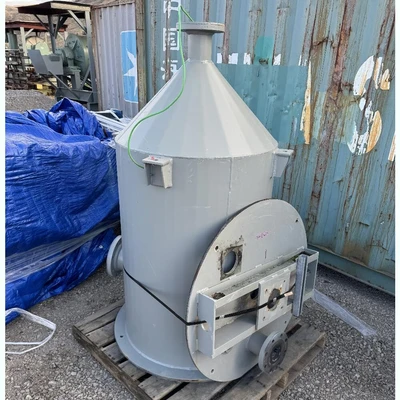

130 Gallon Rubber-Lined Tank

130 Gallon Rubber-Lined Tank
Capacity:
Operating Volume: 130 U.S. Gallons
Total Volume: 190 U.S. Gallons
Operating Volume: 130 U.S. Gallons
Total Volume: 190 U.S. Gallons
Construction: Mild Steel
Liner: Chlorobutyl Rubber Liner
Top Inlet: 3in Dia.
Bottom Discharge: 4in Dia.
Side Discharge: 5in Dia.
Baffled - 3 Baffles, 120° Apart
38in Dia. Top Cover with Bridge Style Motor/Shaft Mounting
Dimensions:
Cylinder Section: 32in Diameter x 48in Long
Cone Section: 32in Dia. Tapering to 4in Dia. x 21in Long
Cylinder Section: 32in Diameter x 48in Long
Cone Section: 32in Dia. Tapering to 4in Dia. x 21in Long
Overall Dimensions:
Diameter: 38in Dia.
Length: 76in
Diameter: 38in Dia.
Length: 76in
Location: Savona, British Columbia, Canada
