USED DONALDSON TORIT CPC-4R

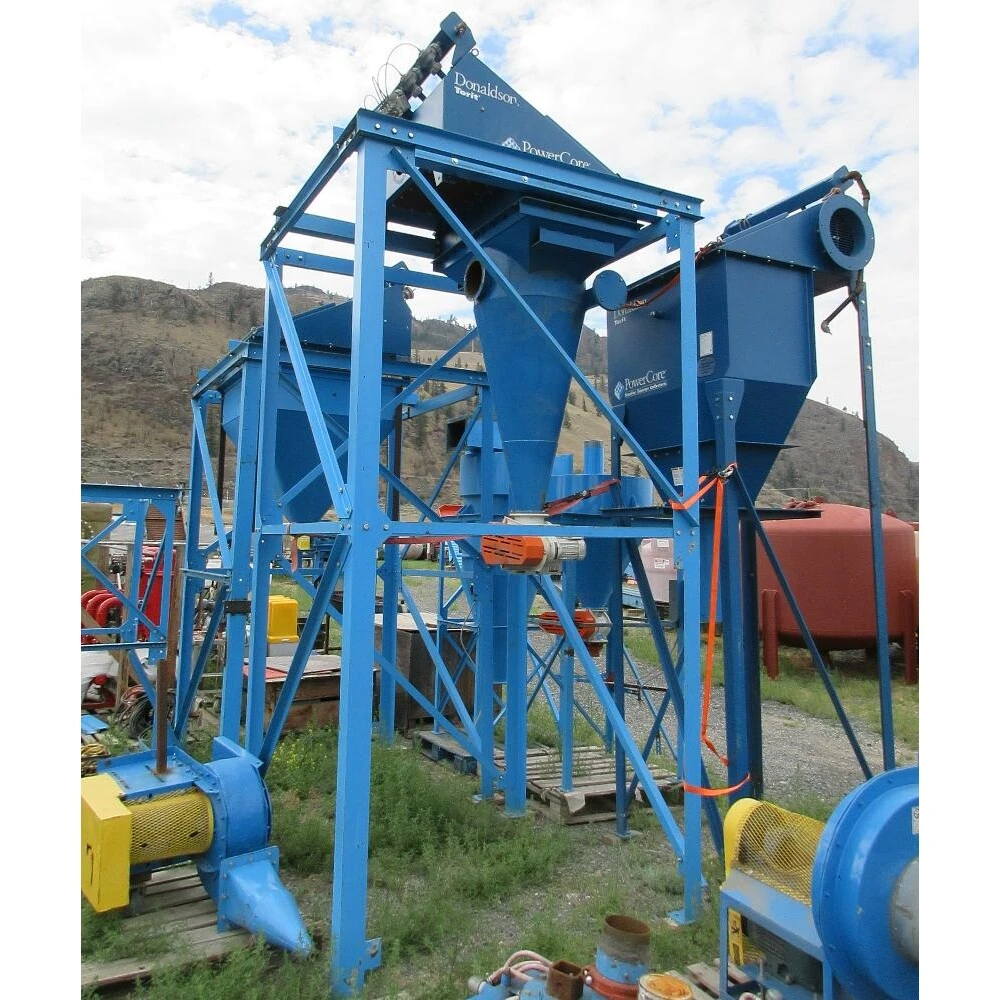

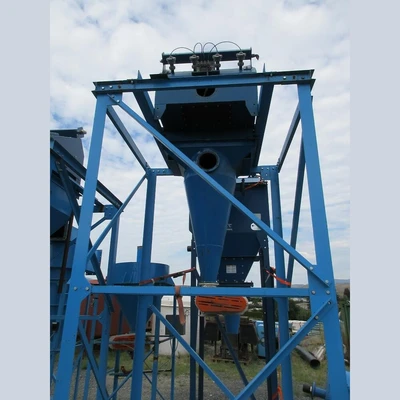

Donaldson Power-Core CPC-4R Dust Collector
Make: Donaldson Torit
Model: CPC-4R

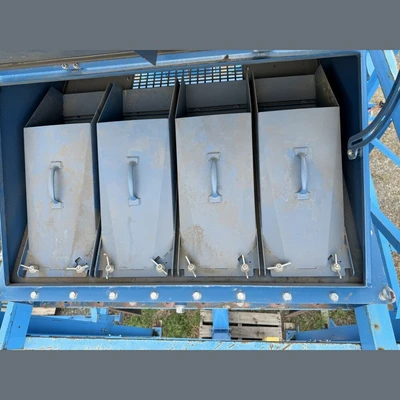

Filter Packs: 4 Packs
Filtration Area: 24.8m²

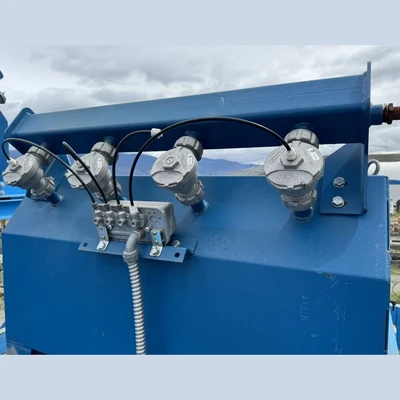

Valves:
4 Goyen Air Operated.
4 Goyen Air Operated.

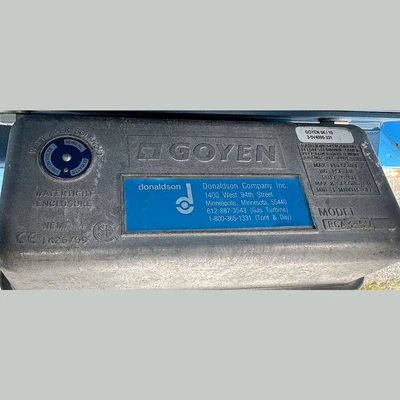

With Goyen RCA3-5V Pilot Solenoid Valve Controller
Dirty Air Inlet: 8in Diameter
Clean Air Outfeed: 8in Diameter
Range: 1,400 - 2,700 CFM
Working Compressed Air Pressure: 6.2 bar (90 PSIG)
Atmospheric Air Volume (F.A.D. at 12s Intervals): 20m³/h (11.8 CFM)
Pulse Duration: 100ms
Dust Disposal Outlet: 5.5in Diameter
Disposal Cone Hopper: 24in Diameter x 48in Long

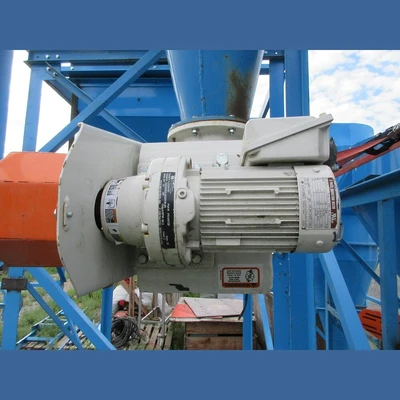

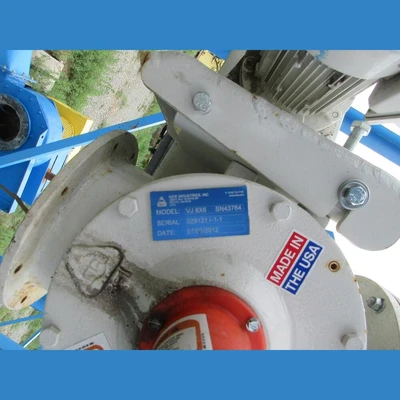

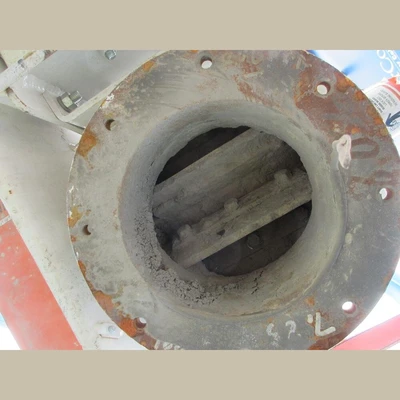

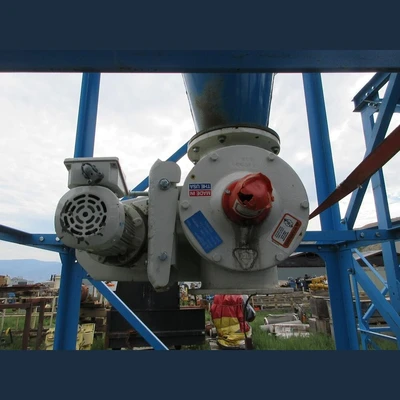

Rotary Valve on Disposal Feed:
Make: Kice
Model: VJ 8x6
Size: 8in x 6in

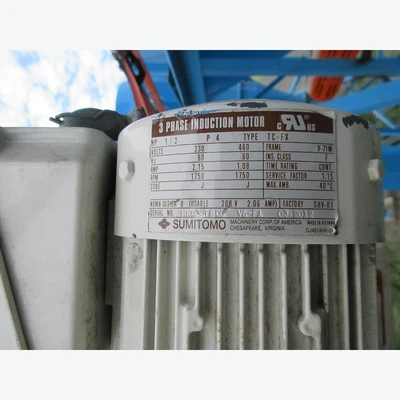

Motor: Sumitomo TEFC Motor
Power Output: 0.5HP
RPM: 1750
Voltage: 230/460 Volts

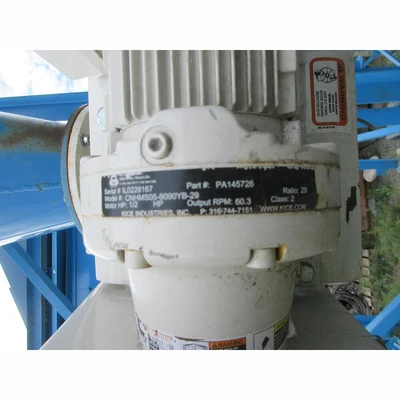

Gearhead: Kice
Model: CNHMS05-6090YB-29
Input HP: 0.5HP
Output RPM: 60.3
Ratio: 29-1
Make: Kice
Model: VJ 8x6
Size: 8in x 6in
Motor: Sumitomo TEFC Motor
Power Output: 0.5HP
RPM: 1750
Voltage: 230/460 Volts
Power Output: 0.5HP
RPM: 1750
Voltage: 230/460 Volts
Gearhead: Kice
Model: CNHMS05-6090YB-29
Input HP: 0.5HP
Output RPM: 60.3
Ratio: 29-1
Model: CNHMS05-6090YB-29
Input HP: 0.5HP
Output RPM: 60.3
Ratio: 29-1
Mounted on 4in x 4in Angle Iron Frame
Overall Dimensions:
Height: 13ft 11in
Width: 6ft
Depth: 6ft
Weight: 563 Kg (Approx.)
Height: 13ft 11in
Width: 6ft
Depth: 6ft
Weight: 563 Kg (Approx.)
Location: Savona, British Columbia, Canada
