15,000 CFM Flex-Kleen Style Dust Collector

15,000 CFM Flex-Kleen Style Dust Collector
Make: Custom Built - Flex-Kleen style
Year: 1995 (Approx.)
Type: Baghouse Dust Collector
Style: Heavy Duty Design
Condition: Unused Surplus
Filter Area: 3,400ft²
Filter Type: Bags (Bags & Cages Not Included)

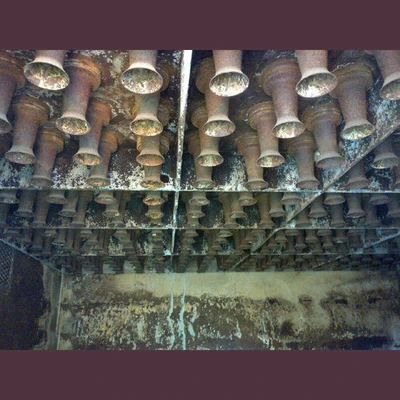

Bag Filter Size: 4.5in Dia. x 10ft Long
# of Filter Bags: 289 Bags
Bag Construction: Cloth (Bags & Cages Not Included)
Bag Filter Size: 4.5in Dia. x 10ft Long
# of Filter Bags: 289 Bags
Bag Construction: Cloth (Bags & Cages Not Included)
Body Dimensions: 11ft 9in x 11ft 9in x 13ft H + 6ft Cone Bottom Approx.

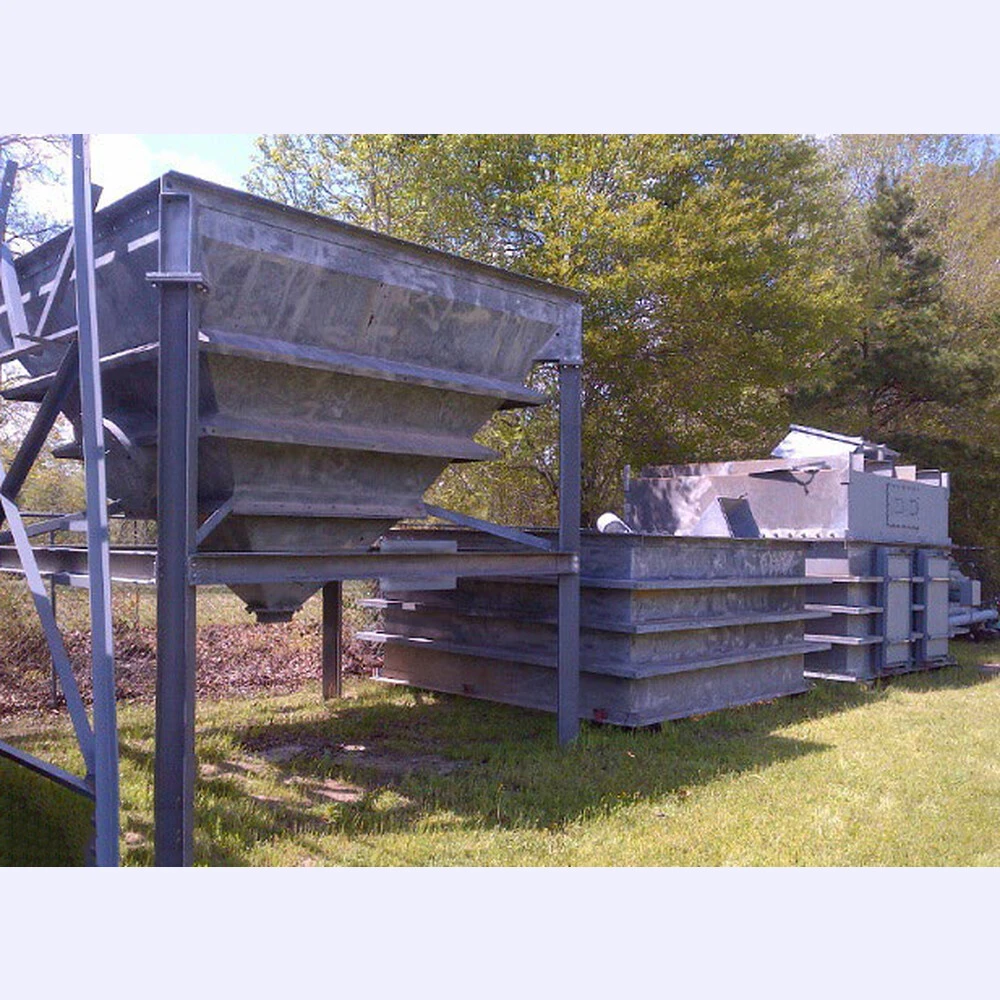

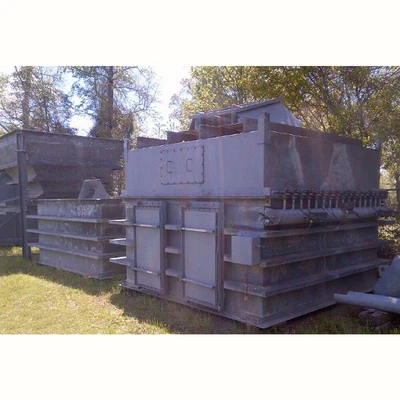

(3) Flanged and Bolted Together Sections - Disassembled for Transport
Body Construction: Carbon Steel, Galvanized
(3) Flanged and Bolted Together Sections - Disassembled for Transport
Body Construction: Carbon Steel, Galvanized

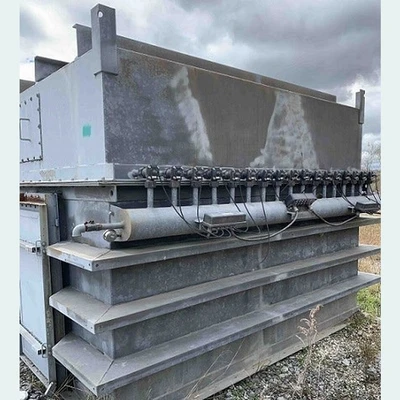

Discharge: Reverse Pulse Jet, Solenoid Controlled, Air Blowback Bag Cleaning
Cloth/Air Ratio: 3-5:1 (Approx.)
Ductwork and Associated Equipment, some Ceramic Lined
Airflow: 15,000 CFM (Approx.)
Blower: 200HP
Airlock: 12in Dia. 3HP Rotary Airlock Valve
Air Connections:
18in Dia. Lower-Shell Inlet, Tangential

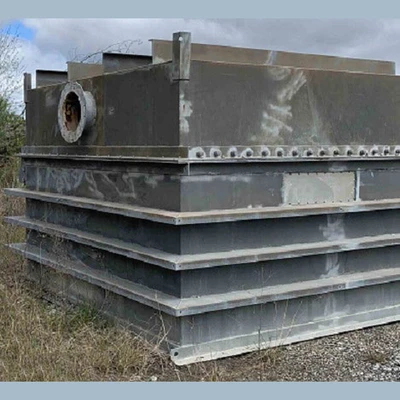

Top Plenum Side Outlet: 18in Dia.
Top Center: 18in MW.
18in Dia. Lower-Shell Inlet, Tangential
Top Plenum Side Outlet: 18in Dia.
Top Center: 18in MW.
Product Connections:

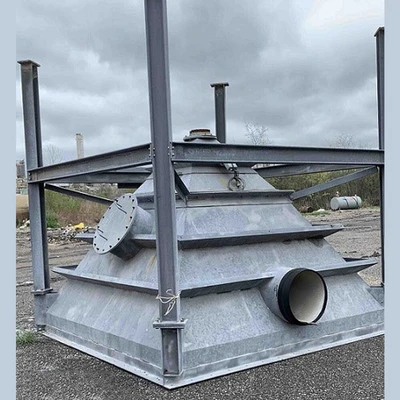

16in Dia. Solids/Dust Discharge in Cone Bottom

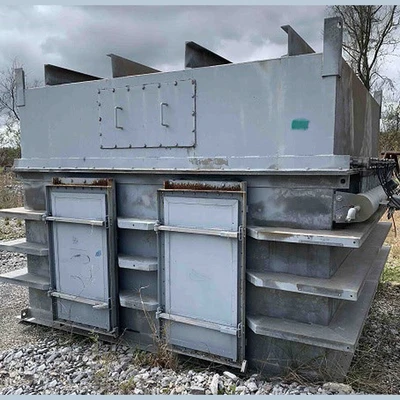

(2) 24in x 36in (Approx.) Hinged Access Panels in Upper Shell Side For Bag Changes
16in Dia. Solids/Dust Discharge in Cone Bottom
(2) 24in x 36in (Approx.) Hinged Access Panels in Upper Shell Side For Bag Changes
(4) Support Legs on Lower Shell Side
Overall Dimensions:
Width: 12ft
Depth: 12ft
Height: 20ft
Width: 12ft
Depth: 12ft
Height: 20ft
Location: Southwest USA
