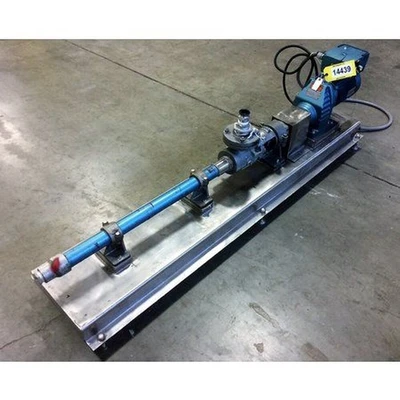

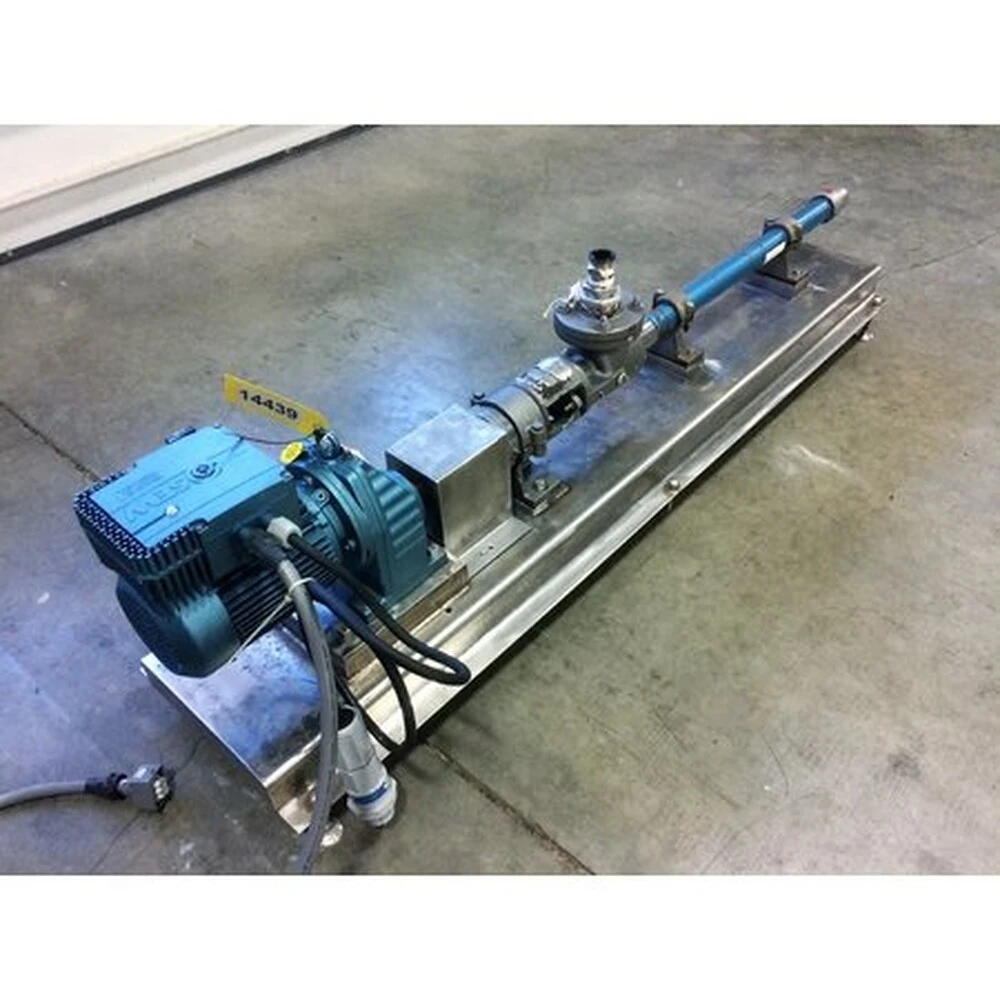

USED MOYNO SSQX-3L4

Make: Moyno
Model: SSQX-3L4
Type: L-Frame Pump
Size: Size 4
Stages: 3-Stage Pumping Element
Construction: Housing is Constructed of 316 Stainless Steel, Stator is Constructed of Nitrile 100
Typical Pump Speeds: 68 RPM – 680 RPM
Flow Rate: Min/Max 1.3 GPM to 13.6 GPM
Temp Rating: 50° Min - 160° Max
Pressure Rating: 225 PSI Max
Base: 18in Wide x 80in Long Formed, Stainless Steel Base with Leveling

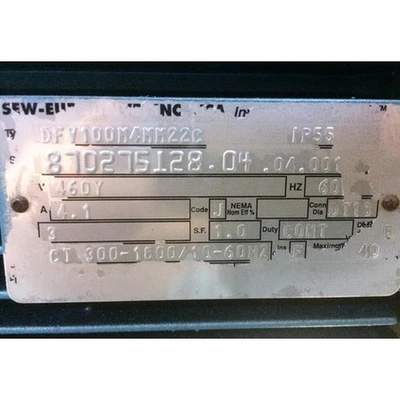

Drive: SEW Eurodrive 5 HP Motor:
Volts: 460V
Amps: 4.1A
Frequency: 60Hz
S.F.: 1.0
Volts: 460V
Amps: 4.1A
Frequency: 60Hz
S.F.: 1.0

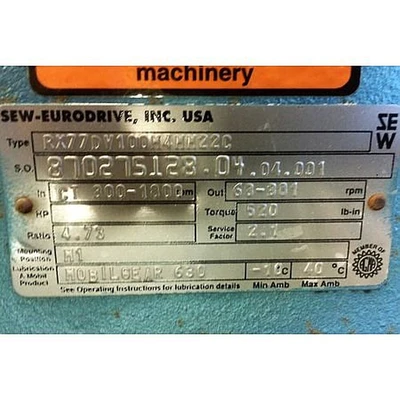

SEW Eurodrive Gear Reducer:
Ratio: 4.73:1.
Torque: 520 lb-in.
Ratio: 4.73:1.
Torque: 520 lb-in.
Dimensions: 82in. x 18in. x 29in. (L x W x H).
Weight: 417 lbs.
