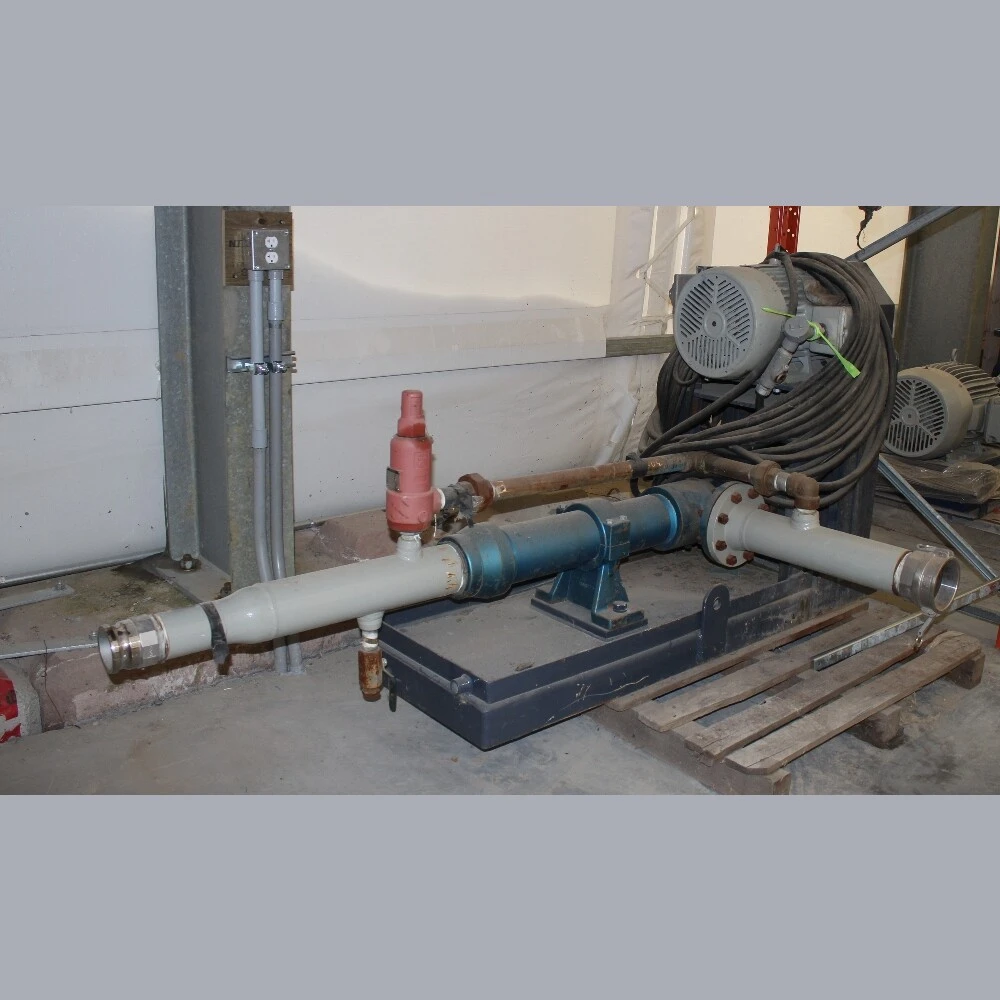

USED MOYNO 2L8 CDY 3AAA

Moyno Progressive Cavity Pump

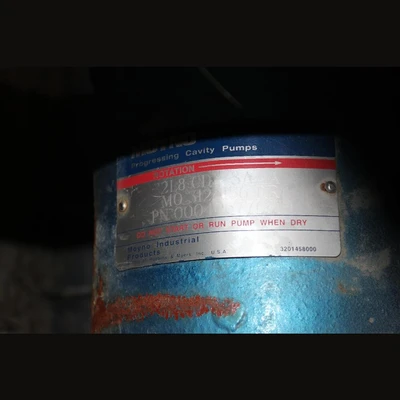

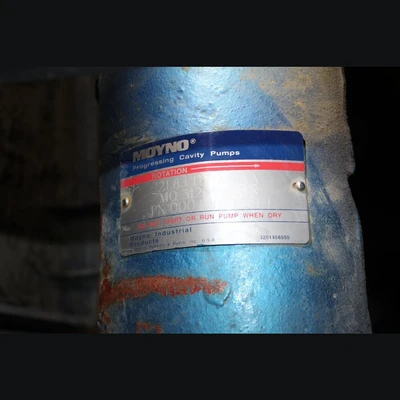

Make: Moyno
Model: 2L8 CDY 3AAA
Style: L-Frame Pump
Type: Progressive Cavity Pump
Capacity: Up to 23m³/hr (100 GPM)
Pressure: Up To 12 bar (175 PSI)
Stage: 2-Stage
Pump Element: Size 8

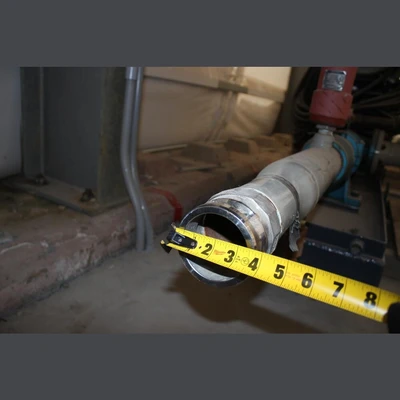

Inlet: 4 Inch Piping

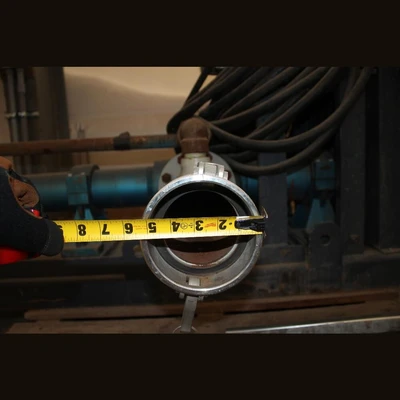

Discharge: 3 Inch PipingView Spec Sheet Below

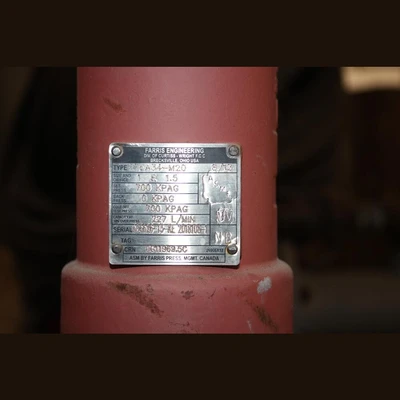

Farris Engineering Pressure Relief Valve
Type: 27EA34-M20
Size: 1E 1.5
Set Pressure: 700 KPAG
Capacity: 227 L/Min
Type: 27EA34-M20
Size: 1E 1.5
Set Pressure: 700 KPAG
Capacity: 227 L/Min

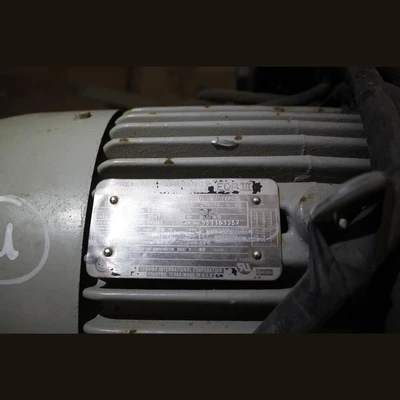

Drive: Toshiba Electric Motor
Model: B0154FLF2USH02
Power Output: 15HP
Voltage: 230/460 Volt
RPM: 1775
Model: B0154FLF2USH02
Power Output: 15HP
Voltage: 230/460 Volt
RPM: 1775
Location: Western Canada
