USED MOYNO R27DT90S4

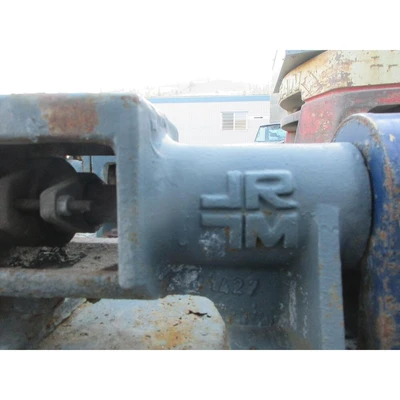

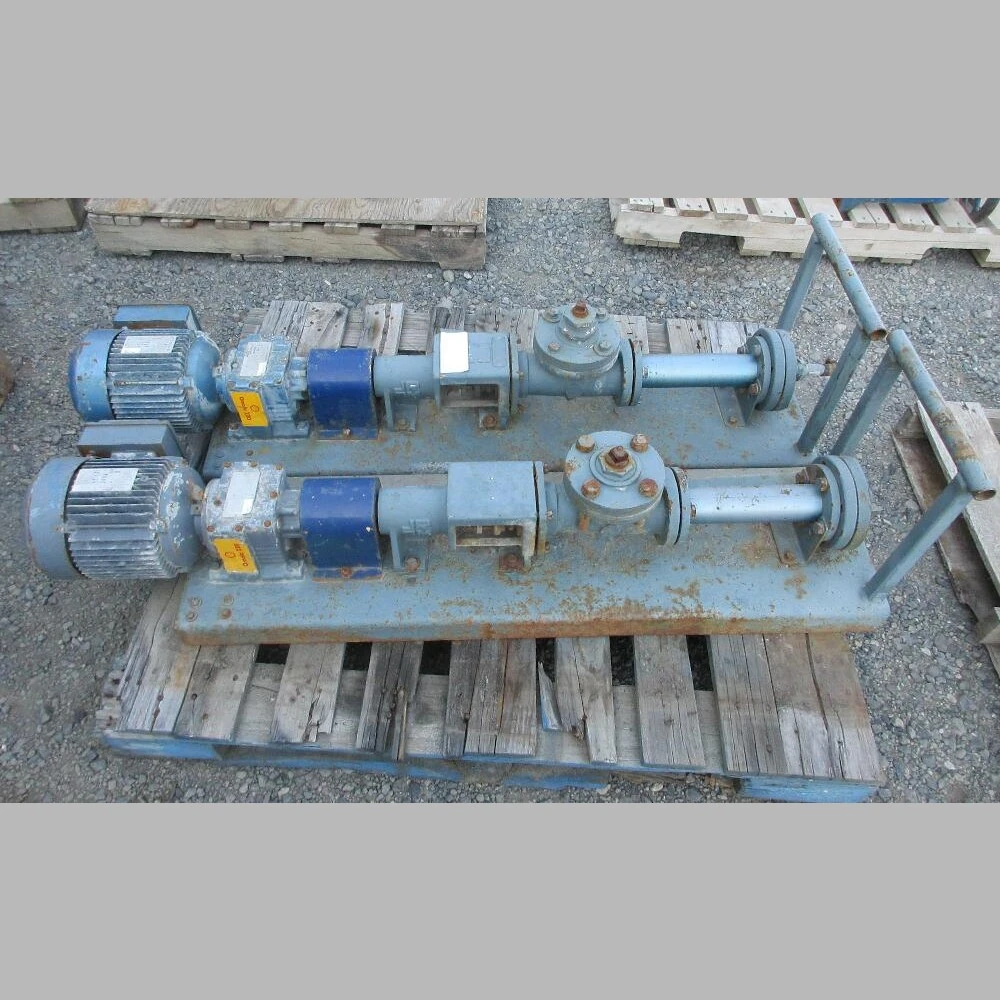

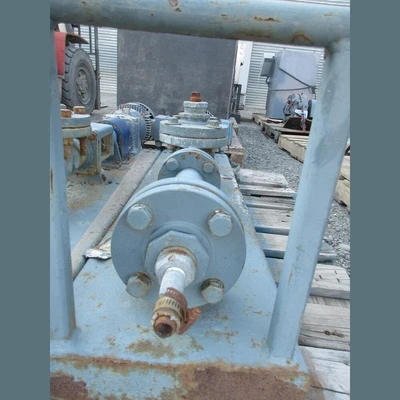

Moyno Progressive Cavity Pump
Quantity: 2 Units
Make: Moyno
Moyno: A2C CQD 3 AAA
Pump Chamber Length: 10in
Suction Inlet: 2in
Discharge Outlet: 2in
Capacity: 1.5gal per 100RPM (3.39GPM)

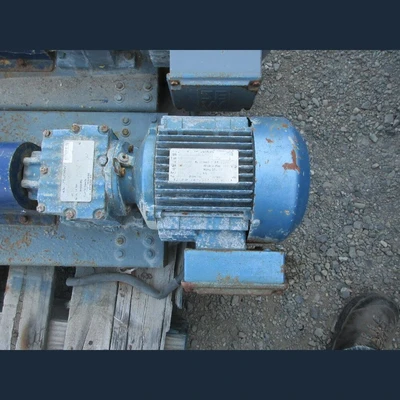

Drive: Electric

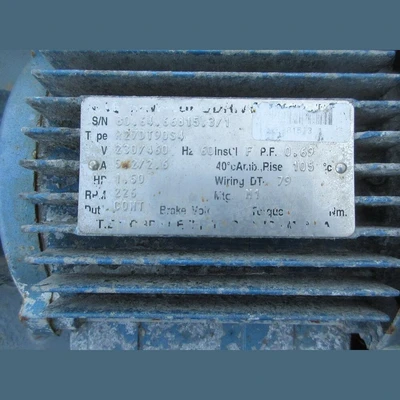

Make: SEW EuroDrive
Model: R27DT90S4
Power Output: 1.5HP
Speed: 1,725 RPM
Voltage: 230/460 Volts
Frequency: 60Hz
Phase: 3-Phase
Make: SEW EuroDrive
Model: R27DT90S4
Power Output: 1.5HP
Speed: 1,725 RPM
Voltage: 230/460 Volts
Frequency: 60Hz
Phase: 3-Phase

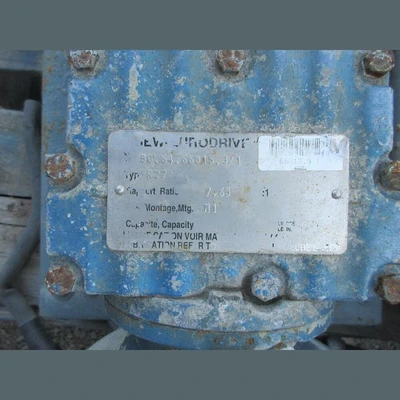

Reducer: SEW EuroDrive Inline
Type: R27
Ratio: 7.63-1
Output Speed: 226RPM
Type: R27
Ratio: 7.63-1
Output Speed: 226RPM
Overall Dimensions:
Length: 54in
Width: 14in
Height: 23in
Length: 54in
Width: 14in
Height: 23in
Location: Savona, British Columbia, Canada
