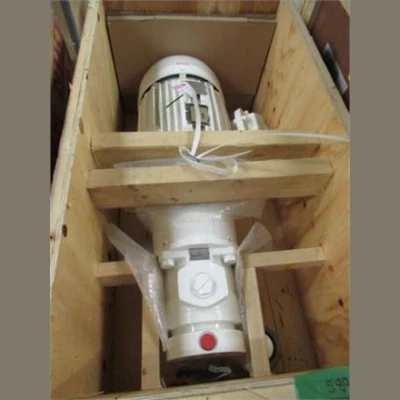

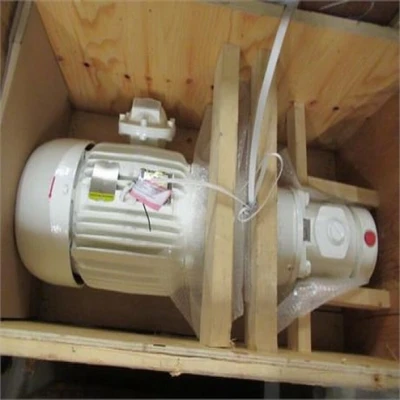

Dynex PF4000 Series Checkball Piston Pump with 15HP 575V Baldor Explosion Proof Motor
Make: Dynex
Model: PF4000

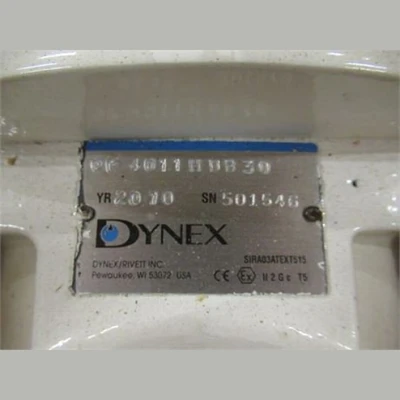

Part #: PF4011HSB30
Year: 2010

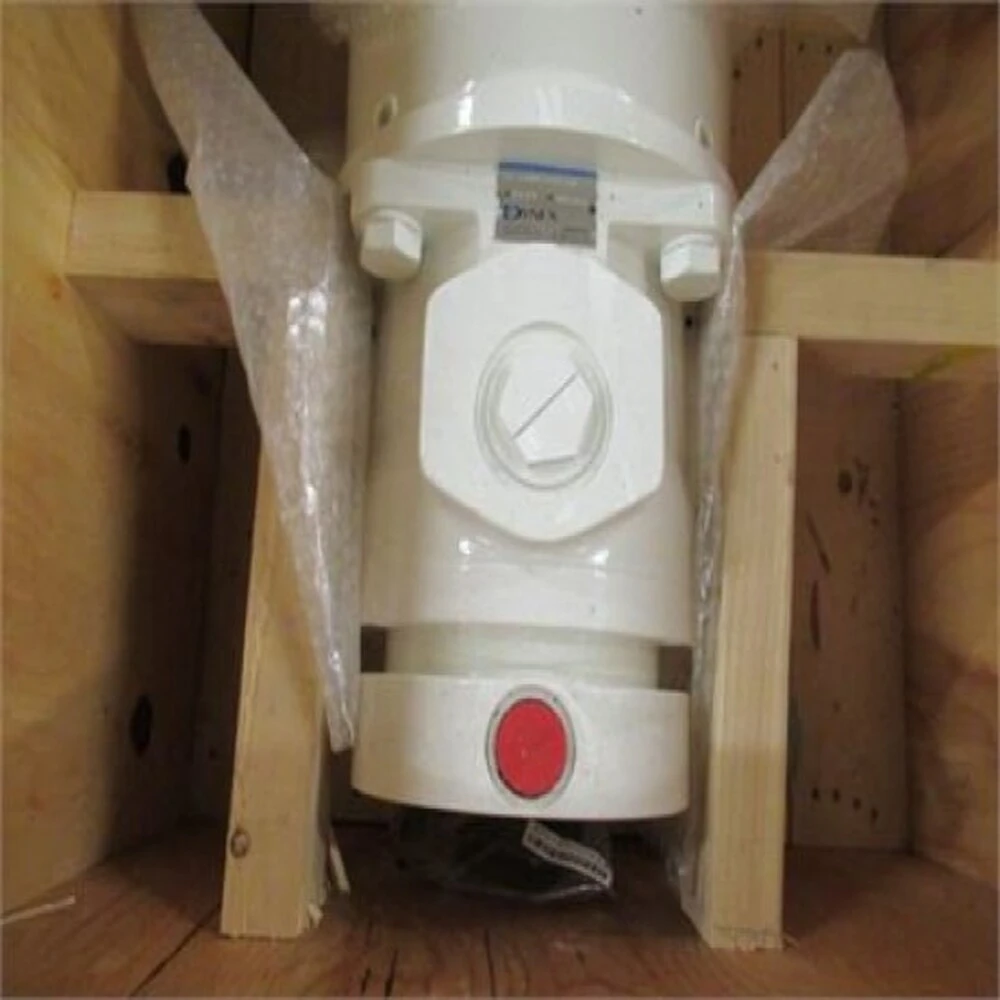

Pump Type: PF40 Fixed Displacement CheckBall Piston Pump
Output Flow: 7.3 GPM (27.6 L/min)
Operating Pressure: 10,000 PSI (700 Bar) High Pressure
Speed:
Rated: 1800 RPM
Max: 2400 RPM
Rated: 1800 RPM
Max: 2400 RPM
Driveshaft: SAE Spline 1.250in (31.75mm)
Ports: Inlet No.24 SAE; Outlet G 3/4 (BSPP)
10 Piston Pump: Full Flow From Single Outlet

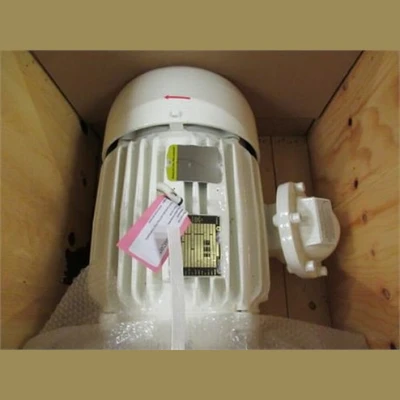

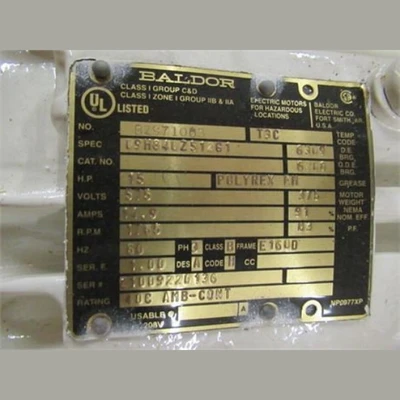

Drive: Baldor
Power: 15HP
Voltage: 575 Volt
RPM: 1755 RPM
Phase: 3-Phase
Frequency: 60Hz
Power: 15HP
Voltage: 575 Volt
RPM: 1755 RPM
Phase: 3-Phase
Frequency: 60Hz
View Spec Sheet Below
Description: Contamination tolerant, for operation in dirty environments. A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids. Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
Location: Eastern Canada
