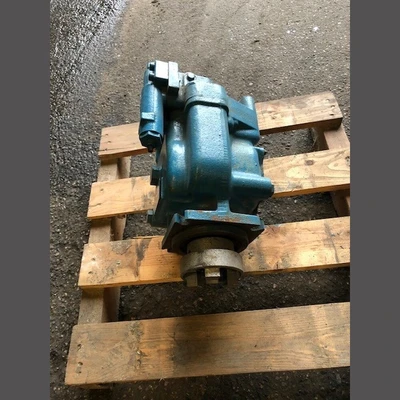

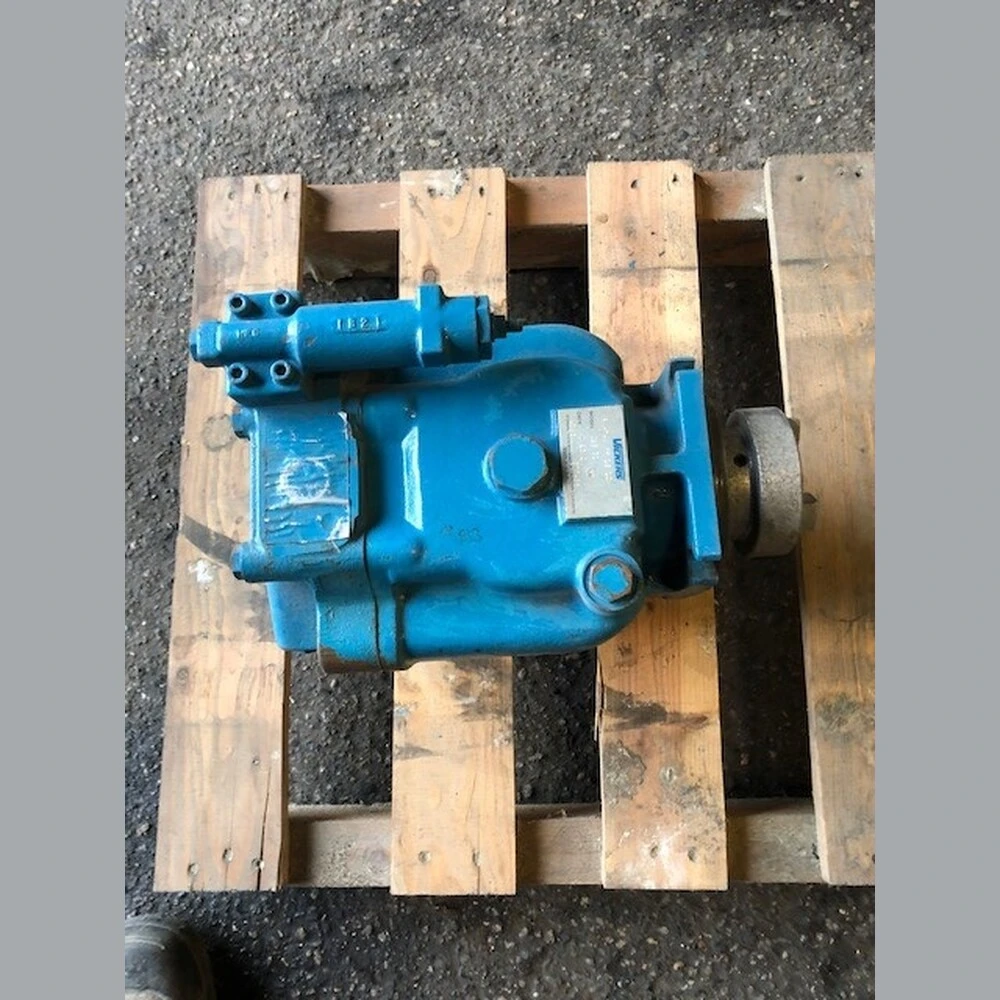

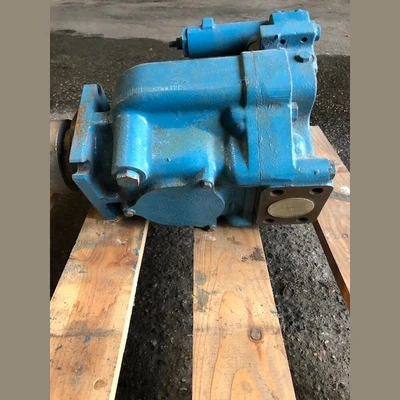

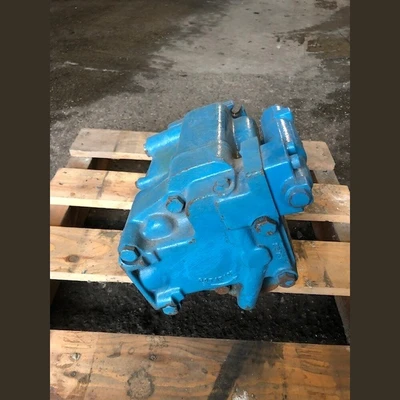

Vickers PVH74C Piston Pump

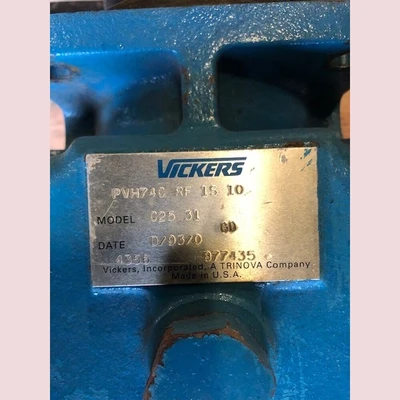

Make: Vickers PH74C RF 1S 10
Model: C25 31
Condition: New
Max Geometric Displacement 74: 73.7 cm³/r (4.5 in³/r)
Application Style: Mobile Application (Rated Speed & 250/280 bar (3600-4000 psi) Pressures)
Mounting Flange, Prime Mover End: SAE “C” 4–Bolt Type (SAE J744-127-4)
Shaft Rotation, Viewed @ Prime Mover End: Right Hand, Clockwise
Configuration: Non-Thru-Drive (Single Pump)
Main Ports: SAE 4-bolt Flange Ports (Standard)
Shaft-End Type, @ Prime Mover End: SAE-C Straight Key
Shaft Seal, Prime Mover End: Single, One-Way
Max Pressure: 250 Bar (3625 PSI)
Rated Speed: 2200 RPM
Flow @ 28 bar (400PSI): 154.1 - 171 l/min (40.7 - 45.2 US GPM)
Max. Flow Loss @250 bar (3625 psi): 13 l/min (3.4 US GPM)
Location: Western Canada
