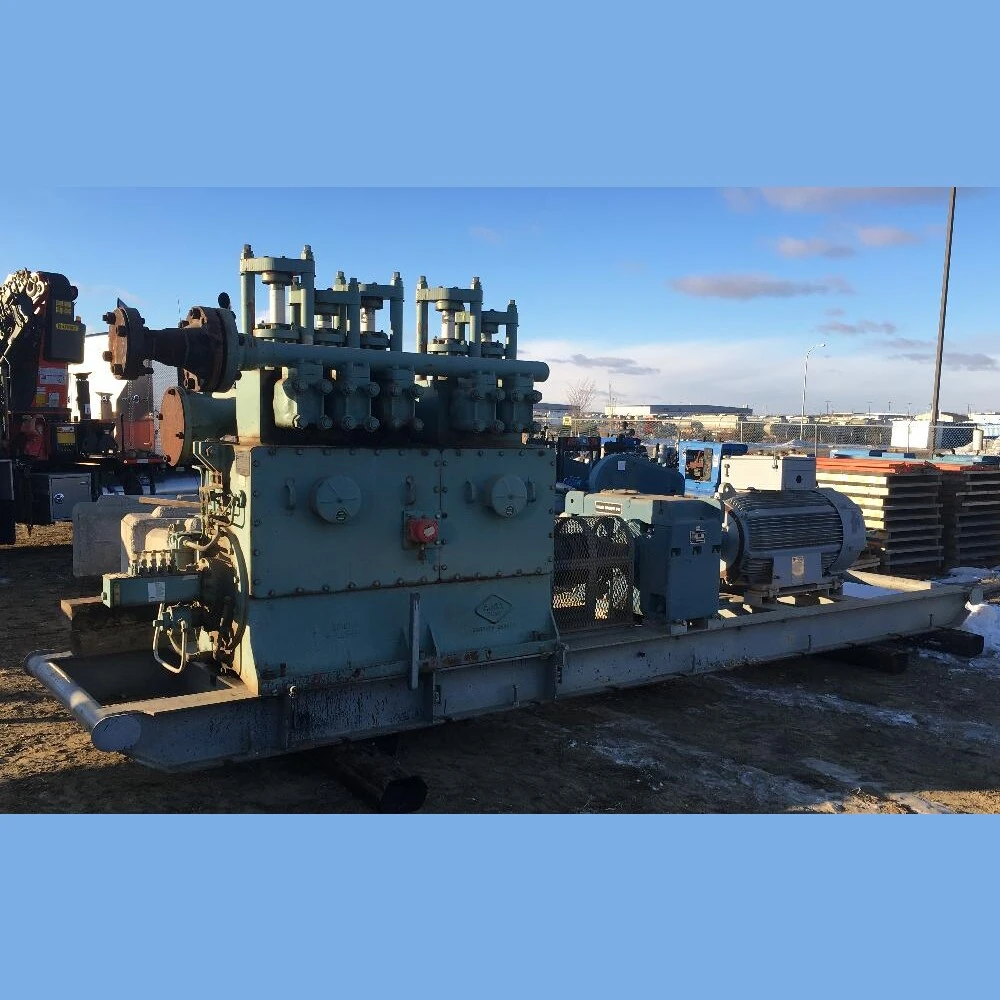

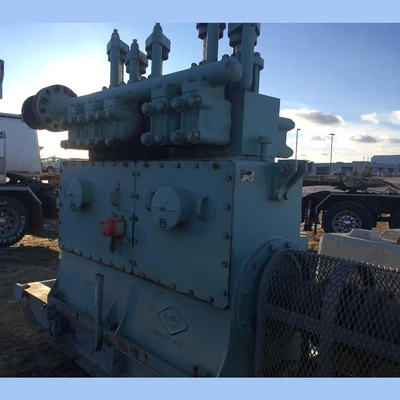

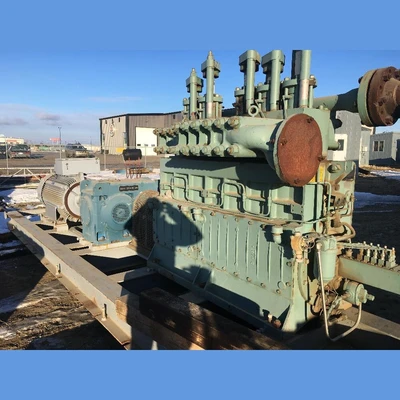

Gardner Denver AJAX Q600 Plunger Pump Skid
Make: Gardner-Denver AJAX Q600
Model: 0600BL
Year: 1991
Condition: Unused, Installed in Plant as Critical Spare, Never Used
Type: Plunger Pump
Style: Quintuplex
Plunger: 3in Ceramic
Number of Plungers: 5
Plunger Load: 21,800 Lbs.
Flow Rate: 301 GPM (1,640m³/Day)
Discharge Rating: 3,085 PSI (21,286kPa)
Max Pressure: 3,365 PSI
Max Input RPM: 327 RPM
Max HP Input: 600HP
Suction Size: 8in - 150#
Discharge Size: 6in Sch 160 Pipe
Fluid End Material: All Aluminum Bronze

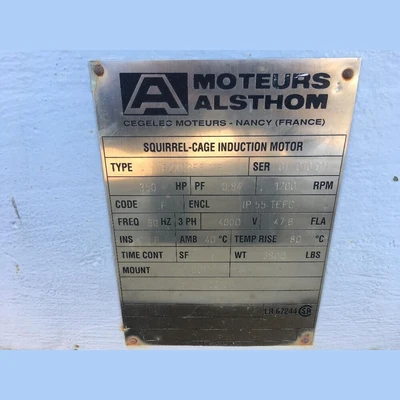

Drive: Squirrel Cage Induction Motor
Make: Moteurs Alsthom
Model: F2XC355 M6
Power Output: 350 HP
RPM: 1200 RPM
Voltage: 4000 Volt
Amperage: 47.6 Amps
Frequency: 60Hz
Phase: 3-Phase
Make: Moteurs Alsthom
Model: F2XC355 M6
Power Output: 350 HP
RPM: 1200 RPM
Voltage: 4000 Volt
Amperage: 47.6 Amps
Frequency: 60Hz
Phase: 3-Phase

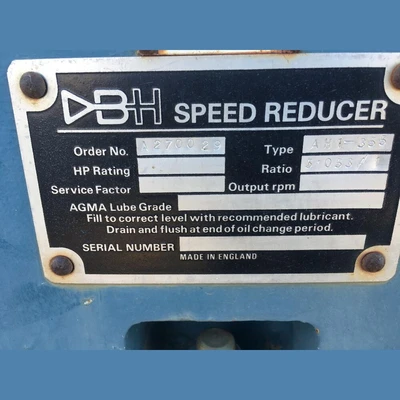

Gearbox: Speed Reducer
Make: David Brown
Model: AH1-355
Ratio: 5.053:1
Make: David Brown
Model: AH1-355
Ratio: 5.053:1
Location: Western Canada
