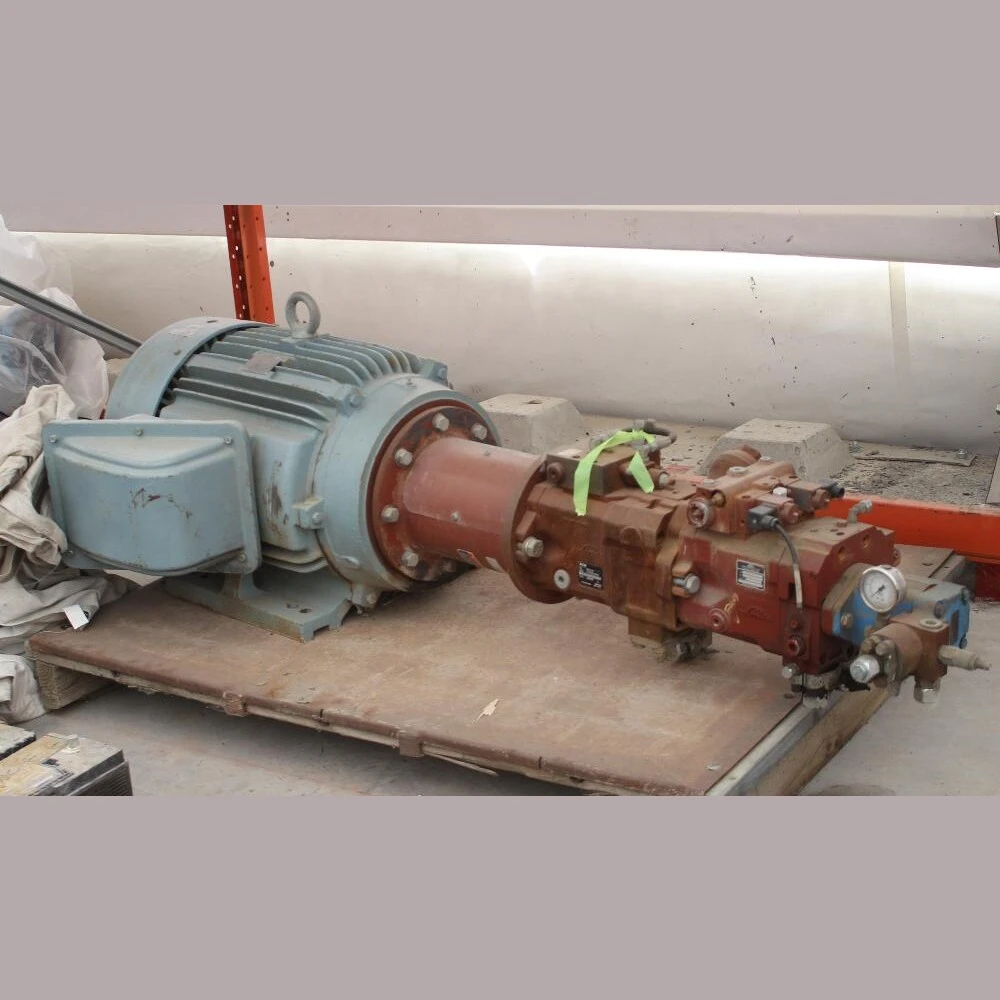

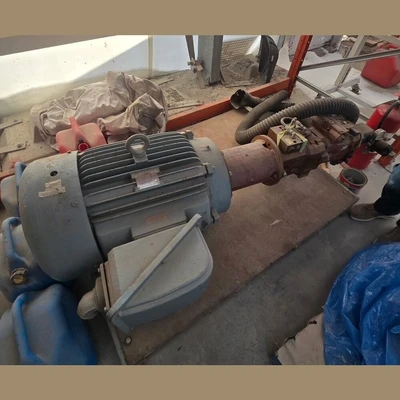

Linde HPV-HPR Piston Pump
Make: Linde

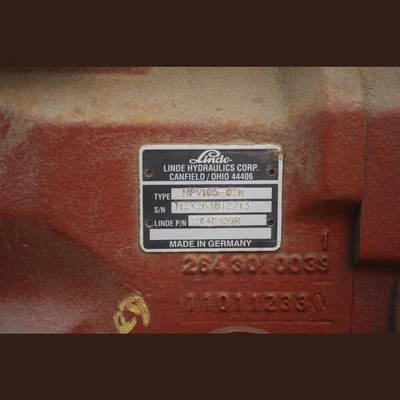

Model: HPV105-02R
Type: Variable Pump, Closed Circuit Operation
Rotation: Right Hand
Max Displacement: 105cm³/rev
Max Operating Speed: 3200 RPM
Min Operating Speed: 500 RPM
Nominal Pressure: 450 bar
Max Pressure: 500 bar
Torque: 719Nm
Coupled to HPR135-02 Pump
Make: Linde

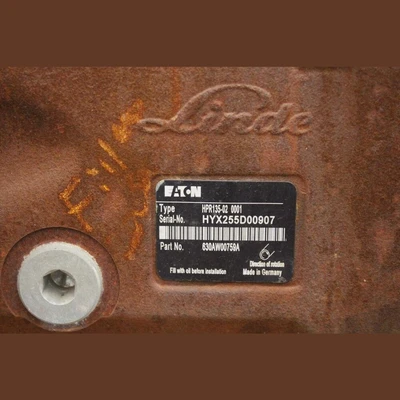

Model: HPR135-02
Type: Variable Pump, Open Loop Operation
Max Displacement: 135.7c³/rev
Max Operating Speed: 2300 RPM
Volume Flow: 312.1 l/min
Max Pressure: 500 bar
Torque: 907 Nm
Make: Linde
Model: HPR135-02
Type: Variable Pump, Open Loop Operation
Max Displacement: 135.7c³/rev
Max Operating Speed: 2300 RPM
Volume Flow: 312.1 l/min
Max Pressure: 500 bar
Torque: 907 Nm
Drive: Electric Motor

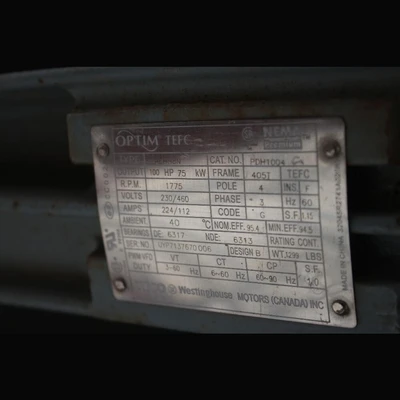

Make: TECP Westinghouse
Model: AEHH8N
Power Output: 100HP (75kW)
RPM: 1775
Voltage: 230/460 Volt
Amperage: 224/112 Amps
Frequency: 60Hz
Phase: 3-Phase
Make: TECP Westinghouse
Model: AEHH8N
Power Output: 100HP (75kW)
RPM: 1775
Voltage: 230/460 Volt
Amperage: 224/112 Amps
Frequency: 60Hz
Phase: 3-Phase
Location: Western Canada
