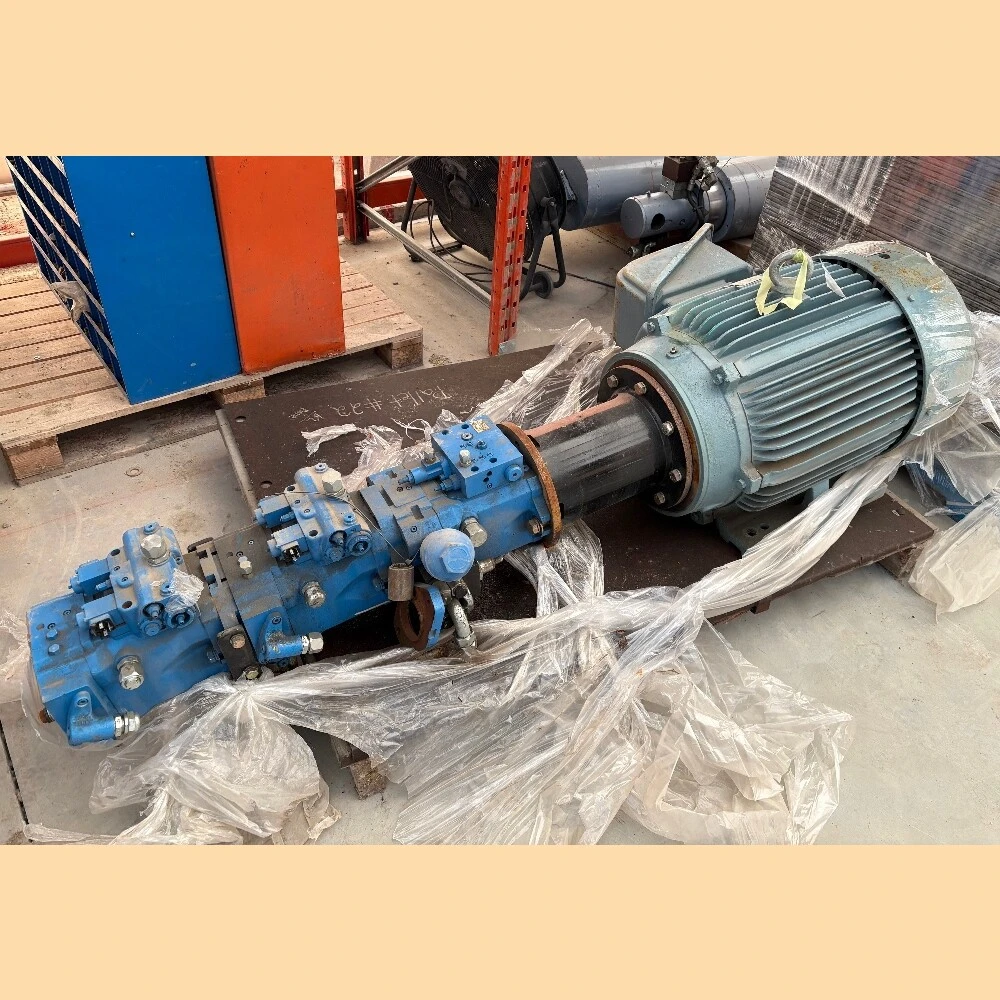

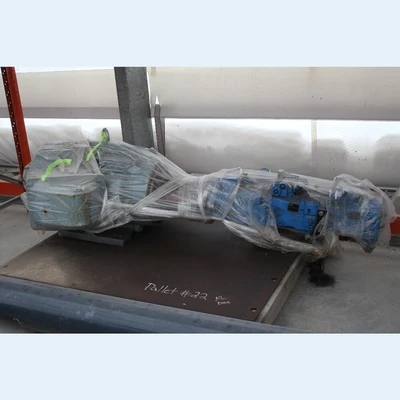

USED EATON-LINDE HPV 105

Eaton-Linde HPV 105 Piston Pump

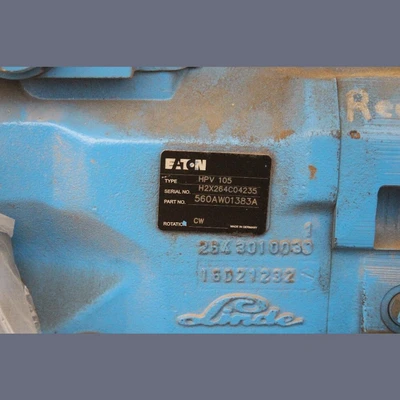

Make: Eaton-Linde
Model: HPV 105
Design: Variable Pump Closed Loop Operation
Displacement: 105cm³/rev
Speed Range: 2900 RPM (3200 RPM Intermittent)
Operating Pressure: 420 bar
Max Pressure (Intermittent): 500 bar
Torque: 418 Nm Continuous
Power: 127HP at Max Continuous Speed
Coupled to Eaton-Linde HPV 105 Piston Pump
Design: Variable Pump Closed Loop Operation
Displacement: 105cm³/rev
Speed Range: 2900 RPM (3200 RPM Intermittent)
Operating Pressure: 420 bar
Max Pressure (Intermittent): 500 bar
Torque: 418 Nm Continuous
Power: 127HP at Max Continuous Speed
Coupled to HPR 135 Piston Pump
Make: Linde
Model: HPR135-02
Type: Variable Pump, Open Loop Operation
Max Displacement: 135.7c³/rev
Max Operating Speed: 2300 RPM
Volume Flow: 312.1 l/min
Max Pressure: 500 bar
Torque: 907 Nm
Design: Variable Pump Closed Loop Operation
Displacement: 105cm³/rev
Speed Range: 2900 RPM (3200 RPM Intermittent)
Operating Pressure: 420 bar
Max Pressure (Intermittent): 500 bar
Torque: 418 Nm Continuous
Power: 127HP at Max Continuous Speed
Coupled to HPR 135 Piston Pump
Make: Linde
Model: HPR135-02
Type: Variable Pump, Open Loop Operation
Max Displacement: 135.7c³/rev
Max Operating Speed: 2300 RPM
Volume Flow: 312.1 l/min
Max Pressure: 500 bar
Torque: 907 Nm
Make: Linde
Model: HPR135-02
Type: Variable Pump, Open Loop Operation
Max Displacement: 135.7c³/rev
Max Operating Speed: 2300 RPM
Volume Flow: 312.1 l/min
Max Pressure: 500 bar
Torque: 907 Nm
Drive: Electric Motor
Make: TECO Westinghouse
Model: AEHH8N
Power Output: 100HP (75kW)
RPM: 1775
Voltage: 230/460 Volt
Amperage: 224/112 Amps
Frequency: 60Hz
Phase: 3-Phase

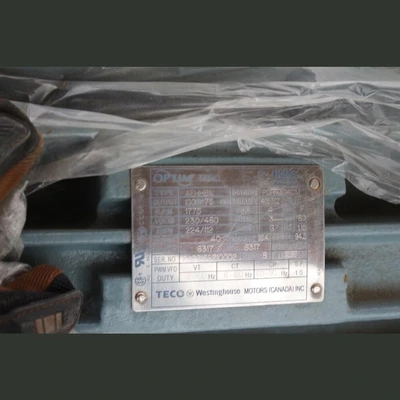

Make: TECO Westinghouse
Model: AEHH8N
Power Output: 100HP (75kW)
RPM: 1775
Voltage: 230/460 Volt
Amperage: 224/112 Amps
Frequency: 60Hz
Phase: 3-Phase
Location: Western Canada
