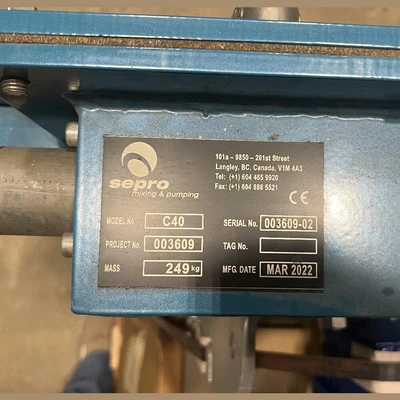

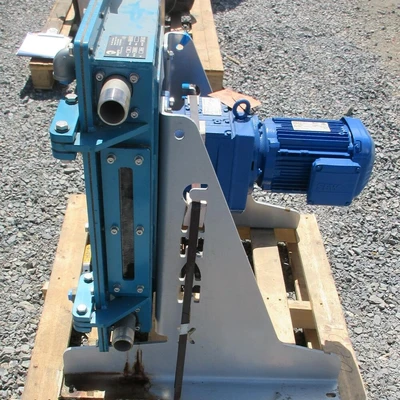

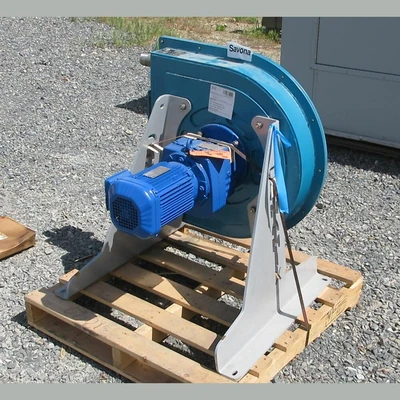

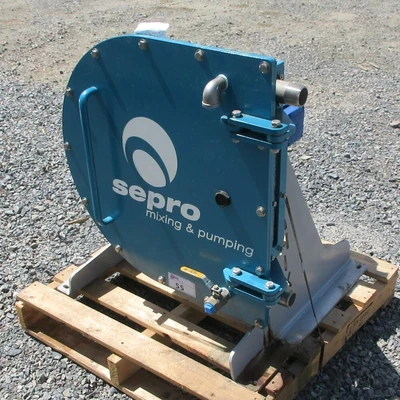

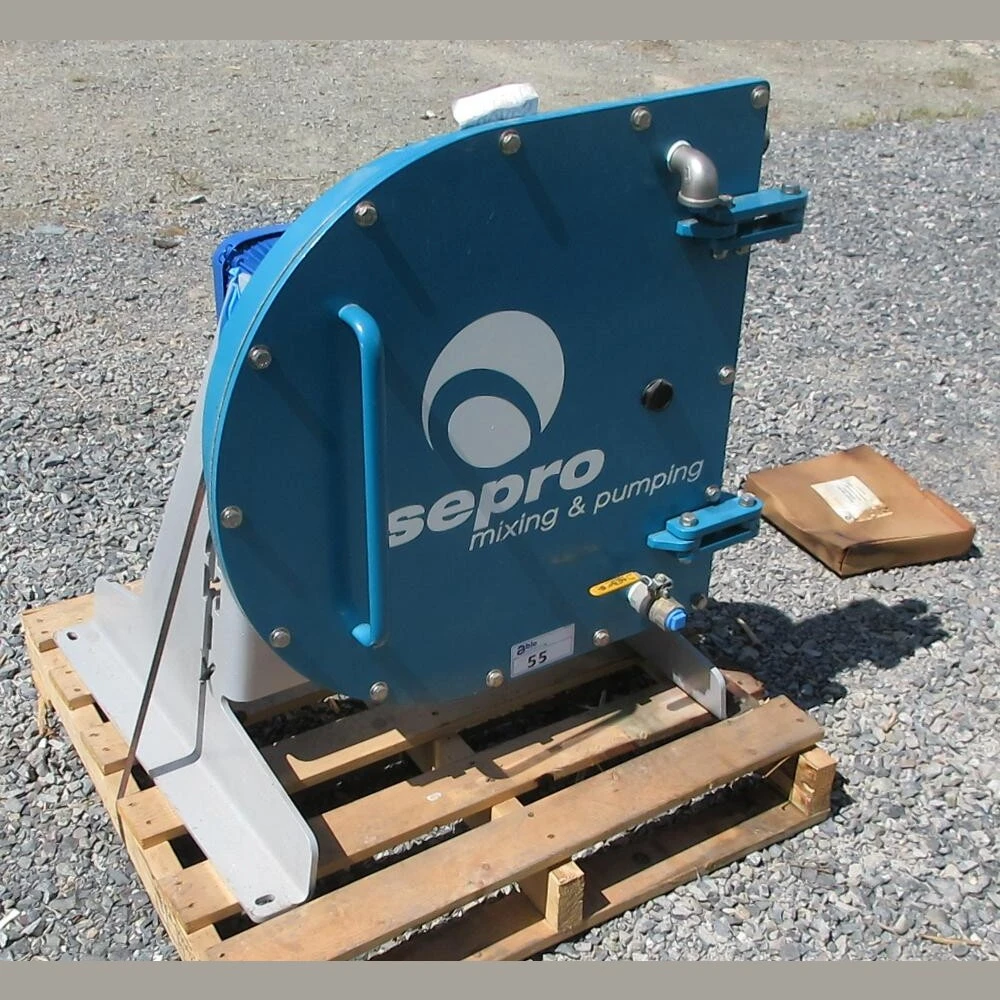

Sepro C40 Peristaltic Pump
Make: Sepro Mineral Systems
Model: C40
Type: Peristaltic Pump - Hose Pump
Year: 2022
Condition: Unused Surplus
Self-Priming
Dry-Running Capable
Reversible Operation
Hose Bore: 40mm
Displacement: 0.55 Gal/Rev. (2.08 Liters/Rev)
Flow Rate: 4.4 - 32.97 GPM (1000-7488 L/Hr.)
Discharge Pressure: 10 bar (145 PSI)
Suction Lift: Up To 9.5m (30ft)

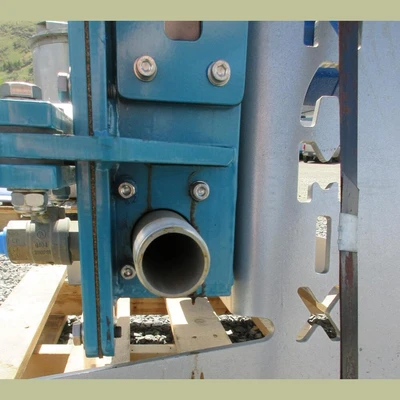

Inlet: 1.5in NPT Male Threaded
Outlet: 1.5in NPT Male Threaded

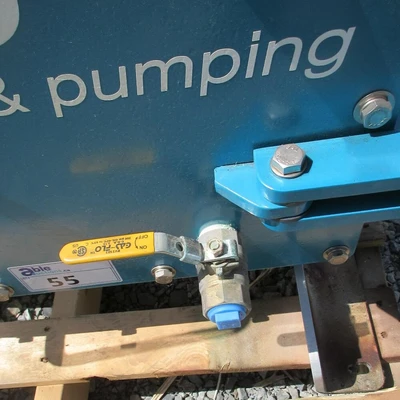

Coolant:
Upper Outlet: 1in Ball Valve
Lower Inlet: 1in with Elbow
Upper Outlet: 1in Ball Valve
Lower Inlet: 1in with Elbow

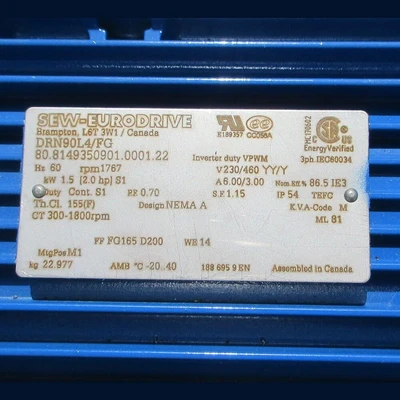

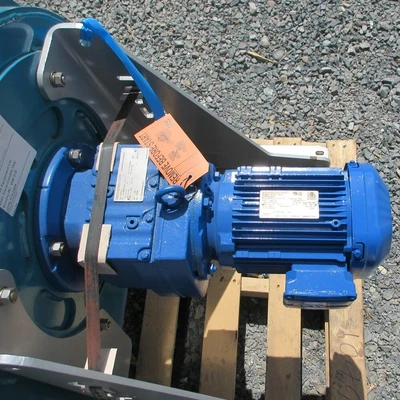

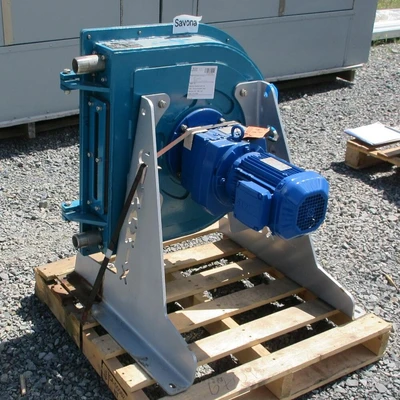

Drive: SEW-EURODRIVE DRN90L4/FG
Power Output: 2.0HP (1.5kW)
Rotating Speed: 1767 RPM
Voltage: 230/460 Volt
Current: 6.0/3.0 Amps
Frequency: 60Hz
Phase: 3-Phase

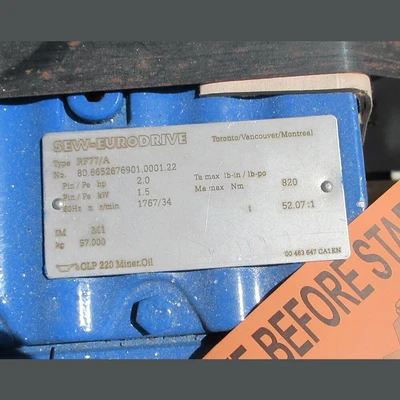

Reducer: SEW-EURODRIVE RF77/A
Ratio: 52.07-1
Output Speed: 34 RPM
Power Output: 2.0HP (1.5kW)
Rotating Speed: 1767 RPM
Voltage: 230/460 Volt
Current: 6.0/3.0 Amps
Frequency: 60Hz
Phase: 3-Phase
Reducer: SEW-EURODRIVE RF77/A
Ratio: 52.07-1
Output Speed: 34 RPM
Ratio: 52.07-1
Output Speed: 34 RPM
Overall Dimensions:
Length: 32in
Width: 29in
Height: 34in
Weight: 249 kg
Length: 32in
Width: 29in
Height: 34in
Weight: 249 kg
Location: Savona, British Columbia, Canada
