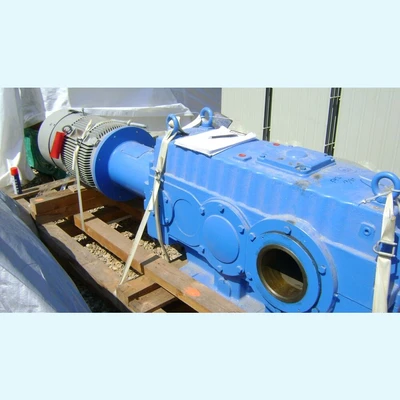

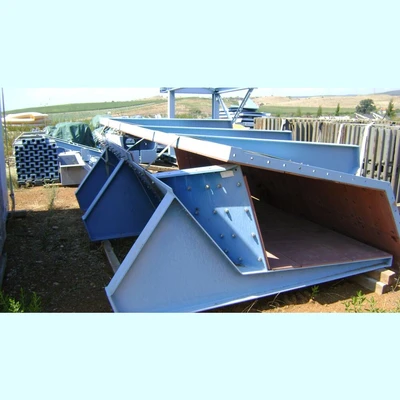

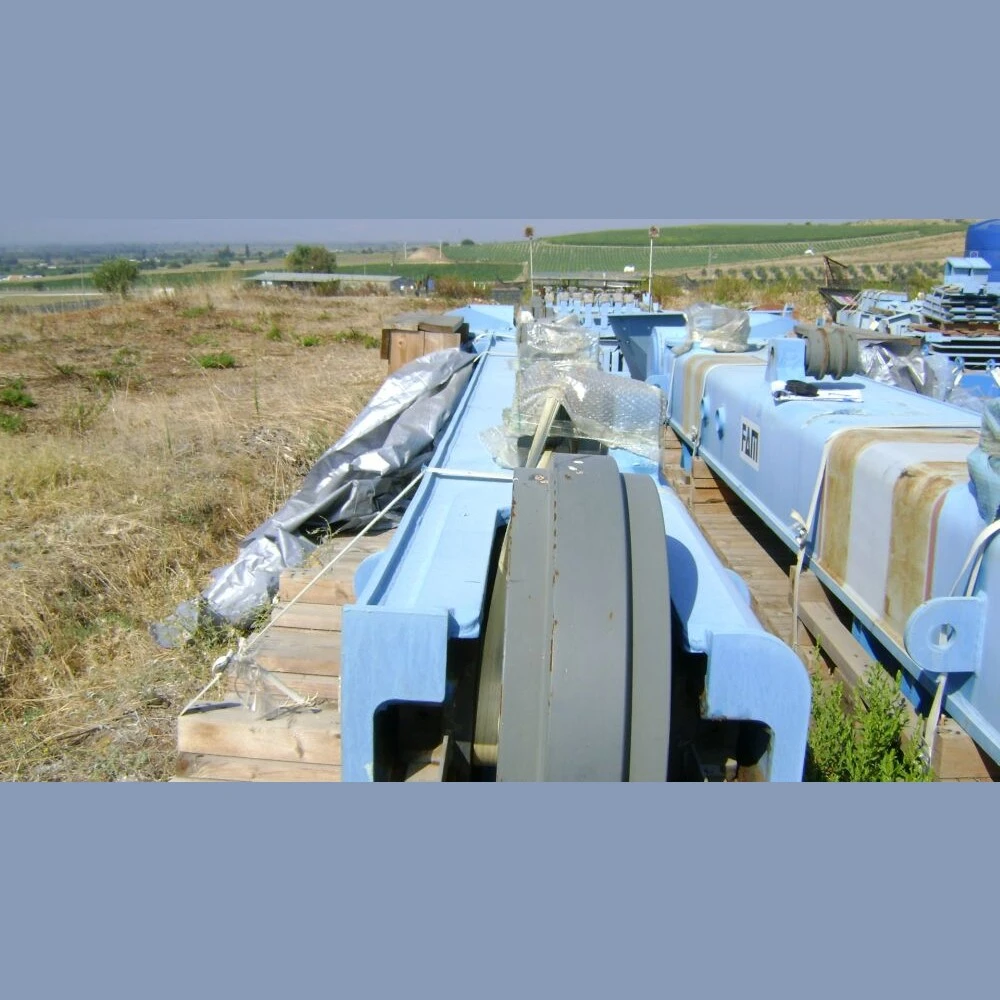

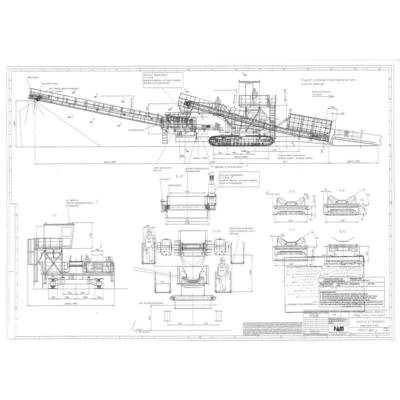

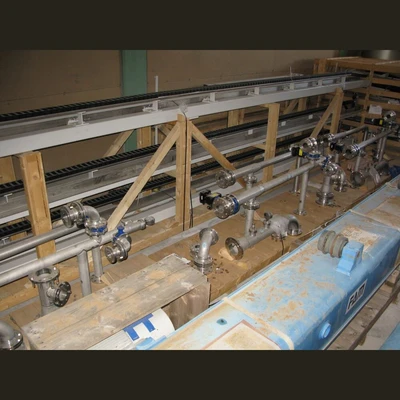

FAM ST 480 U Portable Conveyor

Crawler mounted radial stacker.
Capacity of 476 dry metric tonnes/hr.
Never used/installed.
Main parameters:
Design capacity:
476 t/hr. (dry).
560 t/hr. (wet).
Density: 1.24 t/m³.
Slope during operation: 0 -  8%
Uphill in work direction.
Crawler drive downhill side.
Slope during normal transport: +/- 8%
Crawler drive downhill side.
Side slope during operation: 2%
Side slope during transport (discharge boom fixed): 8%
Discharge conveyor: 16 m long.
Slewing range: +/- 900
Max. discharge area (top of pile): 32 m.
Max. width of module: 45 m.
Slope angle 350, height 4 m.
Travel speed: 1-6 m/min.
Slewing speed: 2-15 m/min.
Weight out of operation: 110 t approx.
Additional weight of ramp: 7 t approx.
Max. weight in operation: 140 t approx.
Average ground pressure in operation: 12 t/m² approx.
Average ground pressure out of operation: 9 t/m² approx.
Minimal step: 0.3 m approx.
Height of machine: 7.2 m approx.
Width of machine: 9.5 m approx.
Boom in transport position.
Length of machine: 33 m.
Boom in transport position, without ramp.
Design capacity:
476 t/hr. (dry).
560 t/hr. (wet).
476 t/hr. (dry).
560 t/hr. (wet).
Density: 1.24 t/m³.
Slope during operation: 0 -  8%
Uphill in work direction.
Crawler drive downhill side.
Uphill in work direction.
Crawler drive downhill side.
Slope during normal transport: +/- 8%
Crawler drive downhill side.
Crawler drive downhill side.
Side slope during operation: 2%
Side slope during transport (discharge boom fixed): 8%
Discharge conveyor: 16 m long.
Slewing range: +/- 900
Max. discharge area (top of pile): 32 m.
Max. width of module: 45 m.
Slope angle 350, height 4 m.
Slope angle 350, height 4 m.
Travel speed: 1-6 m/min.
Slewing speed: 2-15 m/min.
Weight out of operation: 110 t approx.
Additional weight of ramp: 7 t approx.
Max. weight in operation: 140 t approx.
Average ground pressure in operation: 12 t/m² approx.
Average ground pressure out of operation: 9 t/m² approx.
Minimal step: 0.3 m approx.
Height of machine: 7.2 m approx.
Width of machine: 9.5 m approx.
Boom in transport position.
Boom in transport position.
Length of machine: 33 m.
Boom in transport position, without ramp.
Boom in transport position, without ramp.
