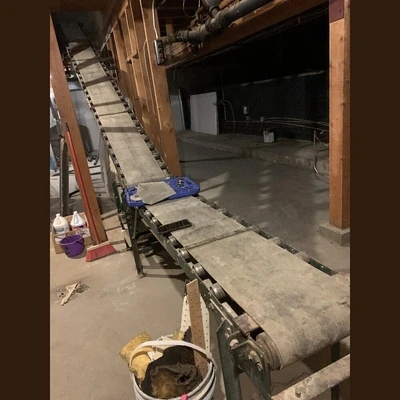

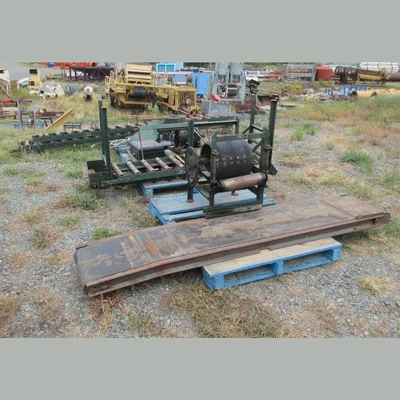

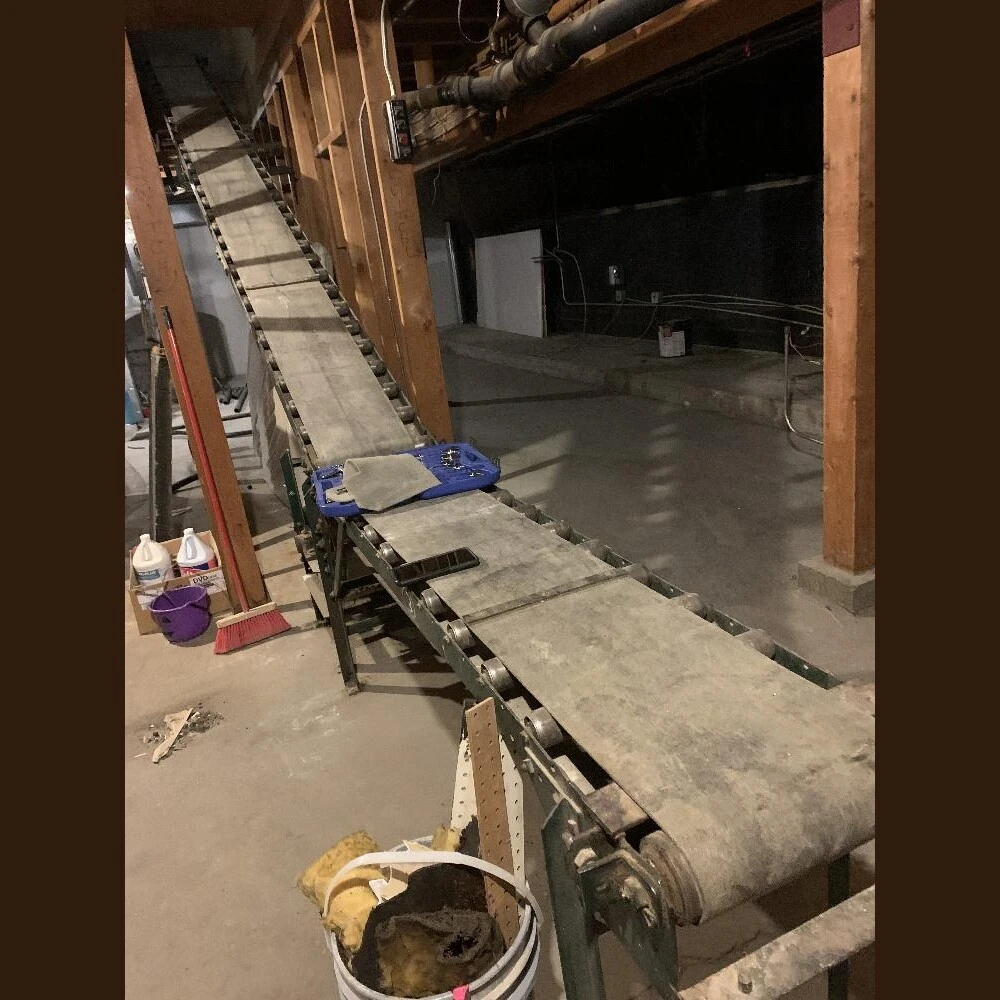

12in Wide x 20ft Long Inclined Conveyor with Add. 16in Wide x 7.5ft Long Section

12in Wide x 20ft Long Inclined Conveyor with Add. 16in Wide x 7.5ft Long Section
Make: Mathews
Type: Inclined Conveyor
Condition: Used Condition
Main Section:

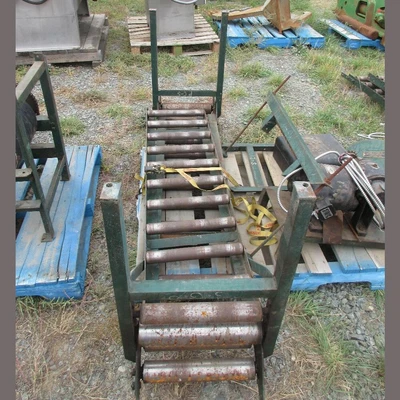

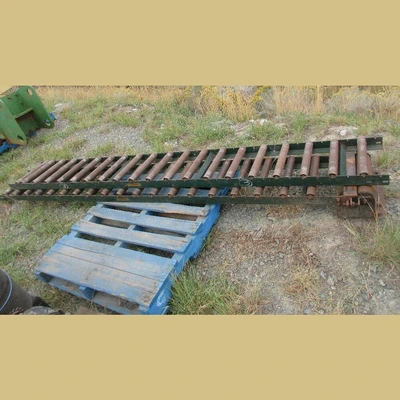

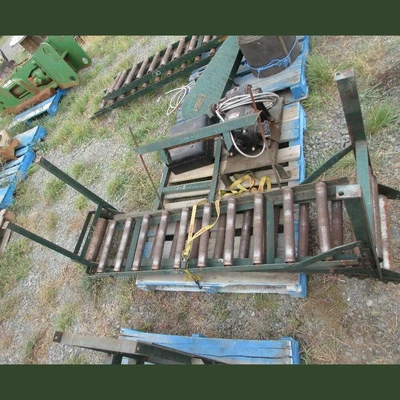

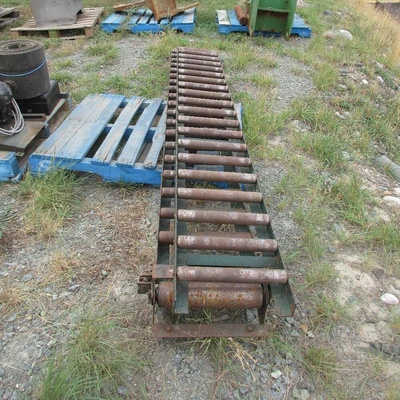

(2) Flat Sections - Conveyor and Rollers
Section Dimensions: 10ft Long x 15in Wide x 3ft High
Rollers: 2in Dia. x 15in Long

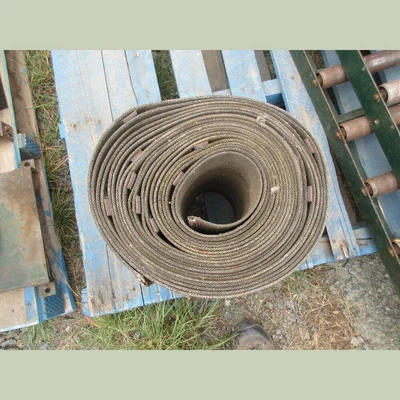

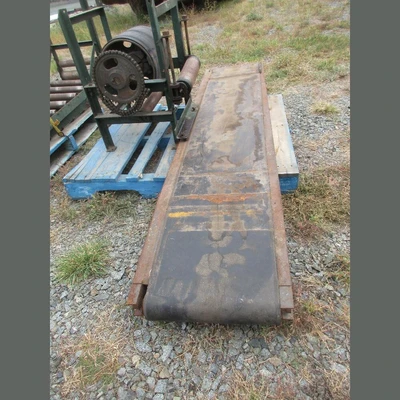

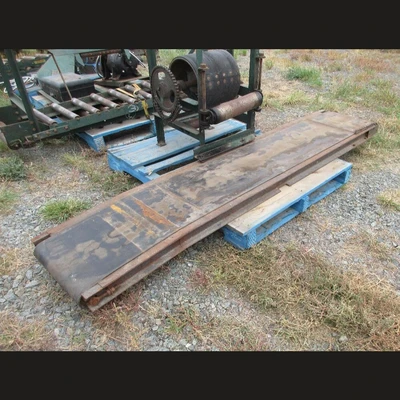

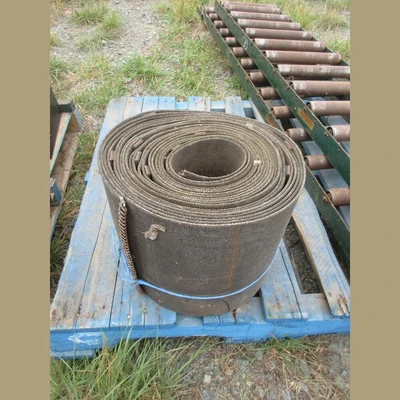

Belting: 12in Wide x 1 Ply x 48ft Long (Approx.)

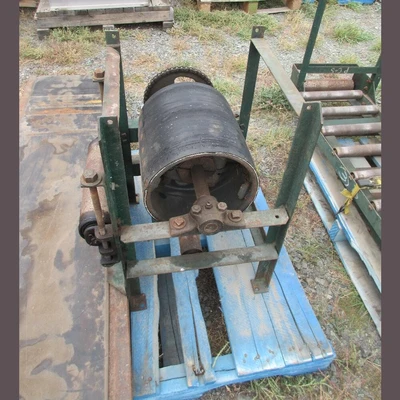

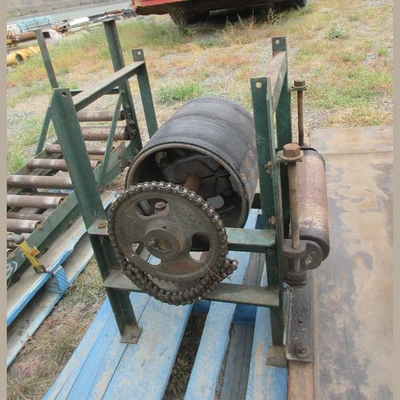

Head Pulley: On Stand with Sprocket
Pulley: 12in Dia. x 12in Wide - Rubber Coated
Sprocket: 10in Dia. x 48 Tooth
Stand: 22in Wide x 22in Long x 29in High
Legs: 64in Long x 15in Wide x 30in High (Each)
(2) Flat Sections - Conveyor and Rollers
Section Dimensions: 10ft Long x 15in Wide x 3ft High
Rollers: 2in Dia. x 15in Long
Belting: 12in Wide x 1 Ply x 48ft Long (Approx.)

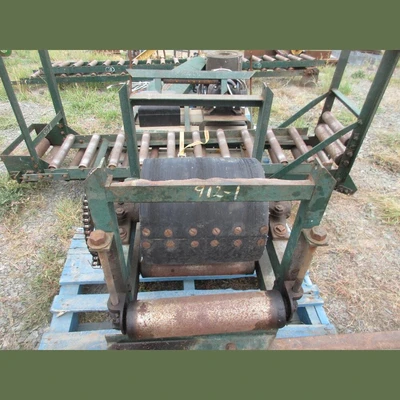

Head Pulley: On Stand with Sprocket
Pulley: 12in Dia. x 12in Wide - Rubber Coated
Sprocket: 10in Dia. x 48 Tooth
Stand: 22in Wide x 22in Long x 29in High
Legs: 64in Long x 15in Wide x 30in High (Each)
Section Dimensions: 10ft Long x 15in Wide x 3ft High
Rollers: 2in Dia. x 15in Long
Belting: 12in Wide x 1 Ply x 48ft Long (Approx.)
Head Pulley: On Stand with Sprocket
Pulley: 12in Dia. x 12in Wide - Rubber Coated
Sprocket: 10in Dia. x 48 Tooth
Stand: 22in Wide x 22in Long x 29in High
Pulley: 12in Dia. x 12in Wide - Rubber Coated
Sprocket: 10in Dia. x 48 Tooth
Stand: 22in Wide x 22in Long x 29in High
Legs: 64in Long x 15in Wide x 30in High (Each)
Additional Section:
(1) Flat Section
Section Dimensions: 90in Long x 16in Wide x 3ft High
Belt: 16in Wide x 1 Ply
(1) Flat Section
Section Dimensions: 90in Long x 16in Wide x 3ft High
Belt: 16in Wide x 1 Ply
Section Dimensions: 90in Long x 16in Wide x 3ft High
Belt: 16in Wide x 1 Ply

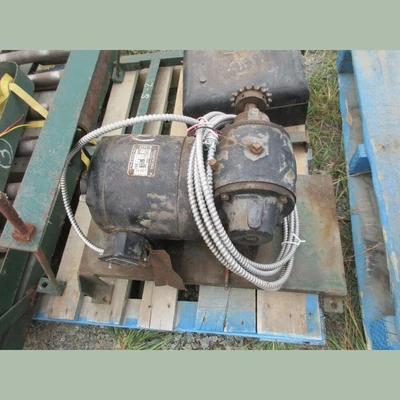

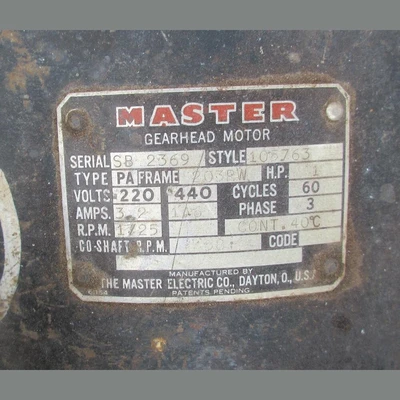

Drive: Master Gearhead Motor
Power Output: 1HP
Voltage: 220/440 Volt
Speed: 1725 RPM
Frame: 203RW
Ratio: 58-1
Sprocket on Gearhead Motor: 4in Dia. x 16 Teeth

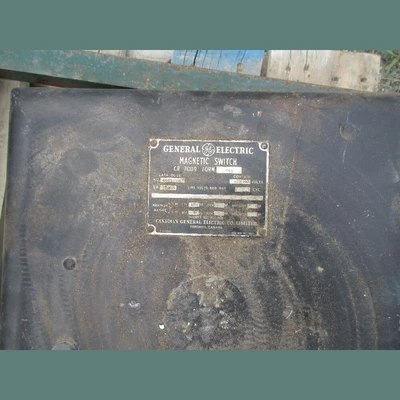

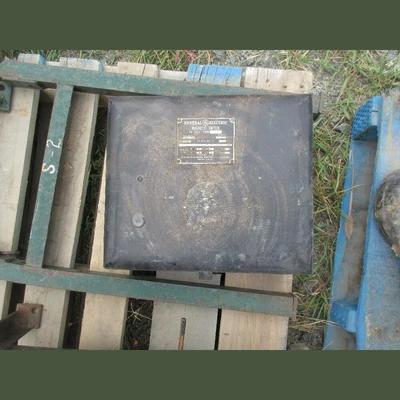

General Electric Magnet Switch
7.5HP, 440-600 Volt, 3-Phase

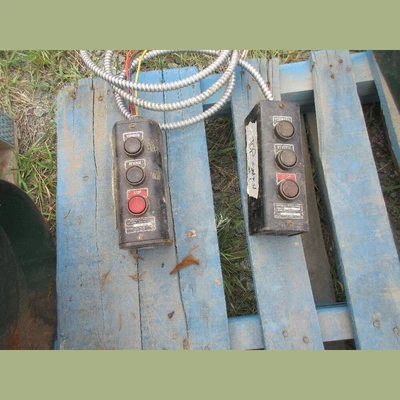

(2) Canadian Forward/Reverse/Stop Stations
Operational from Either End of Conveyor
Power Output: 1HP
Voltage: 220/440 Volt
Speed: 1725 RPM
Frame: 203RW
Ratio: 58-1
Sprocket on Gearhead Motor: 4in Dia. x 16 Teeth
General Electric Magnet Switch
7.5HP, 440-600 Volt, 3-Phase
7.5HP, 440-600 Volt, 3-Phase
(2) Canadian Forward/Reverse/Stop Stations
Operational from Either End of Conveyor
Operational from Either End of Conveyor
Location: Savona, British Columbia, Canada
