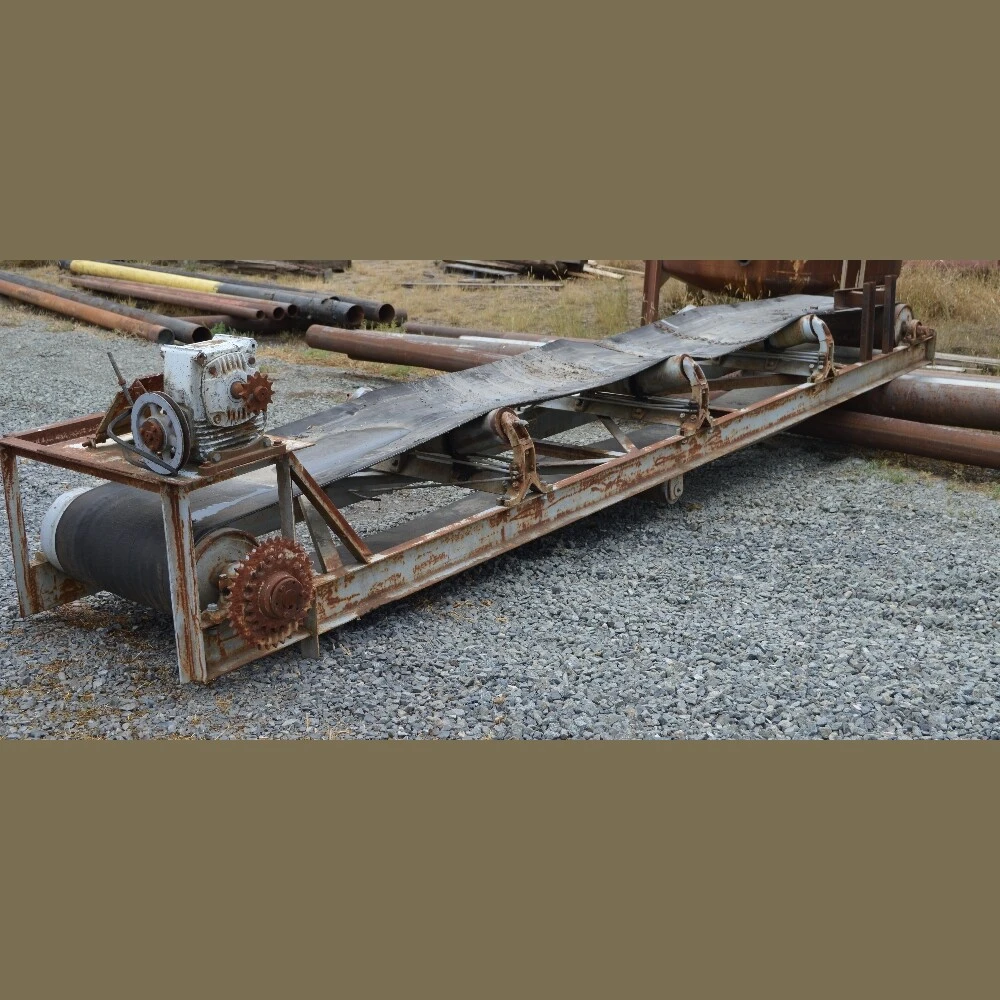

24in. x 16ft. Channel Conveyor

24in. x 16ft. Channel Conveyor
Dimensions: 24" Wide x 16' Long

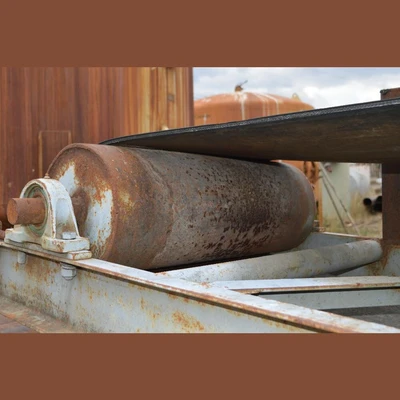

Head Pulley:
10.5" Diameter x 28" Wide
Smooth Steel
Sprocket: 12in Diameter x 36 Tooth
10.5" Diameter x 28" Wide
Smooth Steel
Sprocket: 12in Diameter x 36 Tooth

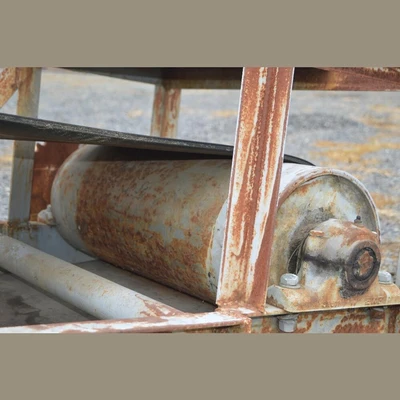

Tail Pulley:
10.5" Diameter x 28" Wide
Steel
10.5" Diameter x 28" Wide
Steel

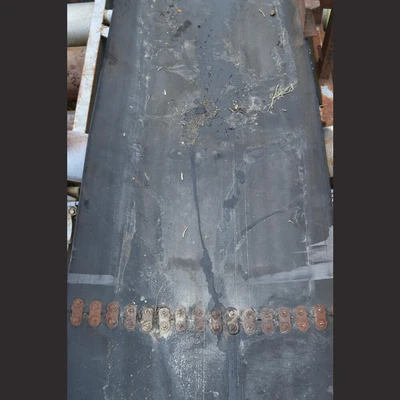

Belt
24" Wide x 0.3125" Thick
3 Ply
24" Wide x 0.3125" Thick
3 Ply

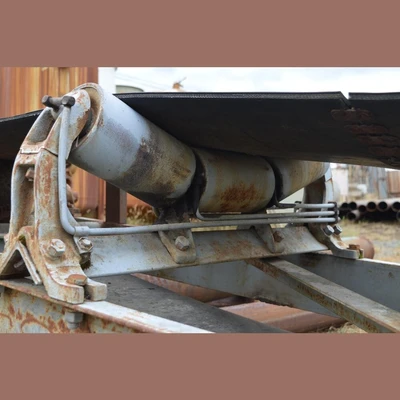

Idlers
10°
10°

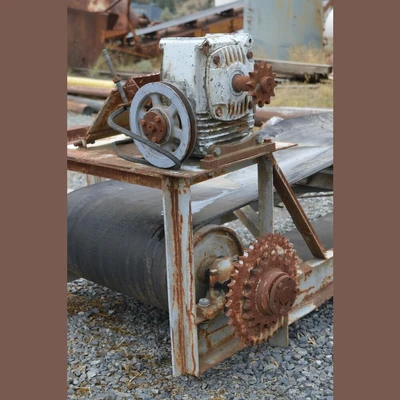

Radicon Reducer
Sprocket: 4in Dia. x 12 Tooth
Sprocket: 4in Dia. x 12 Tooth

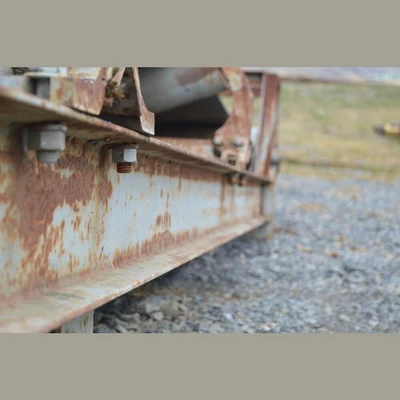

Made from 6" x 2" Channel
Overall Dimensions:
Length: 17ft 4in
Width: 41in
Height: 39in
Length: 17ft 4in
Width: 41in
Height: 39in
Location: Savona, British Columbia, Canada
