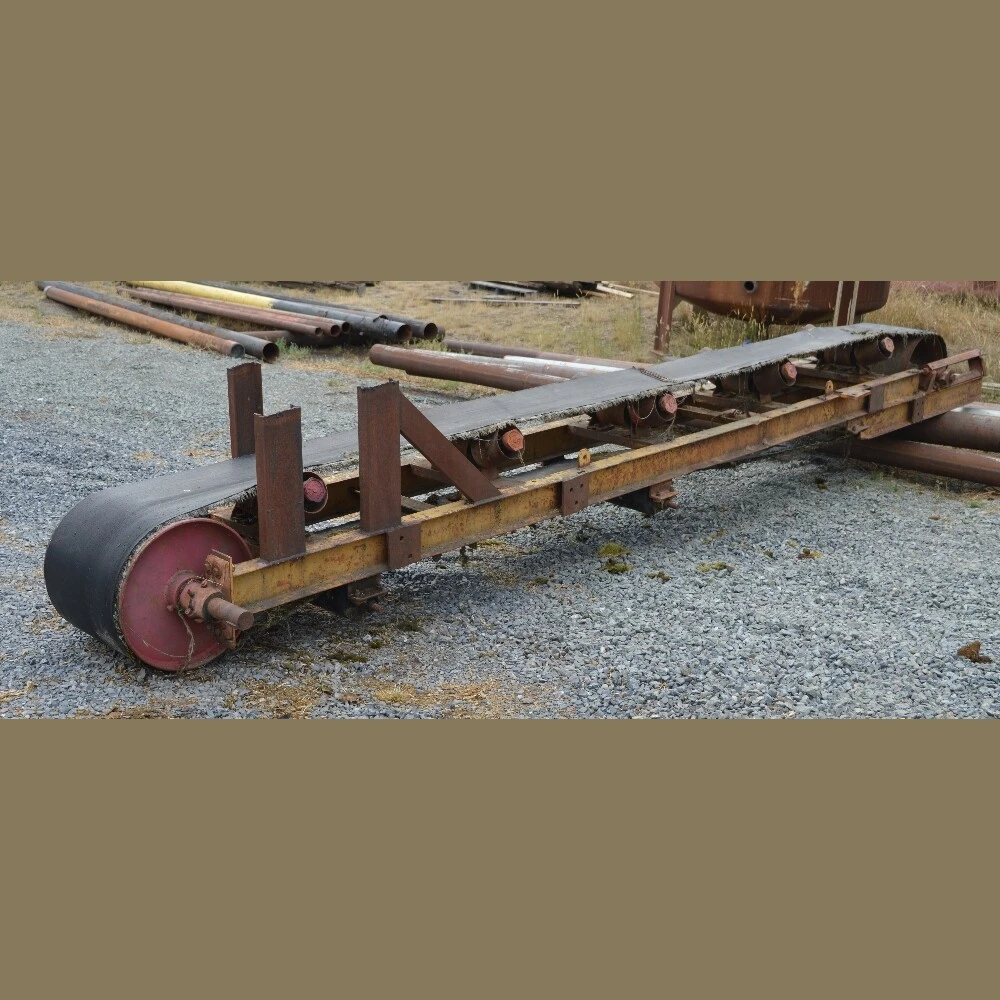

20in. Wide x 17ft. Long H-Beam Conveyor

20in. Wide x 17ft. Long H-Beam Conveyor
Dimensions: 20" Wide x 17' Long

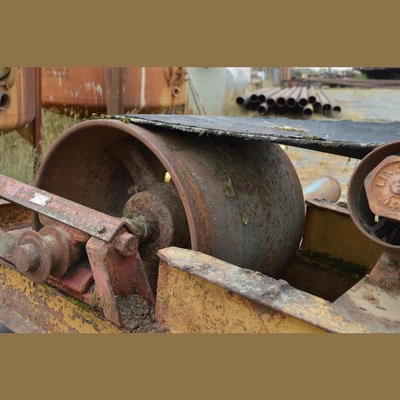

Head Pulley
22.5" Diameter x 19" Wide
Smooth Steel
22.5" Diameter x 19" Wide
Smooth Steel

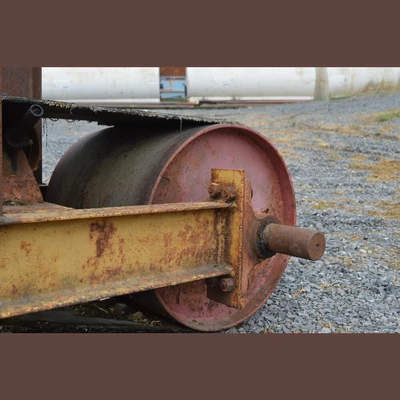

Tail Pulley
22.5" Diameter x 19" Wide
Smooth Steel
22.5" Diameter x 19" Wide
Smooth Steel
Head Pulley Sprocket: 15in Diameter x 45 Tooth

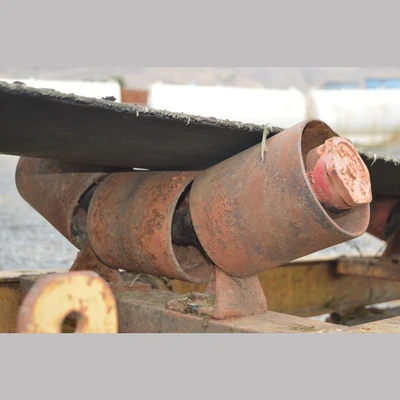

Troughing Idlers
10°
10°

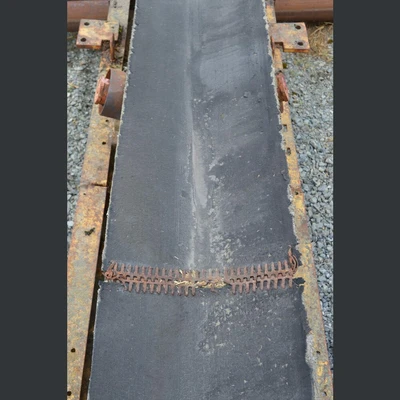

Belt
20" Wide
1 Ply
20" Wide
1 Ply

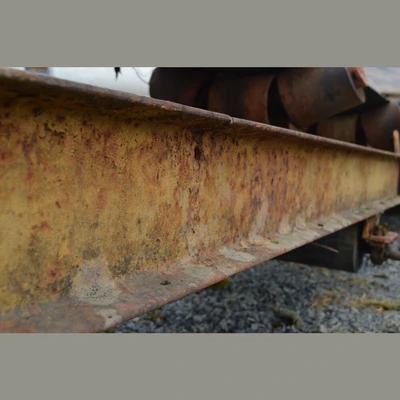

H-Beam Dimensions:
6" Tall x 3.5" Wide
6" Tall x 3.5" Wide
Overall Dimensions:
Length: 20ft
Width: 44in
Height: 39in
Length: 20ft
Width: 44in
Height: 39in
Location: Savona, British Columbia, Canada
