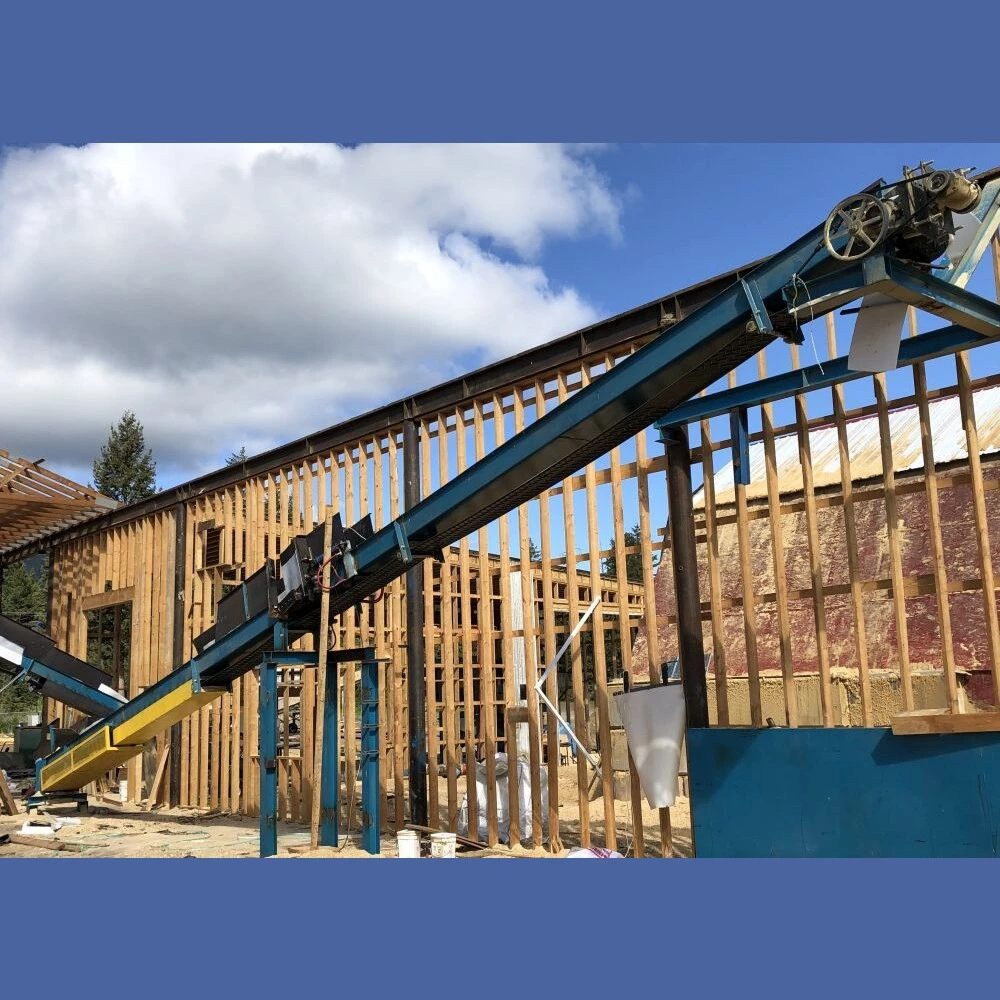

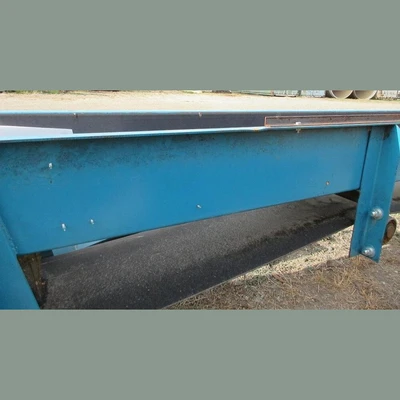

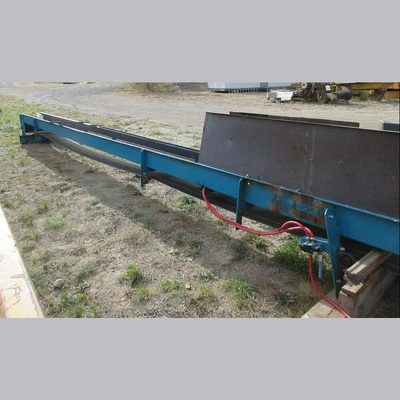

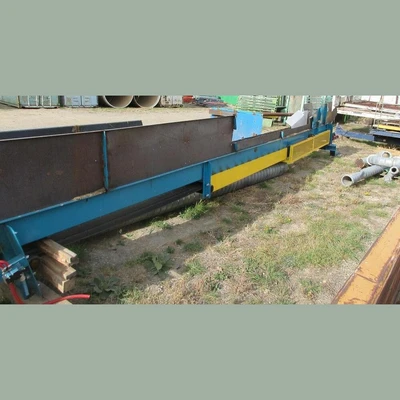

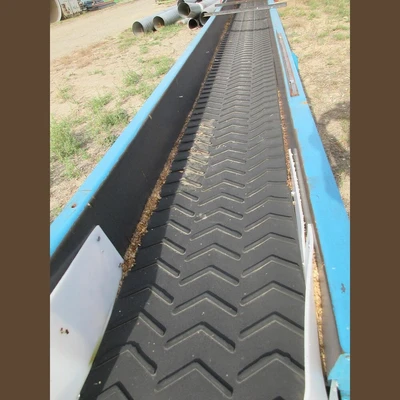

18" x 58' Troughed Channel Conveyor

18 Inch x 58 Feet Troughed Channel Conveyor
Size: 18" Wide x 58' Long x 28" High
Overall Dimensions: 48" Wide x 63' Long x 51" High
Belt
18" Wide
0.25" Thick 3 PLY
Cheveron (V6) Style Belting
18" Wide
0.25" Thick 3 PLY
Cheveron (V6) Style Belting

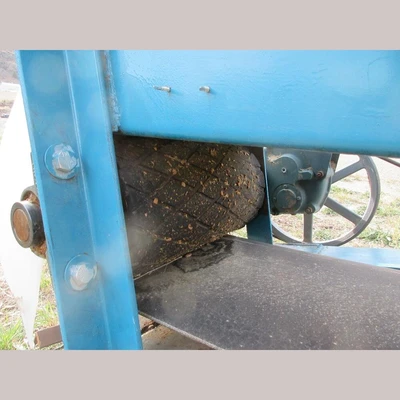

Head Pulley
10" Diameter x 19" Long
Rubberized
10" Diameter x 19" Long
Rubberized

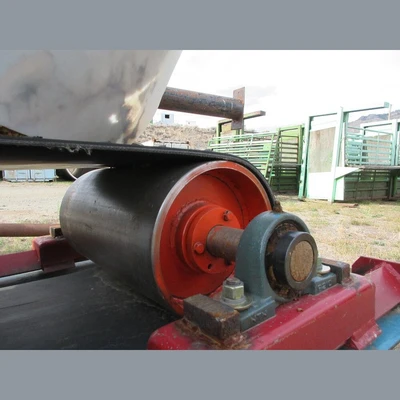

Tail Pulley
10" Diameter x 19" Long
Steel
10" Diameter x 19" Long
Steel

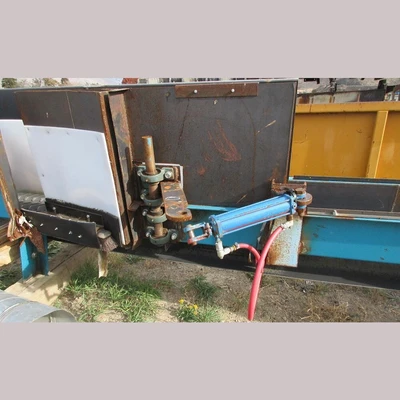

Hydraulically Controlled Side Chute
Located 27' From Head Pulley

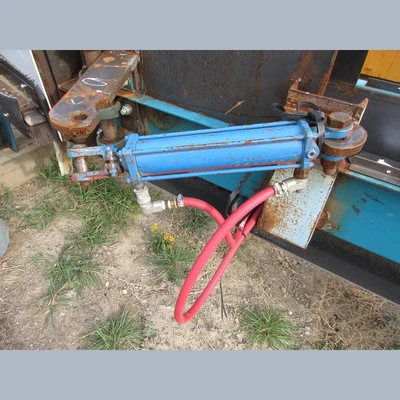

Cross Hydraulic Ram Dimensions: 3" Diameter x 15" Long (2.5" Bore)
24" High Steel Sides at Chute
Located 27' From Head Pulley
Cross Hydraulic Ram Dimensions: 3" Diameter x 15" Long (2.5" Bore)
24" High Steel Sides at Chute
 Reducer
Dodge Torque-Arm Shaft Mount Speed Reducer
Model: TDT5
Ratio: 20 To 1
Dodge Torque-Arm Shaft Mount Speed Reducer
Model: TDT5
Ratio: 20 To 1
Location: British Columbia, Canada
