USED MAC HS20X15

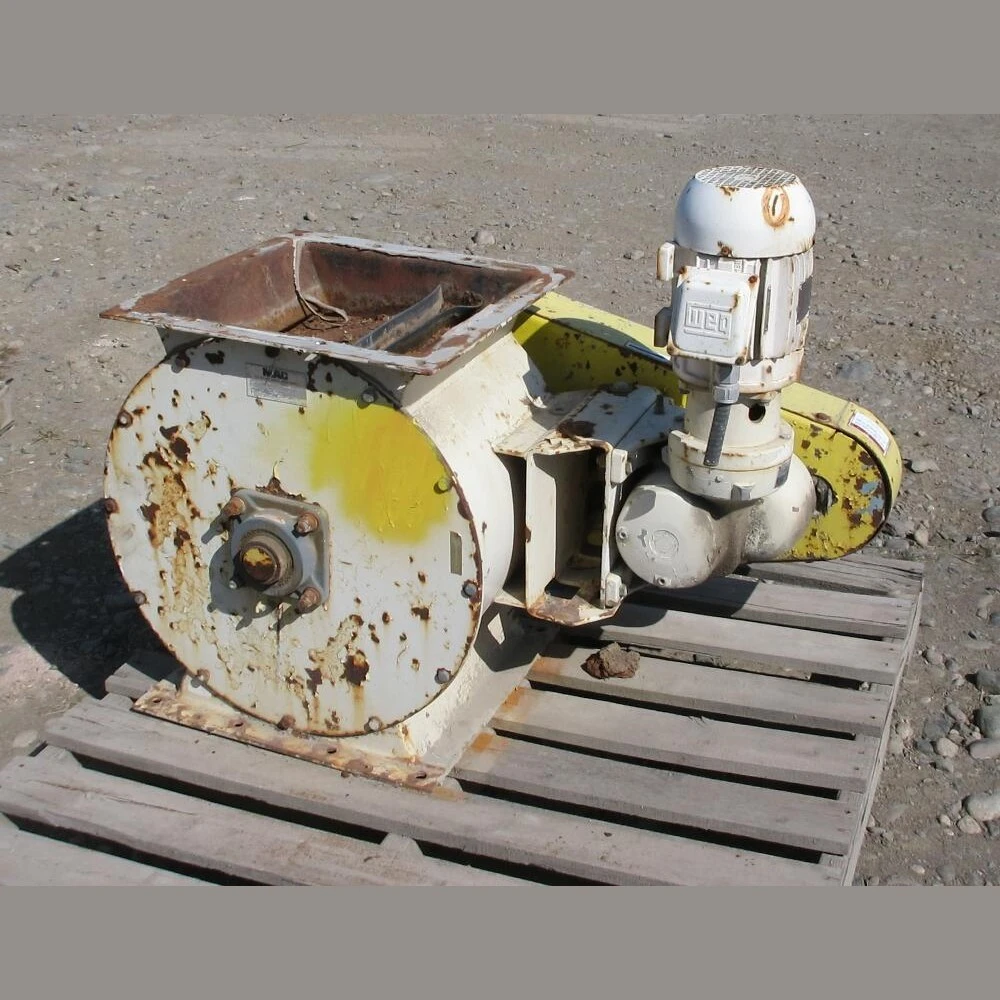

MAC HS 20x15 Rotary Valve

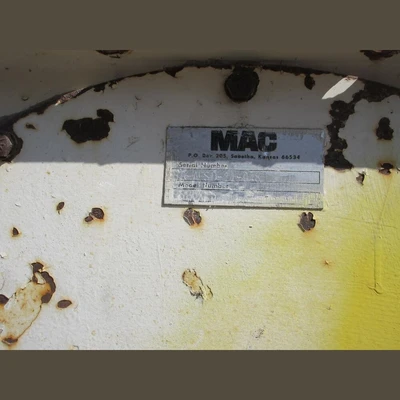

Make: MAC
Model: HS20X15
Size: 20in
Style: Air Lock
Serial Number: 89-ALSD-11-048
Inlet Dims: 14in x 14in
Discharge Dims: 14in x 14in

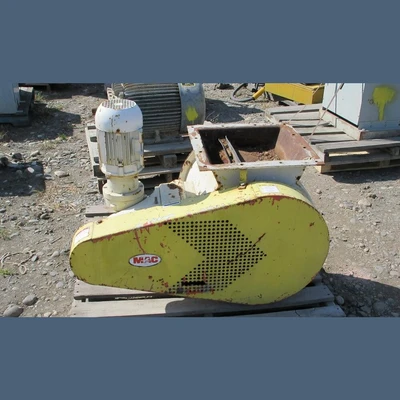

Drive: Chain

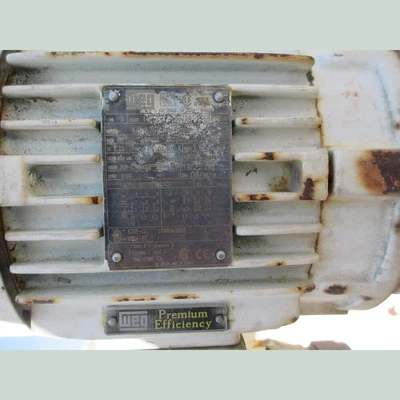

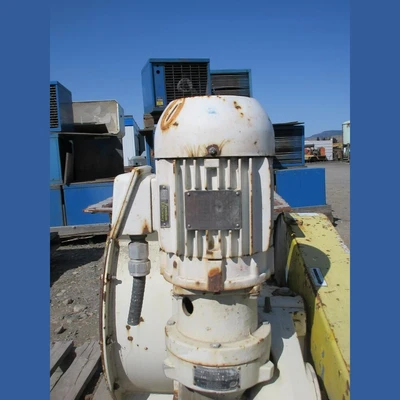

Motor: WEG
HP: 1 HP
RPM: 1765
Volts: 208-230/460 Volts
Phase: 3-Phase
Frame: 143TC TEFC

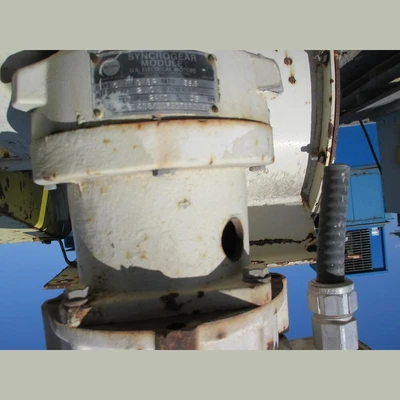

Reducer: U.S. Electric SyncroGear Module
Type: GWBP
Ratio: 36.6 to 1
Motor: WEG
HP: 1 HP
RPM: 1765
Volts: 208-230/460 Volts
Phase: 3-Phase
Frame: 143TC TEFC
HP: 1 HP
RPM: 1765
Volts: 208-230/460 Volts
Phase: 3-Phase
Frame: 143TC TEFC
Reducer: U.S. Electric SyncroGear Module
Type: GWBP
Ratio: 36.6 to 1
Type: GWBP
Ratio: 36.6 to 1
Overall Dimension:
Length: 46in
Width: 26in
Height: 34in
Length: 46in
Width: 26in
Height: 34in
Location: Savona, British Columbia, Canada
