USED 1999 Chevalier FSG-2060ADII, 1999, 3X AUTOMATIC, PROG. AUTO IDF
Overview
Description
20" Width 60" Length Chevalier FSG-2060ADII, 1999, 3X AUTOMATIC, PROG. AUTO IDF SURFACE GRINDER, EMC, COOLANT
Specifications

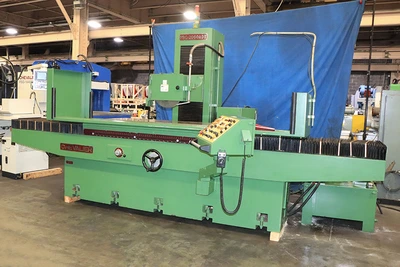

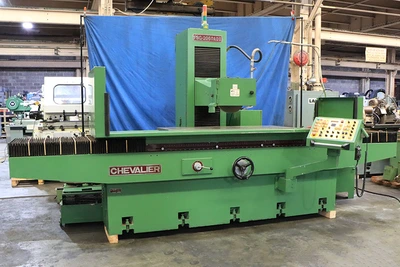

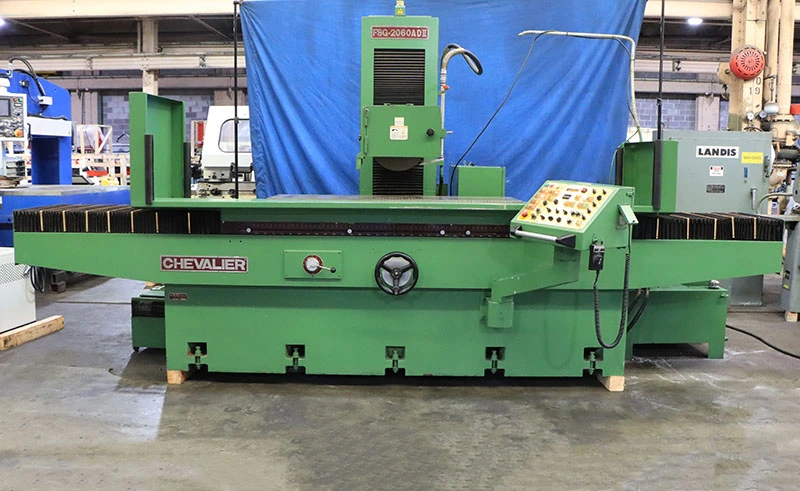

20" x 60" CHEVALIER MODEL FSG-2060ADII
"COLUMN TYPE" 3-AXIS AUTOMATIC SURFACE GRINDER
WITH PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
S/N: RB881001 NEW: 1999
SPECIFICATIONS:
TABLE SIZE:...................... 19.7" X 59.4"
MAXIMUM TABLE LOAD .............. 2,579 LBS
MAX. DISTANCE FROM TABLE TO
SPINDLE CENTERLINE ............. 28- 5/8"
POWER LONGITUDINAL TABLE SPEED .. 16' - 82' F.P.M.
MAX TABLE TRAVEL ................ 63 1/4"
MAX. CROSS TRAVEL OF COLUMN ..... 22"
AUTO CROSSFEED INCREMENTS ....... 1/8" - 1- 1/4"
POWER RAPID TRAVERSE RATE ....... 4.9' FPM
CROSSFEED, HANDWHEEL, PER REV. .. 0.2"
CROSSFEED, HANDWHEEL GRAD. ...... 0.001"
POWER RAPID TRAVERSE, VERTICAL .. 15.7" IPM
MPG LEAST INCREMENT ............. 0.0001"
GRINDING WHEEL SPINDLE SPEED .... 1,740 R.P.M.

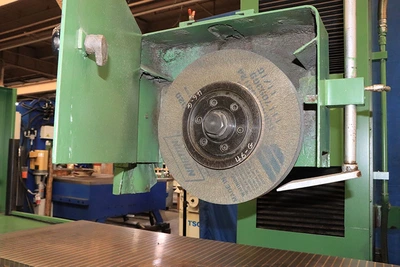

WHEEL SIZE:...................... 14" x 2"W x 5" BORE
APPROX. FLOOR SPACE REQUIRED .... 182" x 96" x 102" H
APPROXIMATE WEIGHT .............. 17,600 LBS
MACHINE FEATURES:
-TRAVELLING COLUMN TYPE CONFIGURATION,
WITH TABLE SUPPORTED IN FULL TRAVEL
TO AVOID OVERHANG.
-MICROPROCESSOR CONTROLLED, AUTO CYCLE OPERATION
-SURFACE, CRISSCROSS, PLUNGE AND SIDE GRINDING MODES
-MITSUBISHI AC SERVO DRIVE & MOTOR ON VERTICAL
AXIS & CROSS AXIS, WITH BALLSCREWS.
-LEAST INPUT INCREMENT IS 0.0001"

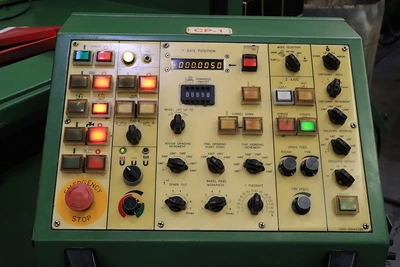

-CONTROL PANEL WITH DIGITAL DISPLAY
-MPG FOR VERTICAL AXIS, "Y" AXIS, WITH DIGITAL DISPLAY

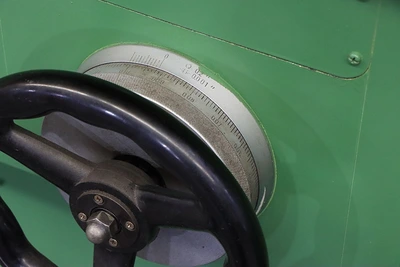

-HANDWHEEL FOR CROSS AXIS MANUAL MOVEMENT, 0.0001" GRADUATION
-LUBRICATION TANK & PUMP
-EXTERNAL HYDRAULIC TANK
-10 H.P. SPINDLE MOTOR/3/60/230-460 VOLTS
EQUIPPED WITH:

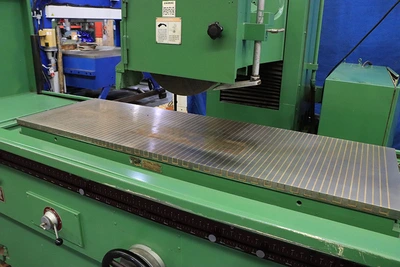

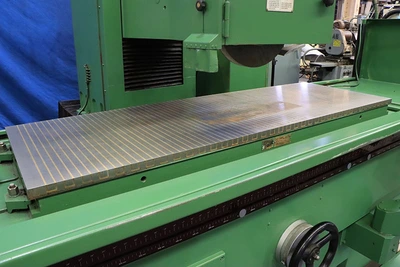

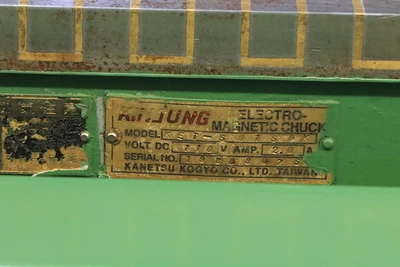

19.7" x 59.4" "KANETSU" "KET-50150K" ELECTRO-MAGNETIC CHUCK
(CHUCK IS IN EXCEPTIONAL/MINT CONDITION)
VARIABLE HOLD NEUTROFIER CONTROL, ON MACHINE CONSOLE
COOLANT TANK WITH PAPER FILTRAION
OPERATING MANUAL WITH ELECTRICAL SCHEMATICS
3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 480 VOLTS
VIDEO:
https://youtu.be/EX6eVMwhux4?si=Vv0hrO_SkhuXPGcK
** VERY QUIET SPINDLE & HYDRAULICS **
** SMOOTH & QUIET AXES MOVEMENTS **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERIOR CONDITION & APPEARANCE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
