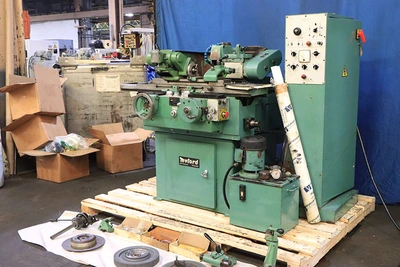

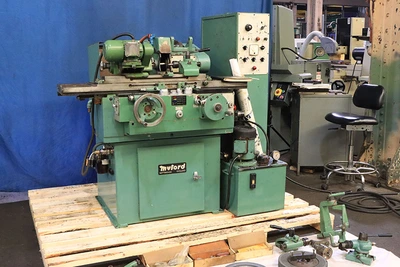

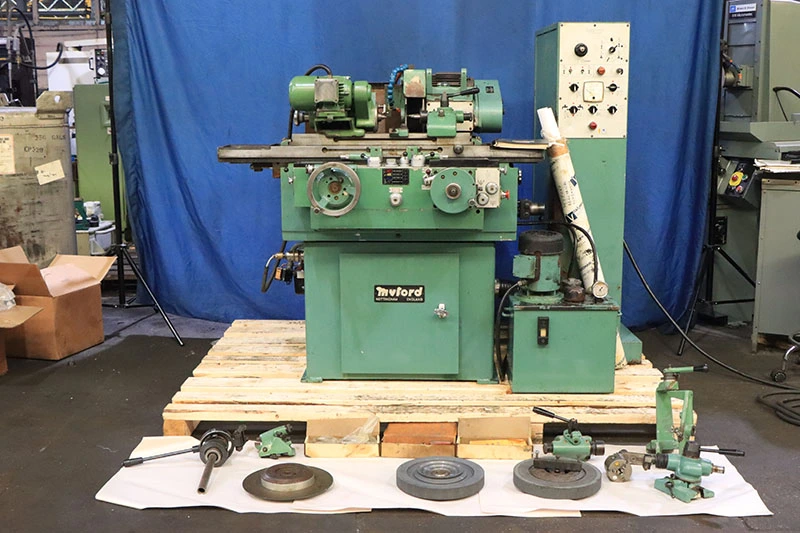

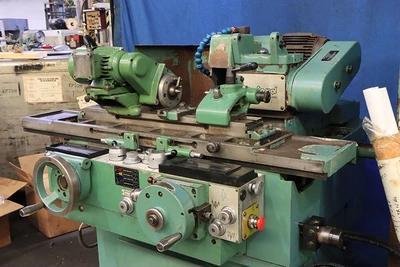

USED 1997 Myford MG12-HPM, 1997, FULL AUTO CYCLE, DUAL RATE PLUNGE

5" Swing 12" Centers Myford MG12-HPM, 1997, FULL AUTO CYCLE, DUAL RATE PLUNGE OD GRINDER, 12" WHEEL,

      5" X 12" MYFORD "HIGH-PRECISION"

          "MADE IN ENGLAND **

      HYDRAULIC CYLINDRICAL GRINDER

** SWING DOWN I.D. ATTACHMENT AVAILABLE **

MODEL: MG12-HPM     S/N: HPM-169147     NEW: 1997

MAXIMUM GRINDING DIAMETER .............. 3"

SWING OVER TABLE ....................... 5"

CAPACITY BETWEEN CENTERS ............... 12"

MAXIMUM TABLE TRAVEL ................... 13-3/4"

TABLE SWIVELS EITHER WAY ............... 10°

TABLE TRAVEL PER REV. OF HANDWHEEL ..... 0.44"

HYDRAULIC TABLE TRAVERSE ............. 0 TO 120" IPM

DWELL (CARRIAGE) ..................... 0 TO 8 SECONDS

WHEELHEAD (ALL GRADUATIONS,

 ON WORK DIAMETER):

TOTAL TRAVEL BY FEED SCREW ............. 3-7/8"

HYDRAULIC RAPID RETRACTION ............. 1-1/8"

INFEED PER REV. OF HANDWHEEL ........... 0.04"

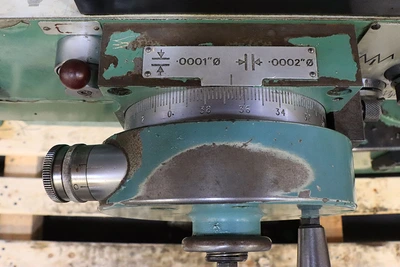

WHEEL FEED GRADUATION .................. 0.0002"

FINE FEED TO DEAD STOP ................. 0.00005"

TOTAL PLUNGE INFEED .................... 0.100"

PLUNGE FEED RATE, MAXIMUM .............. 0.125" IPM

PLUNGE FEED RATE, MINIMUM .............. 0.0025" IPM

INTERMITTENT INFEED, COARSE, MAXIMUM ... 0.002"

INTERMITTENT INFEED, FINE, MINIMUM ..... 0.00005"

SPARKOUT ............................. 0 TO 50 SECONDS

WHEEL SPEEDS (2) ..................... 1830 & 1988 RPM

GRINDING WHEEL ...................... 12" x 1-1/2" x 5"

MINIMUM WHEEL DIAMETER, FOR ZERO

 WORK DIAMETER ......................... 10"

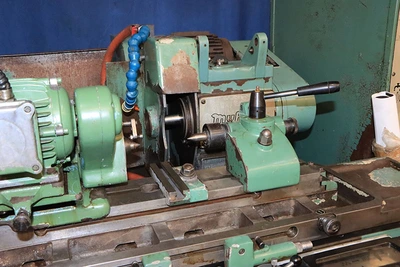

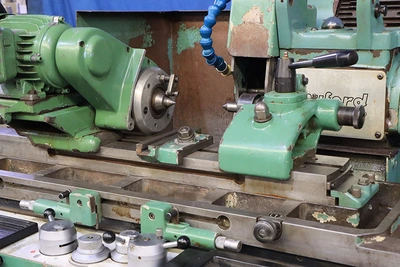

WORKHEAD:

SPINDLE SPEEDS, INFINITELY VARIABLE .... 50 TO 900 RPM

CAPACITY THRU STANDARD DRAW TUBE ....... 3/4"

MAXIMUM COLLET CAPACITY ................ 3/4"

APPROXIMATE WEIGHT ..................... 2,226 LBS

MACHINE FEATURES:

HYDRAULIC TABLE TRAVERSE

AUTOMATIC INFEED

PLUNGE INFEED

VARIABLE DWELL @ EACH END OF TABLE MOVEMENT

AUTOMATIC HYDRAULIC RAPID ADVANCE AND RETRACTION

  OF GRINDING WHEELHEAD

SPARKOUT TIMER (1 TO 50 SECONDS)

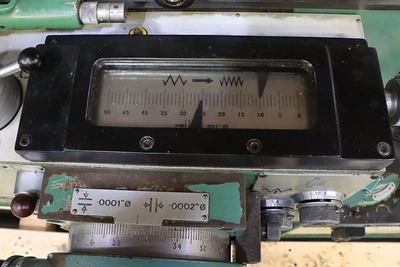

VISUAL INDICATION OF FEED - A LARGE SCALE MOUNTED ON

  THE TOP OF THE FRONT CONTROL CONSOLE PERMITS

  MONITORING OF THE FEED CYCLE.

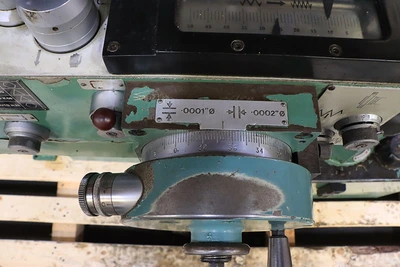

DEPTH OF FEED ADJUSTMENT CONTROL (GRADUATED .0001")

AUTOMATIC CYCLE/MANUAL OPERATION SELECTOR

COARSE/FINE FEED CHANGEOVER

INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS

AUTOMATIC LUBRICATION FOR WHEELHEAD AND CARRIAGE WAYS

SEPERATE ELECTRICAL CONSOLE CONTROL

EQUIPPED WITH:

COOLANT SYSTEM

ACCESSORIES

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
