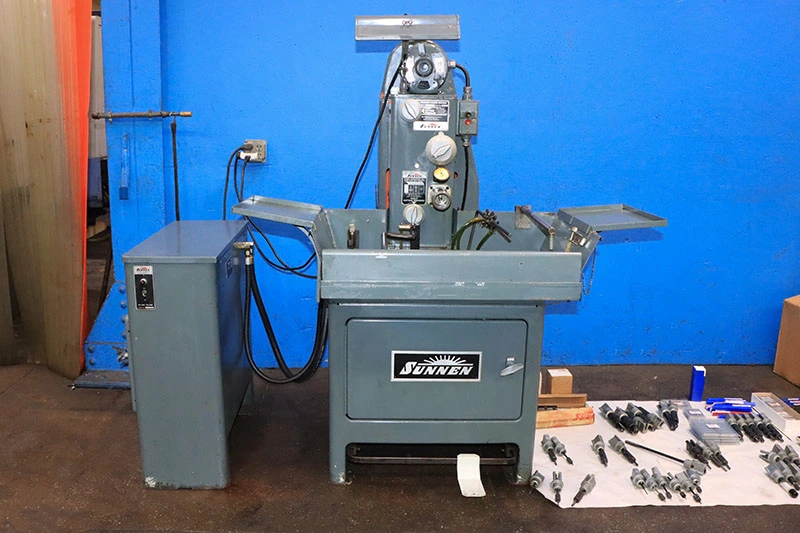

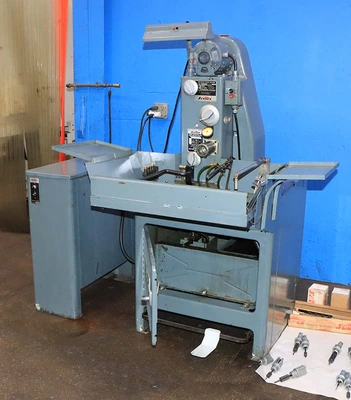

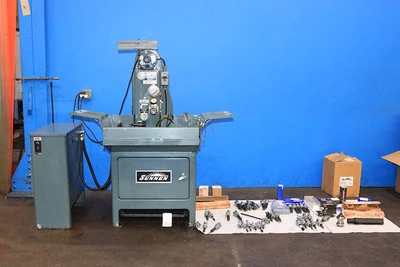

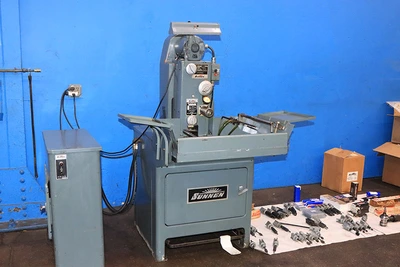

USED 1984 Sunnen MBB-1660K, 1984, 1PH/115V, PFN-150K FILTER UNIT

6.5" Dia 16" Stroke Sunnen MBB-1660K, 1984, 1PH/115V, PFN-150K FILTER UNIT HONE, TOOLING PACKAGE

SUNNEN HONE, SINGLE PHASE/115 VOLTS,

WITH "PFN 150" OIL FITRATION SYSTEM"

MODEL: MBB-1660-K     S/N: 2EI-86188    NEW: 1984

I.D. RANGE ........... 0.060" TO 6.500"

LENGTH RANGE ......... HONES BORES UP TO 16" IN LENGTH,

                        DEPENDING ON BORE DIAMETER

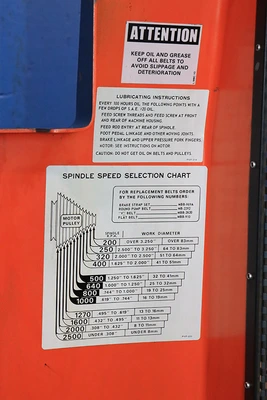

SPINDLE SPEEDS (12) .. 200, 250, 320, 400, 500, 640,

                        800, 1,000, 1,270, 1,600,

                        2,000 AND 2,500 RPM

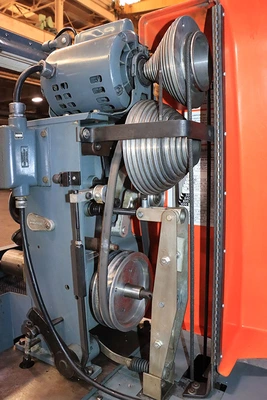

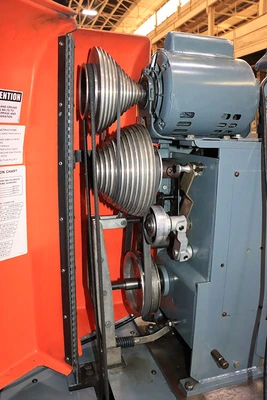

SPINDLE MOTOR ........ 1/2 HP

SPINDLE BRAKE ........ SELF-ENERGIZING BAND-TYPE

FLOOR SPACE .......... 30"W X 60"D X 63"H

APPROXIMATE WEIGHT ... 630 LBS

MACHINE FEATURES:

FULL LENGTH FOOT PEDAL

DOOR FOR EASY ACCESS TO HONING OIL RESEVOIR

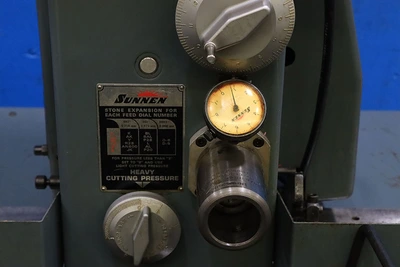

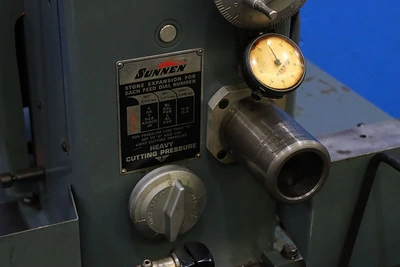

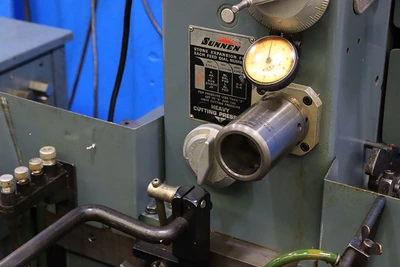

DIAL INDICATOR

TOOLING:

Adaptors:

K8-A BL8-A Y8-A qty:3

K3-A K4-A k5-A BL3-A BL4-A BL5-A qty:6

D2-8 qty:9

K10-A BL10-A Y10-A qty:3

K11-A Bl12-A Y12-A qty:2

K8-A BL8-A Y8-A qty:2

K16-A BL16-A Y16-A qty:5

K20-A BL20-A Y20-A qty:1

AK20-A BLA20-A AAY20-A qty:6

Truing sleeves:

St-1875 qty:1

ST-2500 qty:1

ST-1600/ST1625 qty:1

S-869 qty:1

Mandrel w/ sleeve:

2G-P28-1250WB Qty:1

2G-P28-1000VA QTY:1

Mandrel no sleeve:

2H-P28-2500WG qty:1

2H-P28-1875WE qty:1

2G-P28-1625WD qty:1

EQUIPPED WITH:

SUNNEN PFN-150K OIL FILTRATION UNIT, S/N: 4D1-2987,

 1 PHASE/115 VOLTS/8.8 FLA

EXTRA NEW FILTERS FOR THE PFN-150K

TOOLING AS DESCRIBED ABOVE, AND AS SHOWN IN THE PHOTOS

Link to Video: https://youtu.be/mHo_xq5v4ws?si=AxbrKchJb8uQ9v59

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **

* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *

FOR MORE INFORMATION: Call Andy at 973-497-7600
