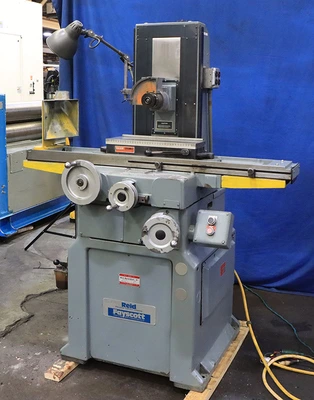

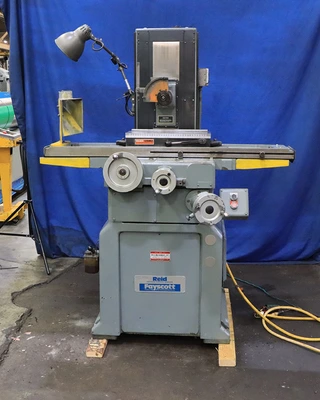

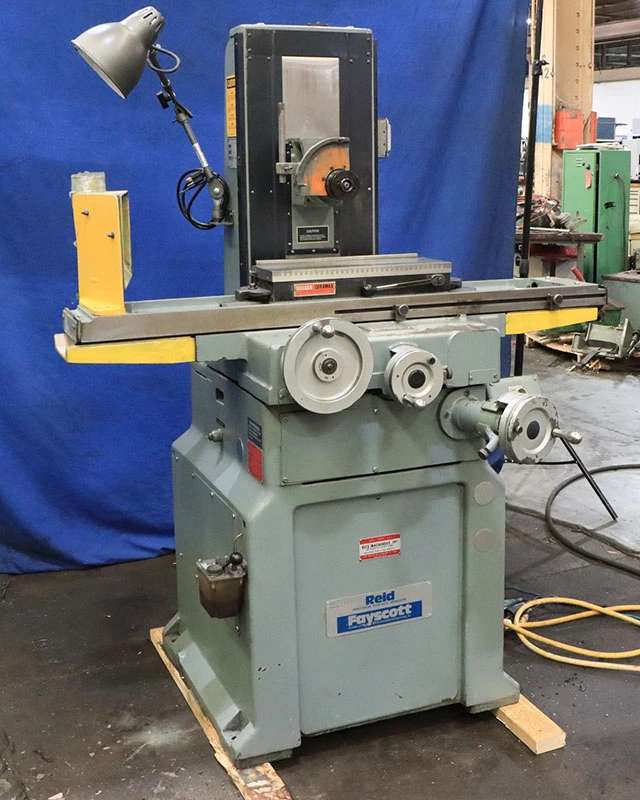

USED 1980 Reid 618-HB, CAST IRON HEAVY BASE, POPE SPINDLE

6" Width 18" Length Reid 618-HB, CAST IRON HEAVY BASE, POPE SPINDLE SURFACE GRINDER, WALKER PMC

 6" X 18" REID MODEL 618-HB PRECISION

          (MADE IN USA)

   HAND FEEDTABLE SURFACE GRINDER

"THE "HB" IS ESPECIALLY RECOMMENDED FOR

 TOOL & DIE WORK WHICH DEMANDS DEGREES

 OF ACCURACY AND SMOOTHNESS OF FINISH

 BEYOND USUAL METAL-WORKING STANDARDS"

MODEL: HB      S/N: 21985      NEW: 1980

WORK CAPACITY ............................. 6" X 18"

WORK HEIGHT (UNDER 7" WHEEL TO TABLE) ..... 15"

MAXIMUM LONGITUDINAL TRAVEL ............... 20"

MAXIMUM CROSS TRAVEL ...................... 7"

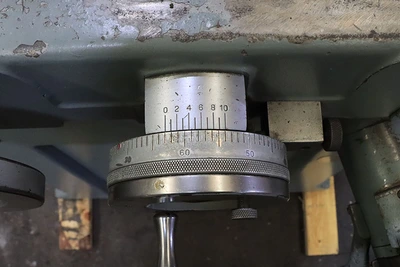

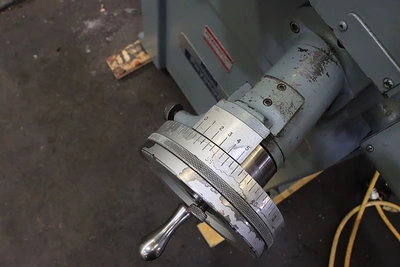

CROSSFEED HANDWHEEL, GRAD. ................ 0.0005"

VERTICAL HANDWHEEL GRAD. .................. 0.0005"

TRAVEL PER REV. OF HANDWHEEL, TABLE ....... 2- 5/16"

TRAVEL PER REV. OF HANDWHEEL, CROSS ....... 0.100"

TRAVEL PER REV. OF HANDWHEEL, VERTICAL .... 0.050"

STD. WHEEL SIZE ...................... 7" x 1/2" x 1.25"B

FLOOR SPACE ........................... 75" X 46" X 68"H

APPROXIMATE WEIGHT .................... 2,200 LBS

MACHINE FEATURES:

HEAVY BASE, CAST IRON CONSTRUCTION, PROVIDES

 FOR EXTREME STABILITY AND LOW VIBRATION LEVELS,

 FASCILLATING ULTRA-PRECISE, DEFLECTION-FREE

 GRINDING.

CROSSFEED IS PROVIDED BY A PRECISION BALLSCREW

"TEFLON" ON BOTH THE LONGITUNAL & CROSS WAYS,

 INCREASES THE WAYS LIFE AND MAKES FOR LOW

 FRICTION "FEEL" & "ACTION"

TABLE MOVES ON A VEE & A FLAT WAY

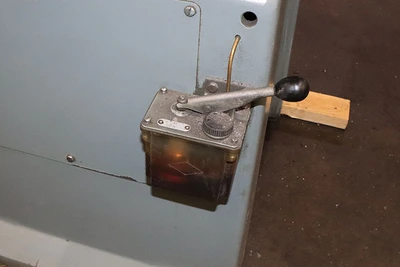

"BIJUR" ONE-SHOT LUBRICATOR

EQUIPPED WITH:

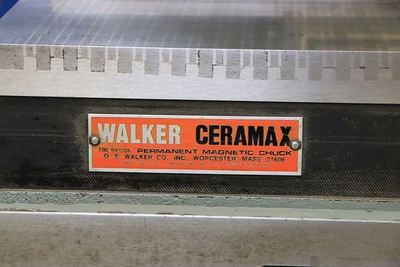

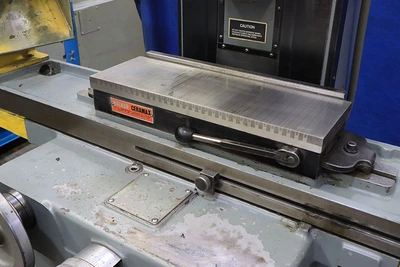

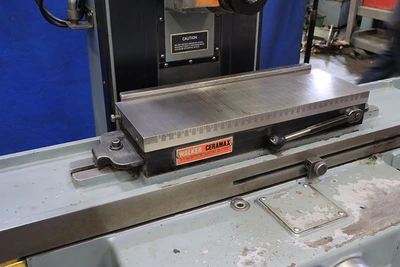

6" X 18" O.S. WALKER "CERAMAX" FINE-DIVISION

  PERMANENT MAGNETIC CHUCK

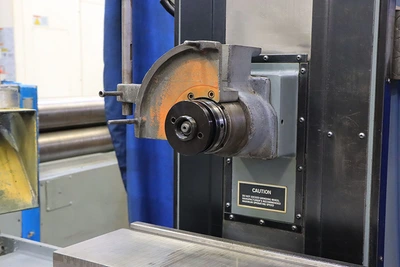

"POPE" 1 H.P. 3/60/208 VOLTS SUPER-PRECISION"

  DIRECT DRIVE SPINDLE

MACHINE IS PRESENTLY WIRED FOR 208 VOLTS

Link to video: https://youtu.be/a1ysF1CRqew?si=_g93BGG-5pqdsn-2

* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *

** ORIGINAL PAINT - MINT CONDITION & APPEARANCE  **

FOR MORE INFORMATION: Call Andy at 973-497-7600
