USED 2022 CARRIER 50TCQD09A2A6A0A0G0

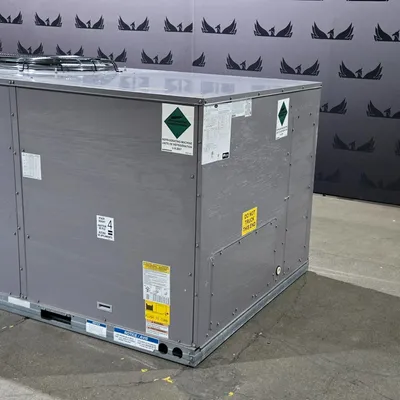

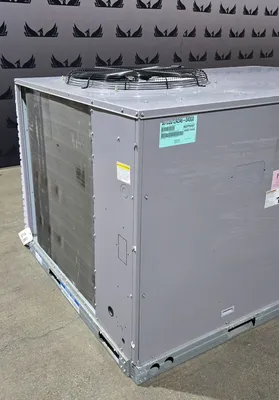

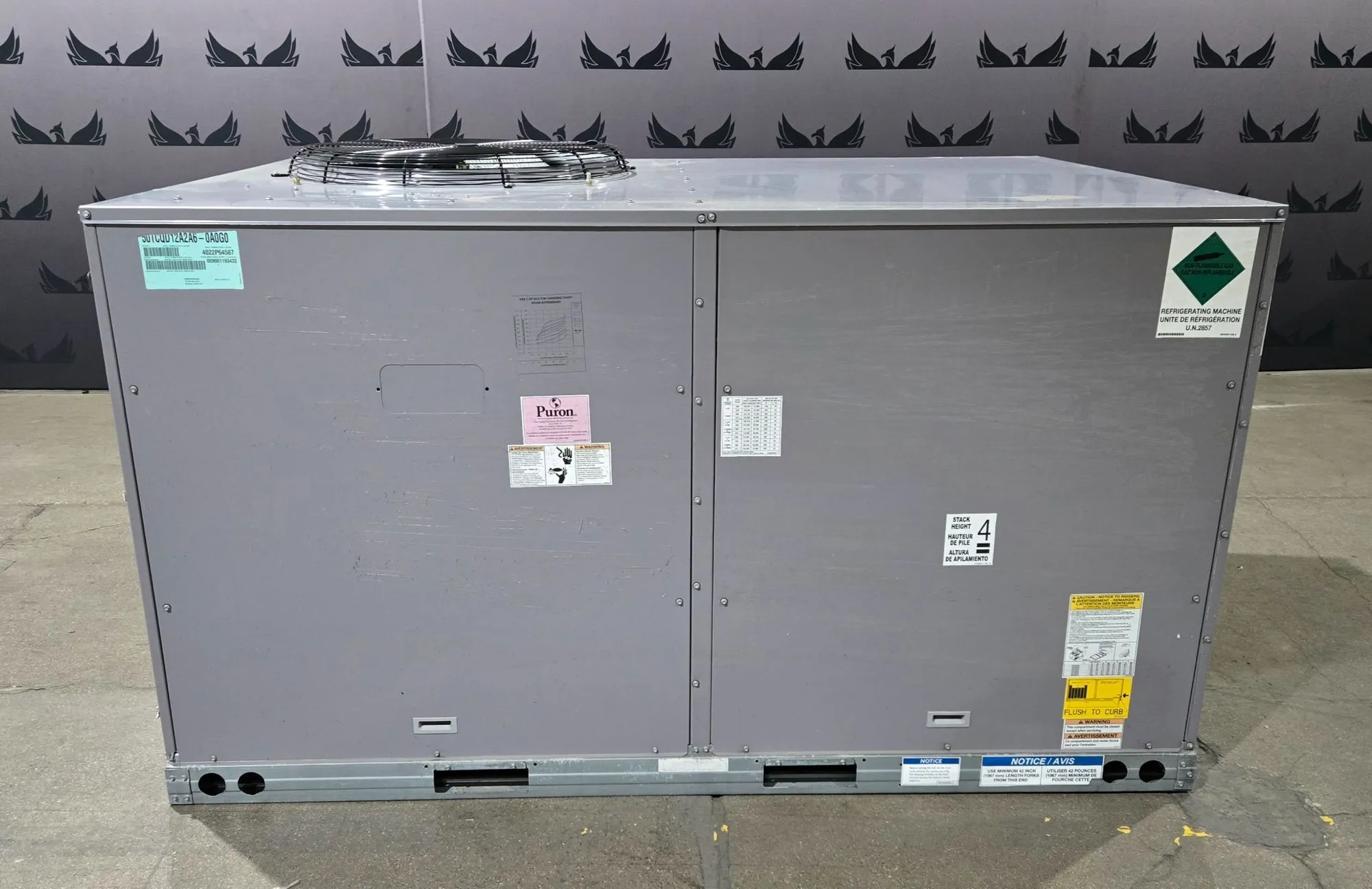

This listing is for a USED Carrier WeatherMaker 50TCQD09A2A6A0A0G0. This packaged rooftop unit provides heating and cooling using an integrated heat pump system with R410A refrigerant, delivering conditioned air through a self-contained cabinet with dual refrigeration circuits and 460V 3-phase power for commercial HVAC applications.

Manufacturer: Carrier Corporation
Series: WeatherMaker
Model: 50TCQD09A2A6A0A0G0
Condition: USED
YOM: Oct 2022

Equipment Type: Packaged Rooftop HVAC Unit
System Type: Heat Pump

Cooling Capacity: 99,000 BTU/hr
Cooling Capacity (kW): 28.9
Heating Capacity: 96,000 BTU/hr
Heating Capacity (kW): 28.1

Refrigerant Type: R410A
Refrigeration Circuits: 2

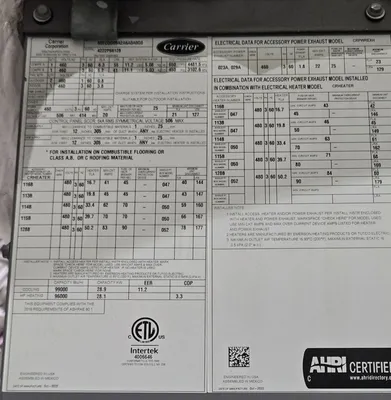

Voltage: 460 VAC
Phase: 3 Phase
Frequency: 60 Hz

Compressor Quantity: 2
Compressor RLA: 6.3 A / 6.2 A
Compressor LRA: 55 A / 41 A

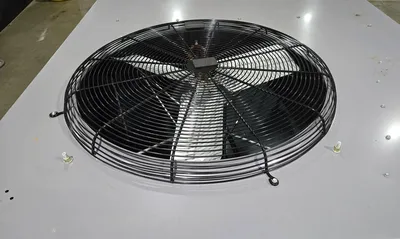

Outdoor Fan Motors: 2
Outdoor Fan Motor FLA: 0.8 A each

Indoor Supply Motor FLA: 3.8 A

Minimum Circuit Ampacity (MCA): 20 A
Maximum Overcurrent Protection: 25 A
Disconnect FLA: 21 A
Disconnect LRA: 127 A

EER: 11.2
COP: 3.3

Test Pressure High Side: 650 PSIG
Test Pressure Low Side: 450 PSIG

Certification: AHRI Certified, ETL Listed

Function: Packaged rooftop unit providing heating and cooling for commercial HVAC systems
