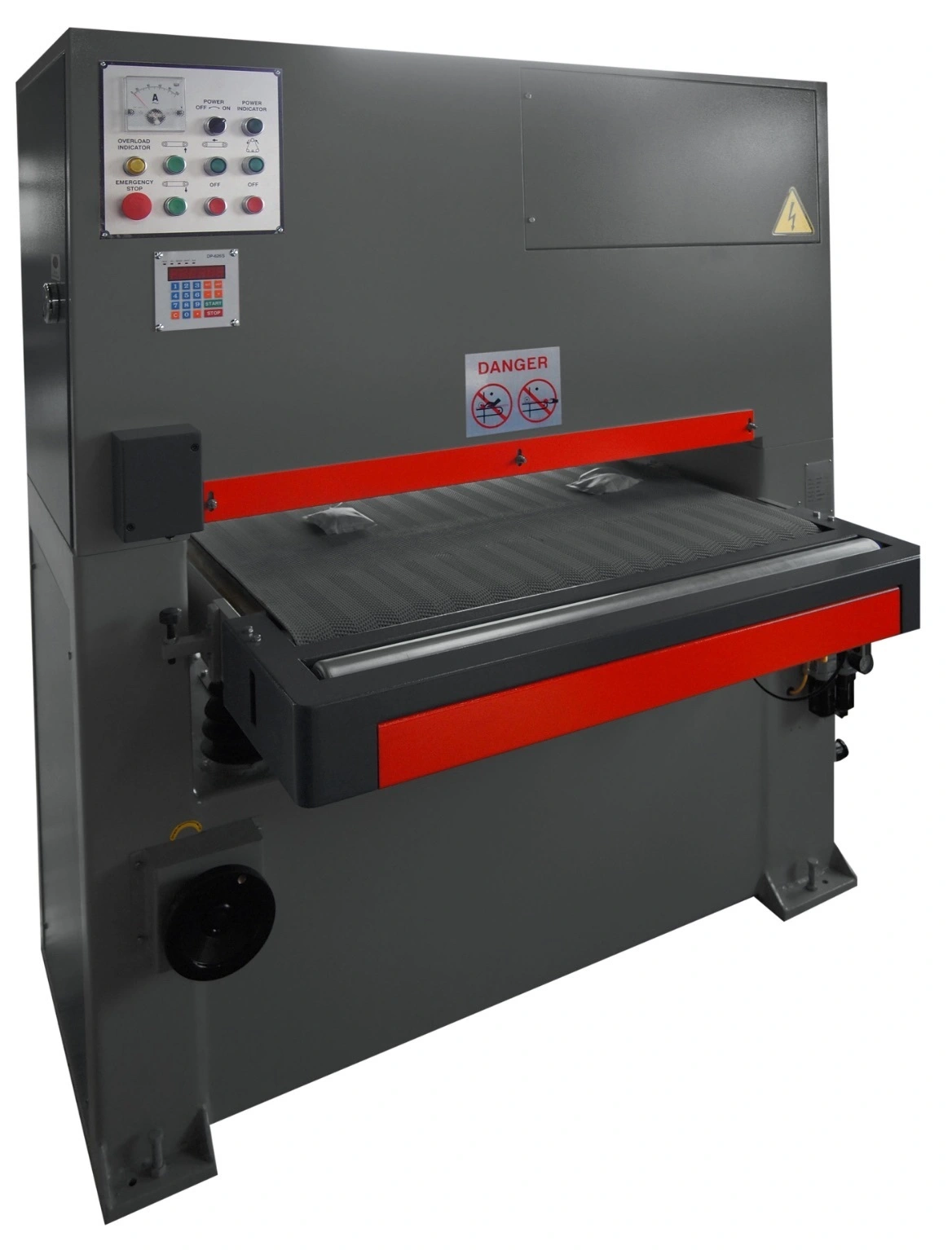

NEW GMC FP-3760T

Specifications: Model FP-3760T #7739
Max. Part Width 37”
Abrasive Belt Size 37” x 60”
Contact Roller Size 8” Dia.
Passline Height 31” – 37”
Max. Thickness Capacity
Min. workpiece length
Max. workpiece weight
5-1/8” Min 12”, need a fixture for smaller parts 275LBS
Conveyor Drive Speeds 16-66 FPM
Infeed Conveyor Length 20”
Dust Collector Capacity
Outlet of dust hood 1,800 CFM 6”
Main Motor 20 HP, 230V / 460V, 3-Ph
Conveyor Motor 2 HP, 230V / 460V,3-Ph
Table Lifting Motor 1/4 HP, 230V / 460V, 3-Ph
Amperage draw
Net Weight, approx.
Shipping weight 75A on 220V, 40A on 440V 2,650 LBS 2,950 LBS
Machine Dimensions, LxWxH
Machine shipping dimensions LWH 63” x 63” x 70” 65” x 65” x 72”

Standard Features:
· Made in Taiwan
· Computerized programmable material thickness control
· Abrasive belt size: 37” x 60”
· Motorized Table Lift with computer display
· Variable Speed Conveyor
· Conveyor Forward & Reverse
· Belt Safety Overtravel Switches
· Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts
· 4-Jackscrew Table Support
· Double Infeed & Outfeed Pinch Rolls with protective guards
· Conveyor Belt Tracking System
· Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
· Load Meter indicates percentage of full motor loads
· Belt change door electrically interlocked for safety purpose
· Air tensioning of belt for accurate tensioning & compensation of belt stretch
· Quick release sanding head support for fast belt change
· Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
· Emergency stops from almost any point
· Noise level bellows 82 dba
· Operation manual, control tags, danger signs, and warning labels in English on machine
· 208/230V, 3-Phase , 440V/480V/3phase is optional
· One year Industrial Warranty for parts
