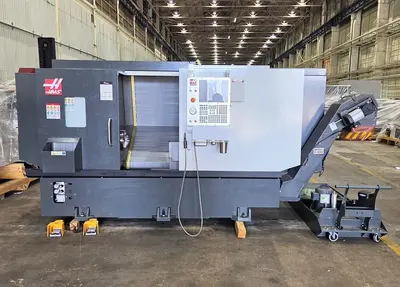

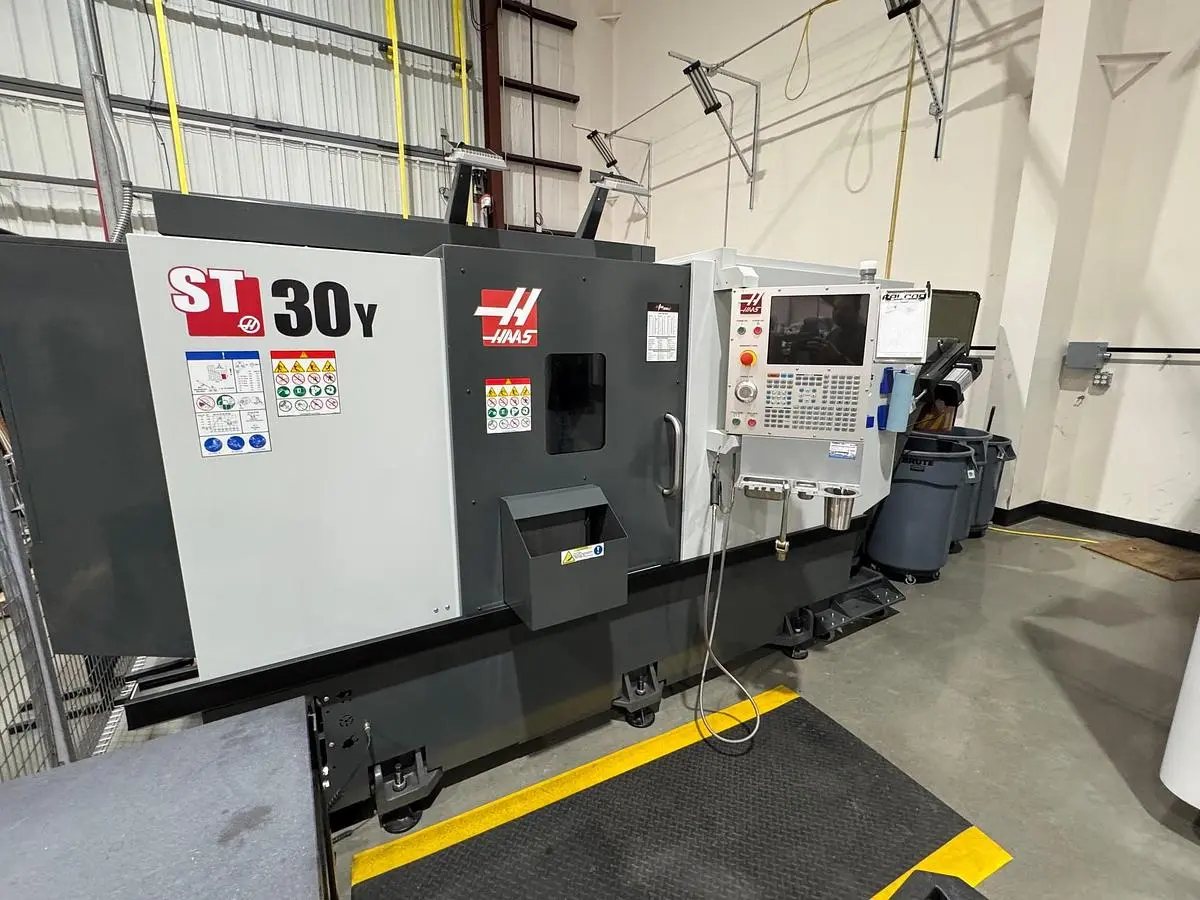

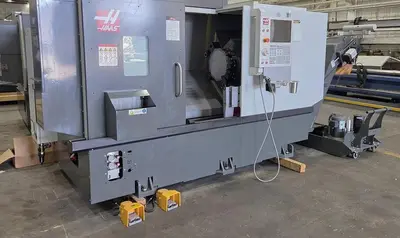

USED 2021 HAAS ST-30Y

Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
Programmable Tailstock
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Parts Catcher
Tool Presetter
Visual Part Programming System
Spindle Orientation
Rigid Tapping
User Definable Macros
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
Coolant System with Tank & Pump

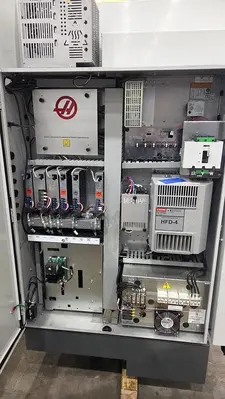

Wired 220V Electrics

The 2012 Haas ST-30Y is a versatile 4-axis CNC lathe offering robust milling capabilities. Equipped with a Haas CNC Control system, it features a 10" 3 Jaw Hydraulic Chuck, accommodating workpieces with a maximum swing of 31.75", a turning diameter of 18", and a machining length of 23". The machine is designed to handle bars up to 3" in diameter, making it suitable for a variety of industrial applications.

The machine boasts a C-axis with full rotation capabilities, adding flexibility for complex tasks. It features travel capabilities of 12.5" on the X-axis, +/- 2" on the Y-axis, and 26" on the Z-axis. Spindle speeds vary from 30 to 3,400 RPM, driven by a powerful 30 HP motor, while the rotary tool speed reaches up to 4,000 RPM powered by a 5 HP rotary motor. With a 12 station turret, rapid traverse rates of up to 945 IPM, and additional features like a chip conveyor, parts catcher, tool presetter, and tailstock, this machine offers efficiency and precision in demanding environments.

With machine dimensions of 171" x 90" x 83" and a weight of 14,300 lbs, the Haas ST-30Y incorporates practical design elements for industrial settings. Its comprehensive set of features and robust construction make it an excellent choice for operations requiring dependable performance and precision.

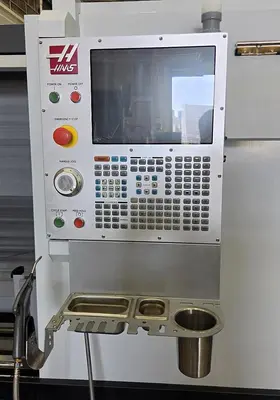

Machine Control: Haas CNC Control
Chuck Size: 10" 3 Jaw Hydraulic
Maximum Swing: 31.75"
Maximum Turning Diameter: 18"
Maximum Machining Length: 23"
Maximum Bar Capacity: 3"
X-Axis Travel: 12.5"
Y-Axis Travel: +/- 2.0"
Z-Axis Travel: 26"
C Axis Spindle Rotation: .001 Full C Axis Rotation
Spindle Nose / Spindle Bore: A2-6" / 3.5"
Spindle Speeds: 30 - 3,400 RPM
Spindle Motor: 30 HP
Rotary Tool Speed / Rotary Motor: 4,000 RPM / 5 HP
Number of Turret Positions: 12 Station Turret
Rapid Traverse Rates X, Y / Z: 472 IPM / 945 IPM
Tailstock Body Travel / Taper: 20" / MT #4
Machine Dimensions: 171" x 90" x 83"
Machine Weight: 14,300 lbs.
