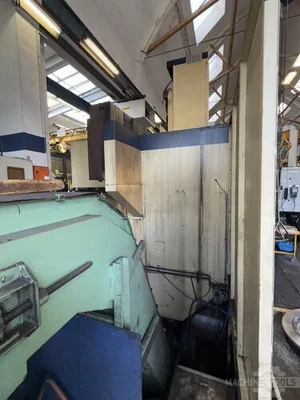

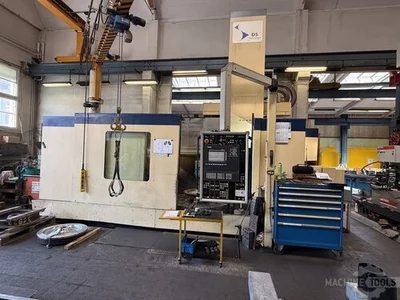

USED 1998 DS DORRIES SCHARMANN VCE 2000 FMC
Overview
Description
Live tools 30 kw and 3000 Rpm with Sk50
Full C-Axis 360.000
Work load 10.000 Kg
Grinding spindel 30 kw and 3000 Rpm with Sk50
Chip conveyor
Tool holders included max 400 mm height
Specifications
| Swing | 2,000 mm | 78.74" |
|---|---|---|
| Power | 30 kW | 40.2 hp |
| Max RPM | 280 RPM | 280 RPM |
| Turning Dia | 2,000 mm | 78.74" |
| Live Tooling | Yes | Yes |
| Dimensions | 10200 x 8200 x 8200 mm | 10200 x 8200 x 8200 mm |
| Weight | 42000 kg | 42000 kg |
Max. turning Ø: 2000 mm
Table Ø: 1600 mm
Horizontal movement support: 1150 mm
Stroke ram left: 995 mm
ATC / revolver: 24
Speeds / ranges: 280 Rpm
Power: 60 kW
Maximum turning height: 995 mm
C-Axis: 360000 °
Power live tools: 30 kW
Length: 10200 mm
Width: 8200 mm
Height: 8200 mm
Weight: 42000 kg
Equipped With
Live tools 30 kw and 3000 Rpm with Sk50
Full C-Axis 360.000
Work load 10.000 Kg
Grinding spindel 30 kw and 3000 Rpm with Sk50
Chip conveyor
Tool holders included max 400 mm height
Max. turning Ø: 2000mm
Table Ø: 1600mm
Horizontal movement support:1150mm
Stroke ram left: 995mm
ATC / revolver: 24
Speeds / ranges: 280Rpm
Power: 60kW
Maximum turning height: 995mm
C-Axis: 360000°
Power live tools: 30kW
Length: 10200mm
Width: 8200mm
Height: 8200mm
Weight: 42000kg
